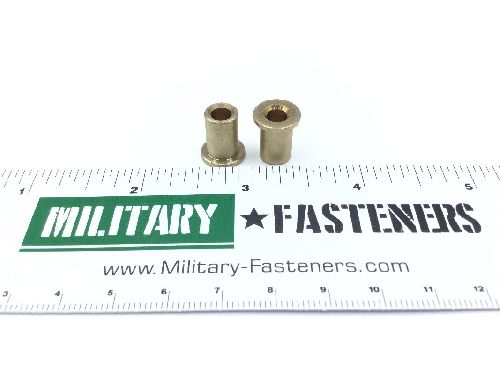

NAS77A3-046 Sleeve Bushing

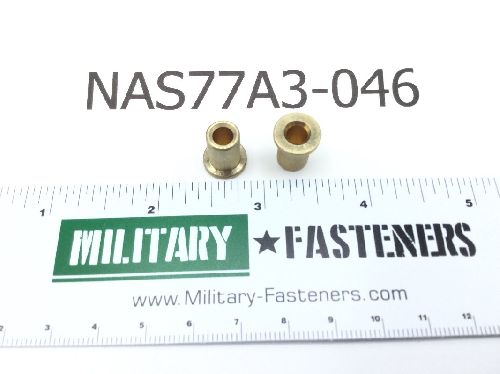

NAS77A3-046 Sleeve Bushing (2)

NAS77A3-046 Sleeve Bushing (3)

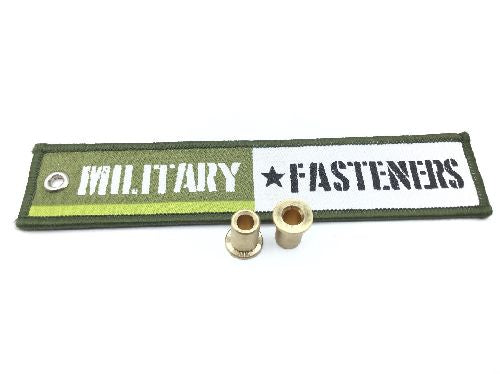

NAS77A3-046 Sleeve Bushing (4)

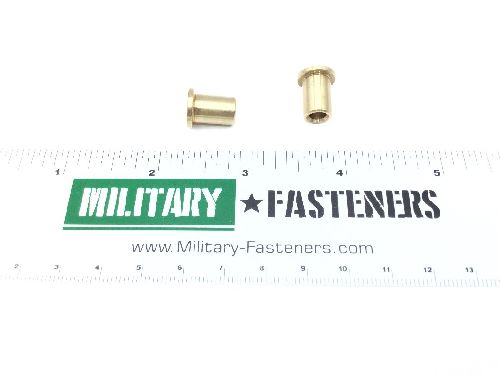

NAS77A3-046 Sleeve Bushing (5)

NAS77A3-046 Sleeve Bushing (6)

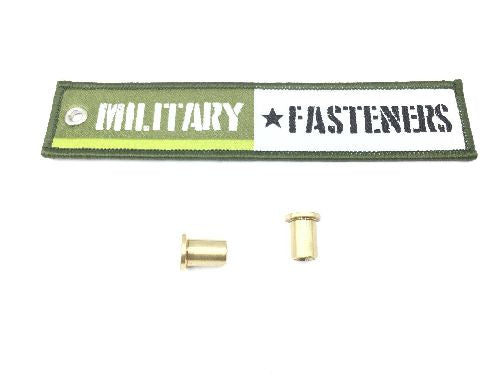

NAS77A3-046 Sleeve Bushing (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS77A3-046 Sleeve Bushing

Product Series: NAS
ECCN: EAR99
Schedule: 7412.20.0000

Price per Unit $6.30

Units per Pack 10

Price per Pack $63.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $63.00

Add item to quote

Material

Copper alloy 642

Overall Length

0.522 inches

Body Inside Diameter: Between 0.19 inches and 0.1915 inches
Body Outside Diameter: Between 0.3131 inches and 0.3136 inches
Corner Shape: Square all corners
End Application: F-22 raptor aircraft
Flange Outside Diameter: Between 0.427 inches and 0.447 inches
Flange Width: 0.0620 inches
Material Specification: Qq-c-465 federal specification single material response
Part Name Assigned By Controlling Agency: Bronze & copper cres steel press fit bushing-flanged
Style Designator: external flange one end solid
