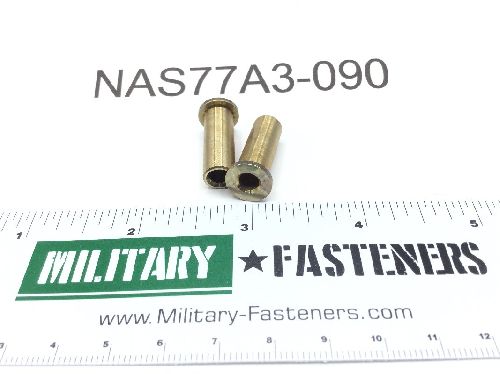

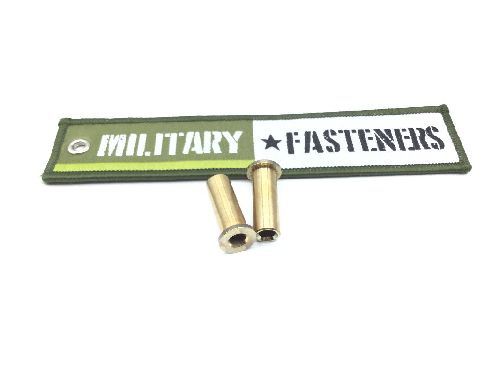

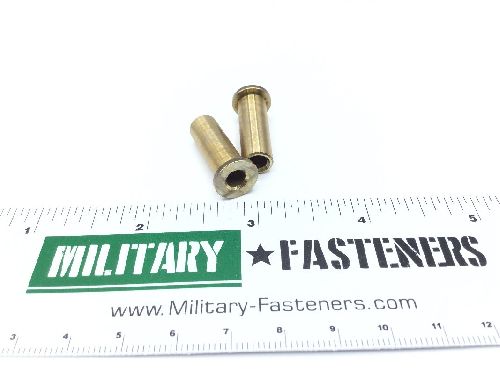

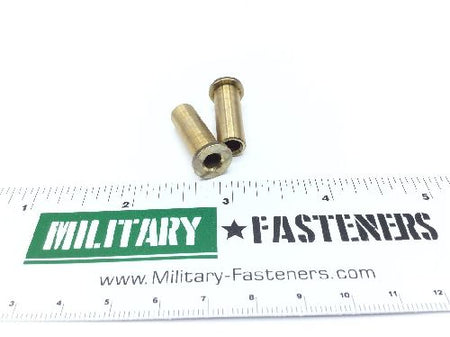

NAS77A3-090 Sleeve Bushing

Product Series: NAS
ECCN: EAR99
Schedule: 8483.30.8090

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper

Overall Length

Between 0.9520 inches and 0.9670 inches

Body Inside Diameter: Between 0.1900 inches and 0.1915 inches
Body Outside Diameter: Between 0.3131 inches and 0.3136 inches
Corner Shape: Square outside right corner
Flange Outside Diameter: Between 0.4270 inches and 0.4470 inches
Flange Width: Between 0.0570 inches and 0.0620 inches
Material Specification: Qq-c-00465 federal specification 1st material response or ams 4640 assn standard 2nd material response
Specification Data: 80205-nas77 professional/industrial association standard
Style Designator: external flange one end 22c solid
Surface Finish: 100.0 microinches
