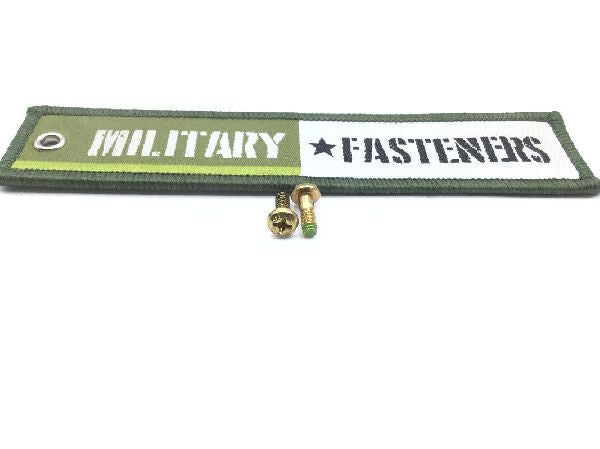

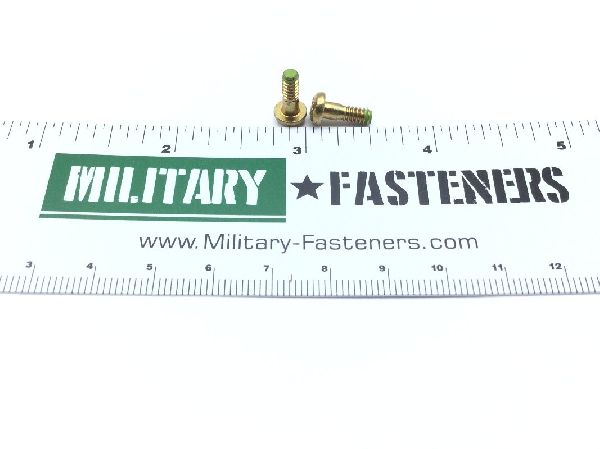

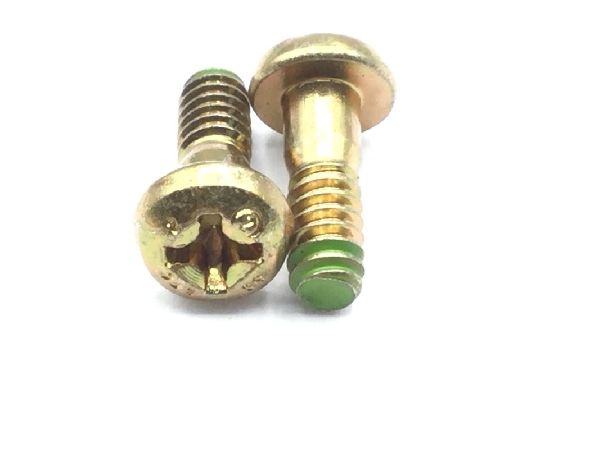

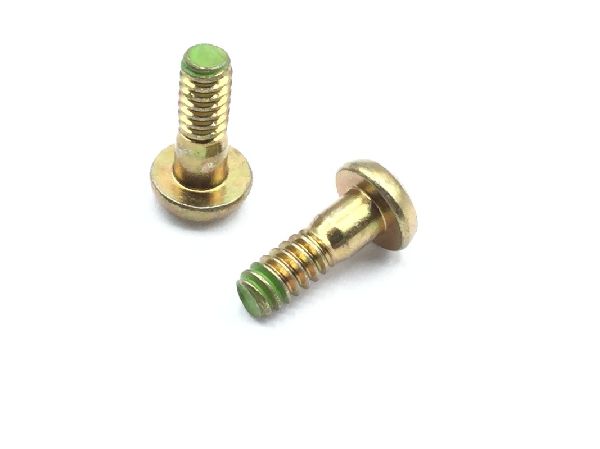

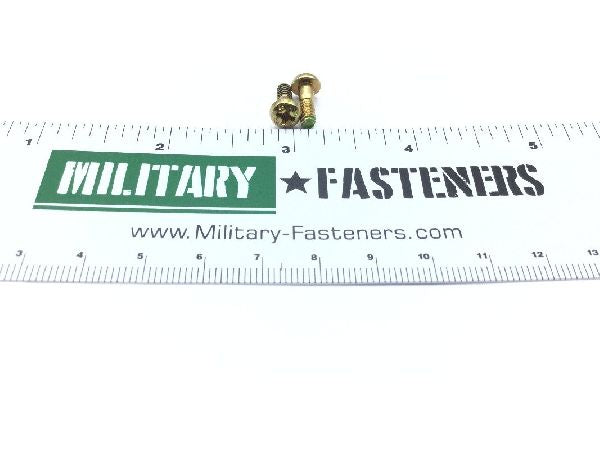

NAS7801-2 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Pan

Material

Iron alloy 660

Surface Treatment

Class 2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 0.386 inches and 0.416 inches
Grip Diameter: Between 0.1365 inches and 0.1375 inches
Grip Length: Between 0.115 inches and 0.135 inches
Head Height: Between 0.087 inches and 0.097 inches
Iii Part Name Assigned By Controlling Agency: Navy special project
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas7801 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.256 inches and 0.270 inches
