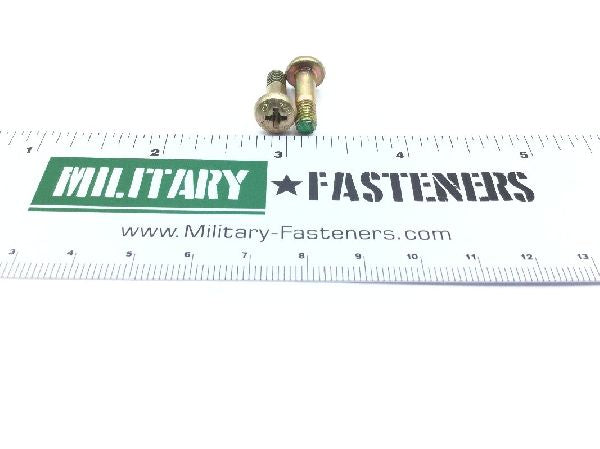

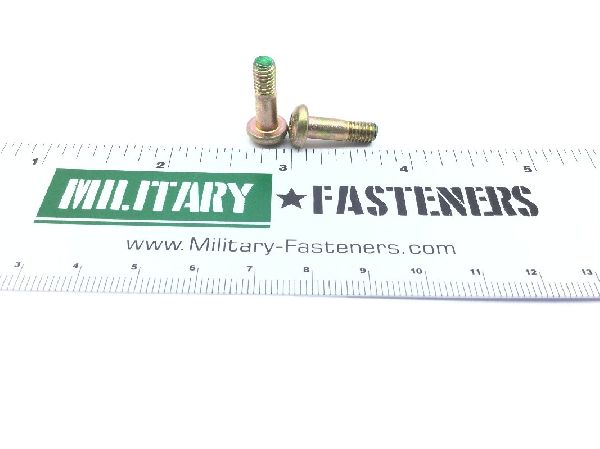

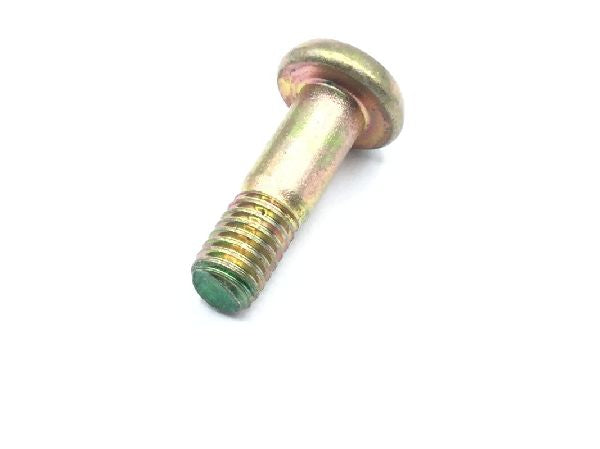

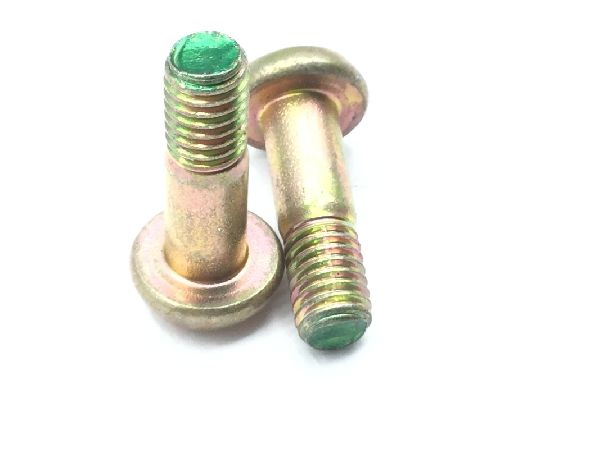

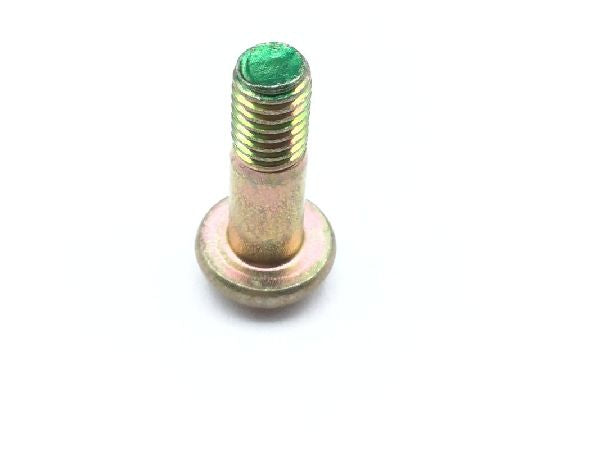

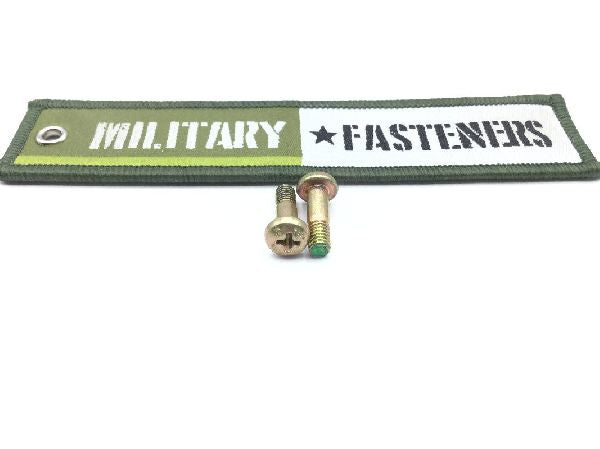

NAS7803-5 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.15

Units per Pack 20

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Head Style

Pan

Material

Iron alloy

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.62 inches and 0.65 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.302 inches and 0.322 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type ii
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Specification Data: 80205-nas7803 professional/industrial association standard
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.302 inches and 0.322 inches
