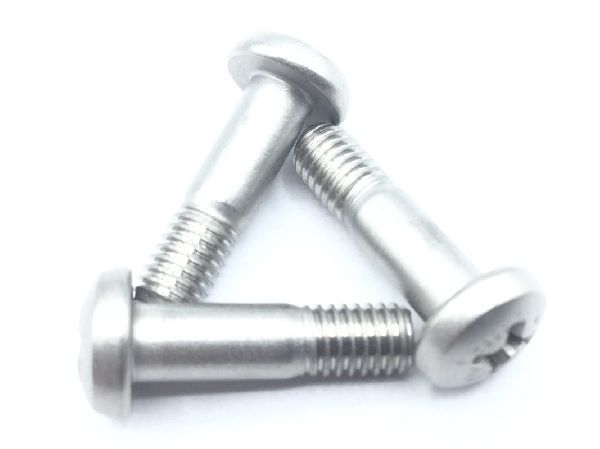

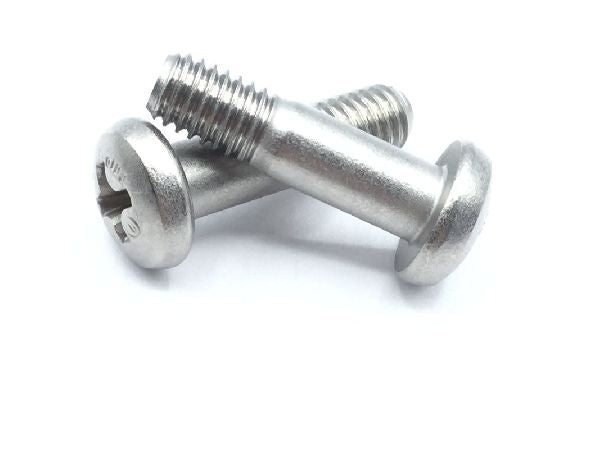

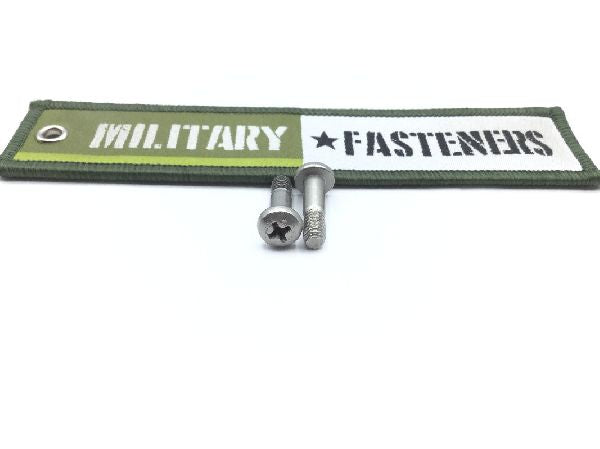

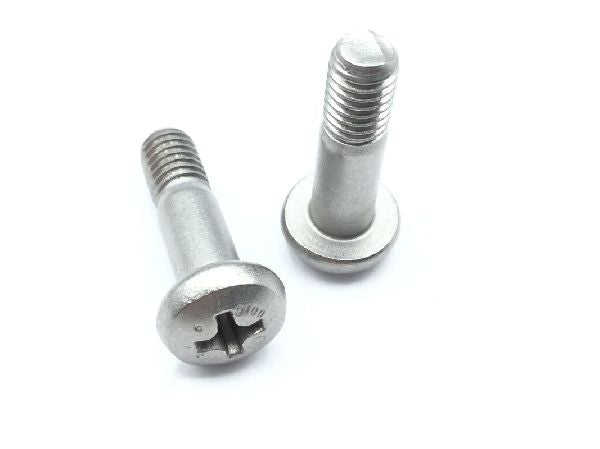

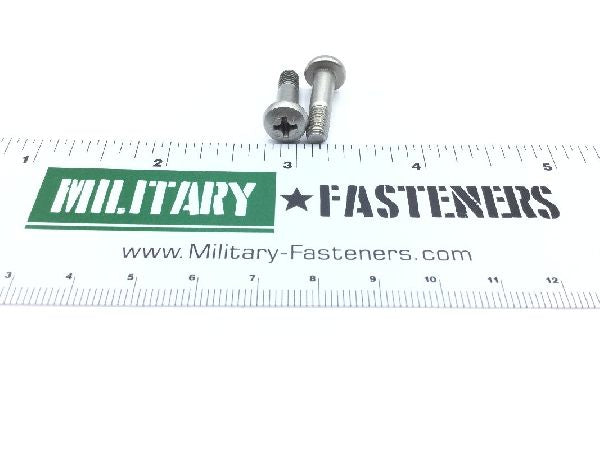

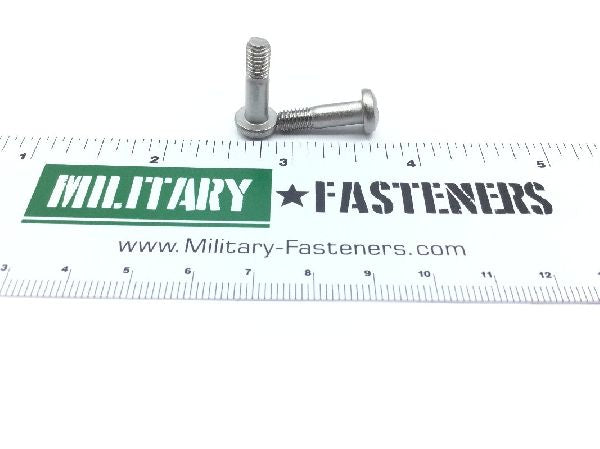

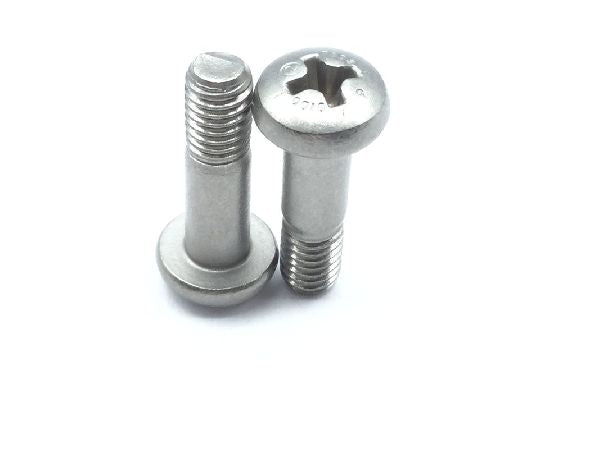

NAS7803U6 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $2.08

Units per Pack 20

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Pan

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.683 inches and 0.713 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.365 inches and 0.385 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas7803 professional/industrial association standard
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.367 inches and 0.373 inches
