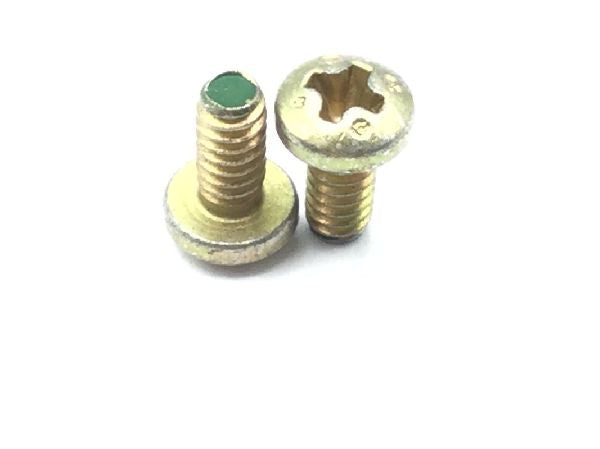

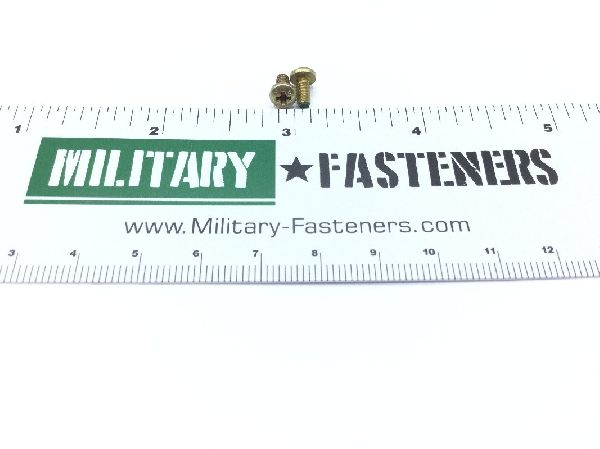

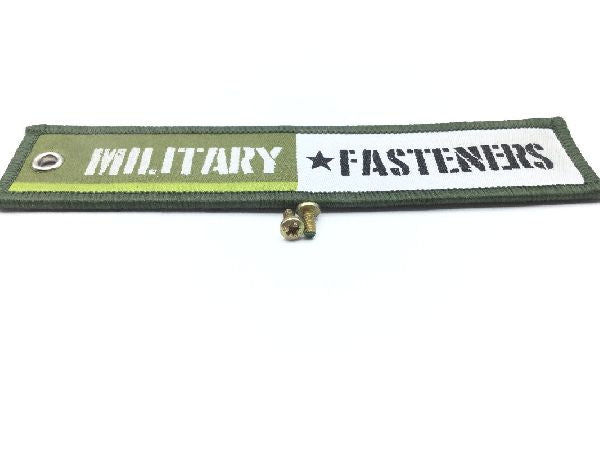

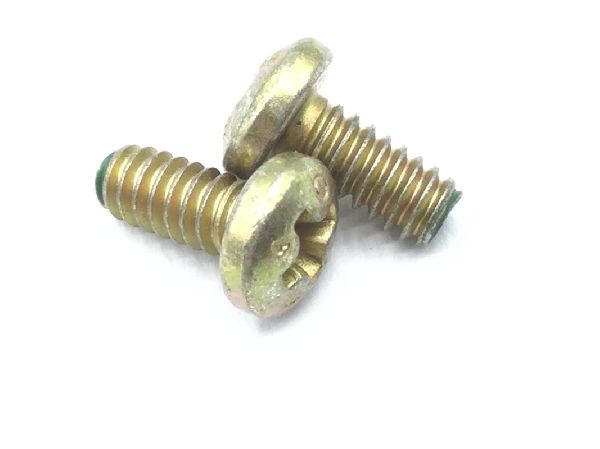

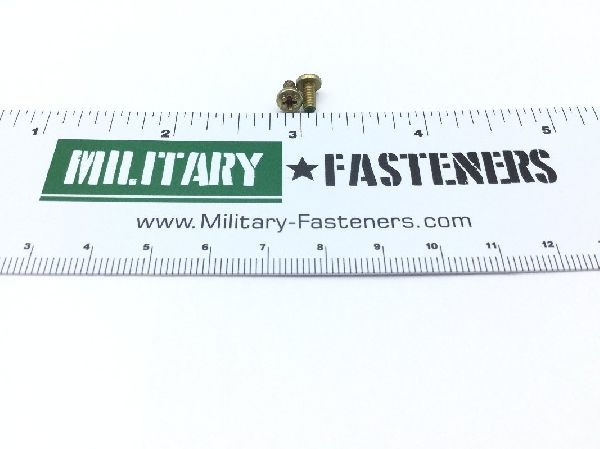

NAS8100-4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Pan

Material

Iron alloy 660

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.220 inches and 0.250 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas8100 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.170 inches and 0.250 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.205 inches and 0.219 inches
