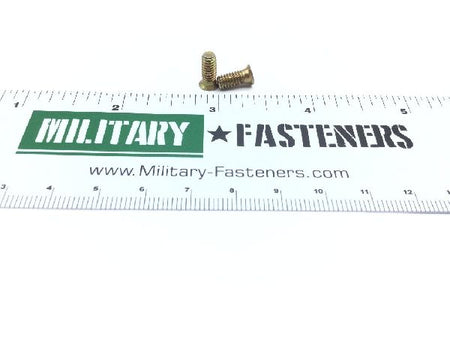

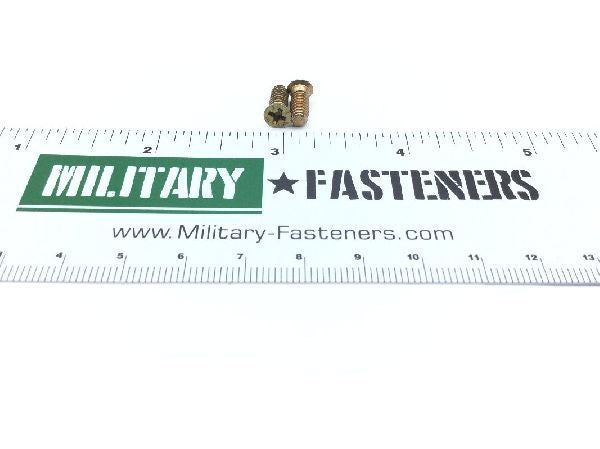

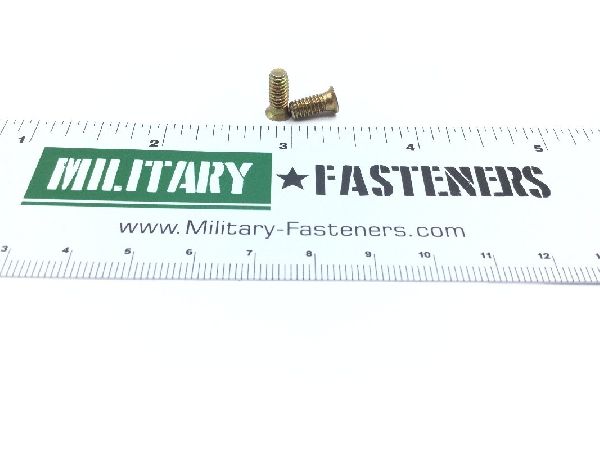

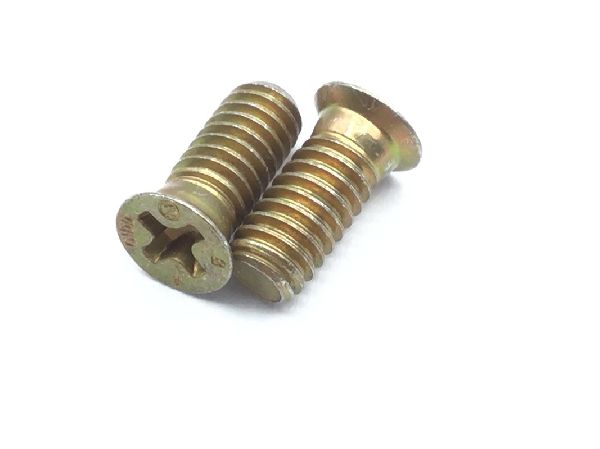

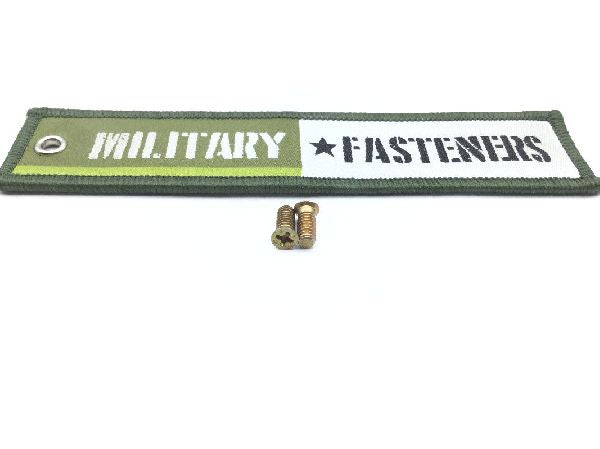

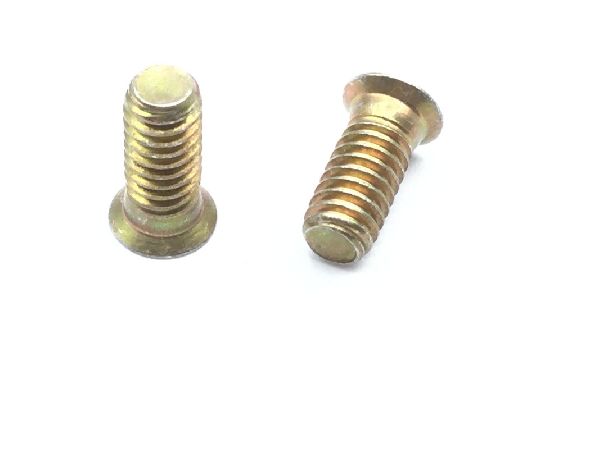

NAS8602-1 Close Tolerance Screw

NSN: 5305-01-525-0806
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk undercut

Material

Steel

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: C17 acft
Fastener Length: Between 0.370 inches and 0.390 inches
Grip Diameter: Between 0.162 inches and 0.163 inches
Grip Length: Between 0.052 inches and 0.072 inches
Head Height: 0.039 inches
Internal Drive Style: Cross recess type 1
Part Name Assigned By Controlling Agency: Screw close tolerance
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: 0.226 inches
