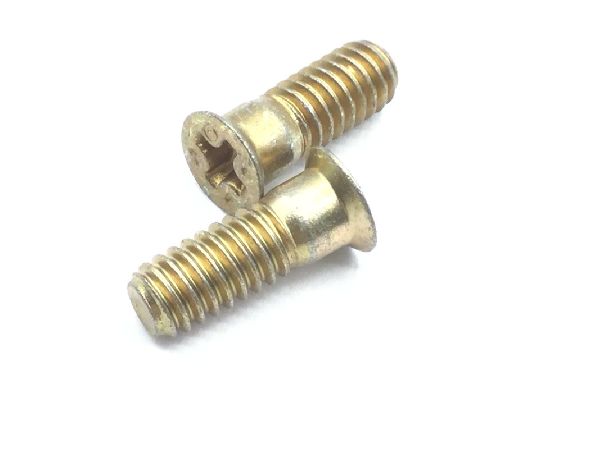

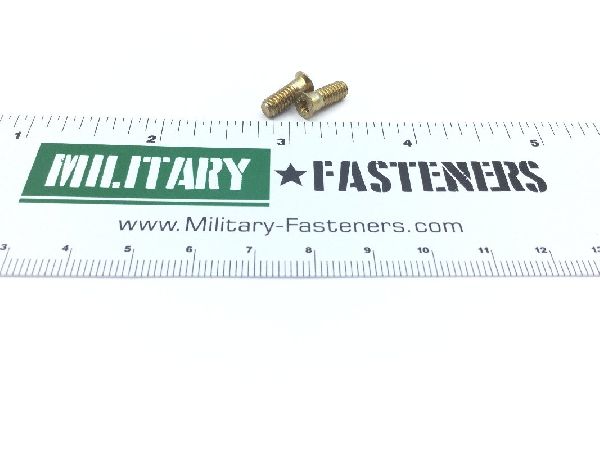

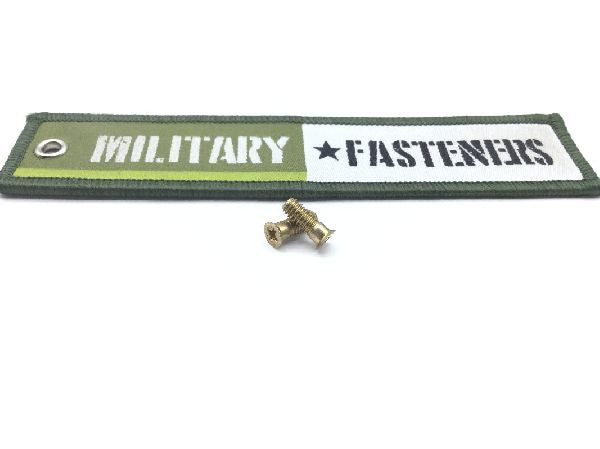

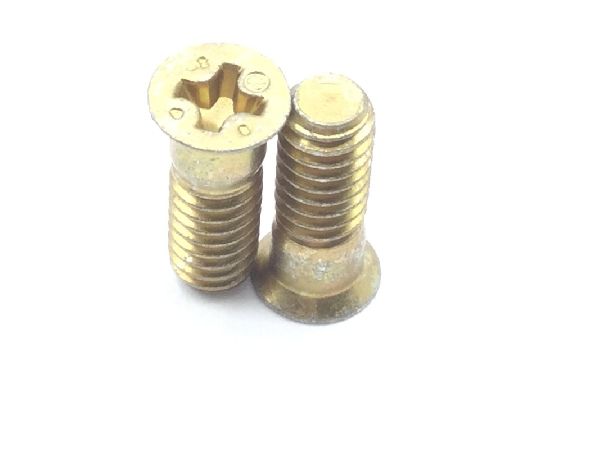

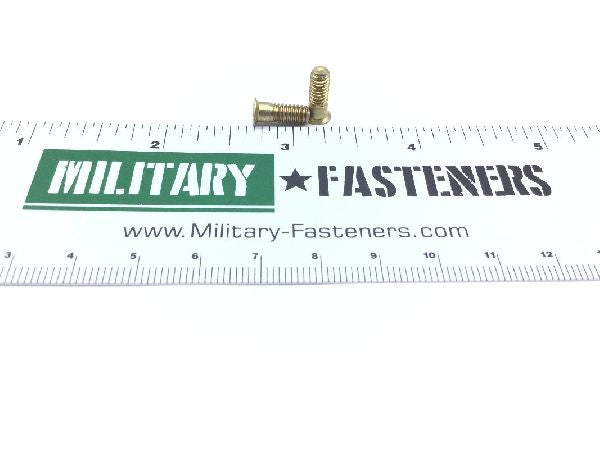

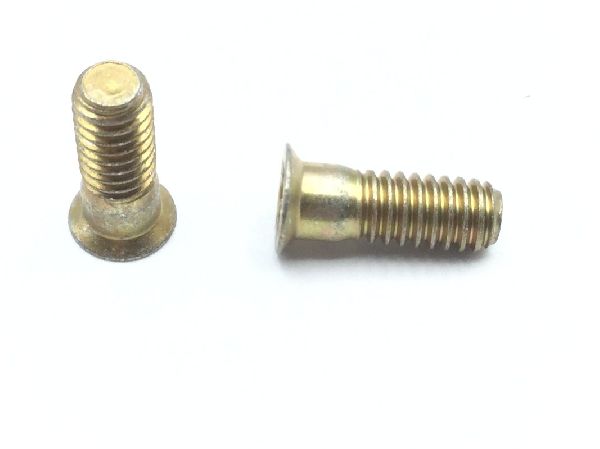

NAS8602-2 Close Tolerance Screw

NSN: 5305-01-503-8298
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.95

Units per Pack 25

Price per Pack $48.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.75

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: Kc135 gatm a
Fastener Length: Between 0.433 inches and 0.463 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: Between 0.115 inches and 0.135 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.226 inches and 0.257 inches
