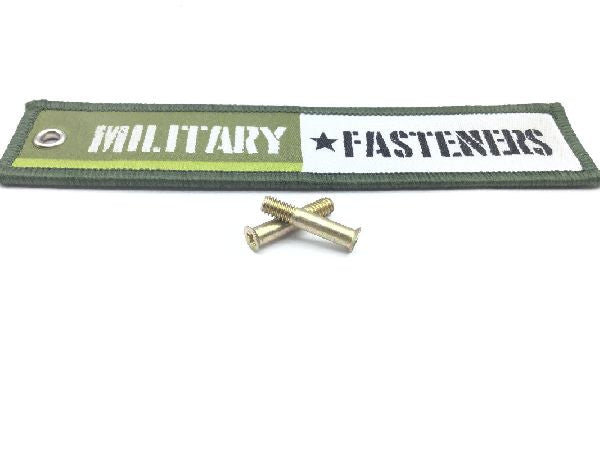

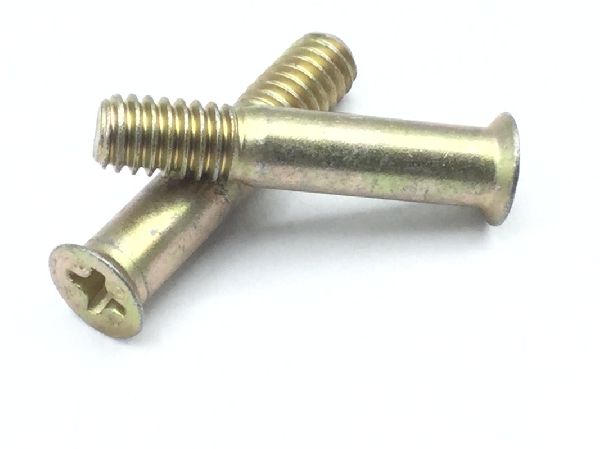

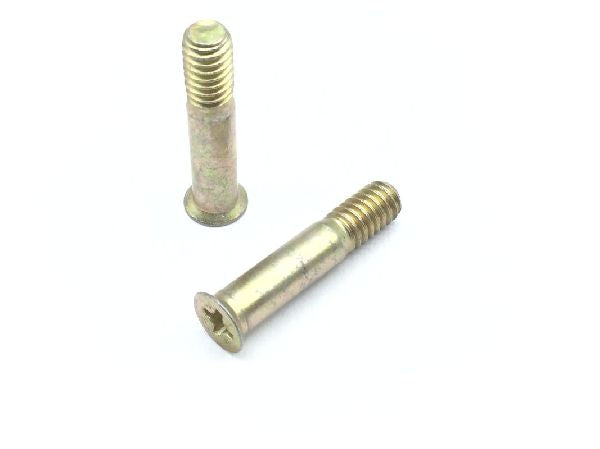

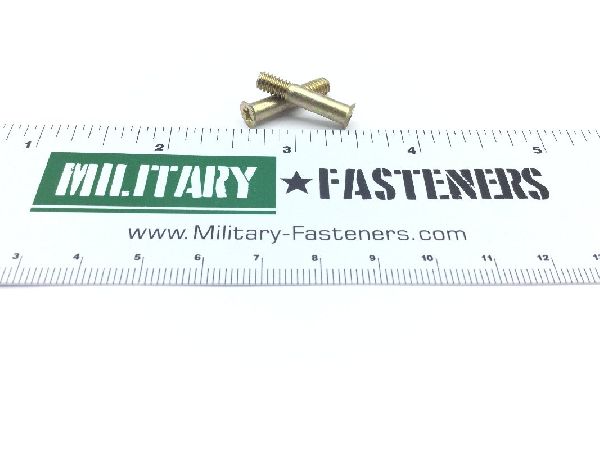

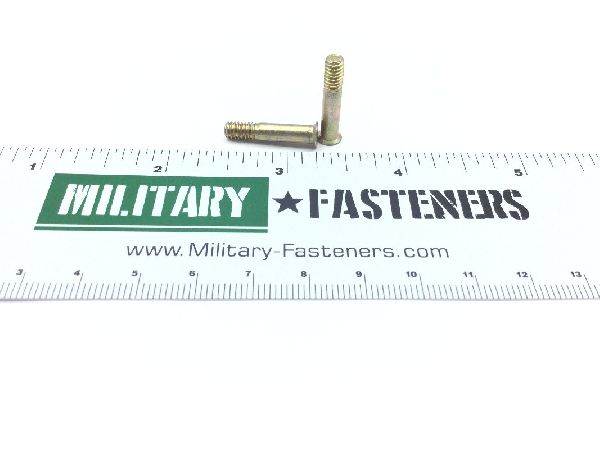

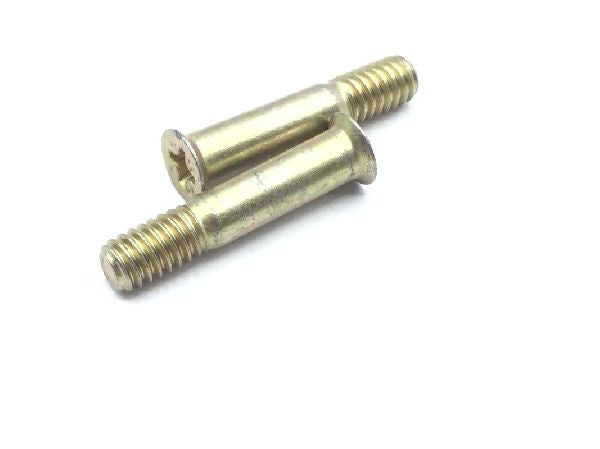

NAS8602-8 Close Tolerance Screw

NSN: 5305-01-525-4942
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk undercut

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.784 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: Between 0.490 inches and 0.510 inches
Head Height: 0.039 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams-s-5000 assn standard 1st material response or ams6415 assn standard 2nd material response or ams6322 assn standard 3rd material response
Specification Data: 80205-nas8602 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: 0.226 inches
