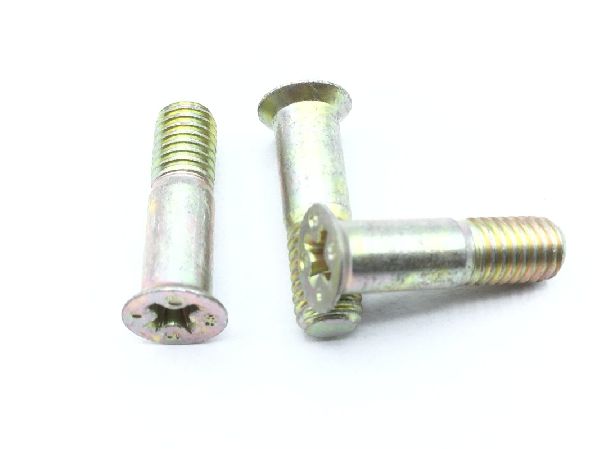

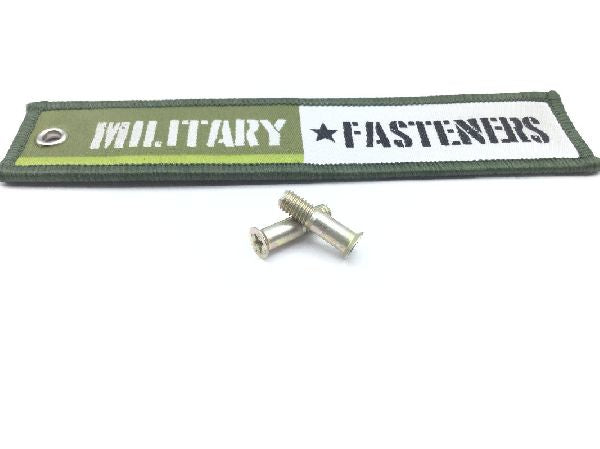

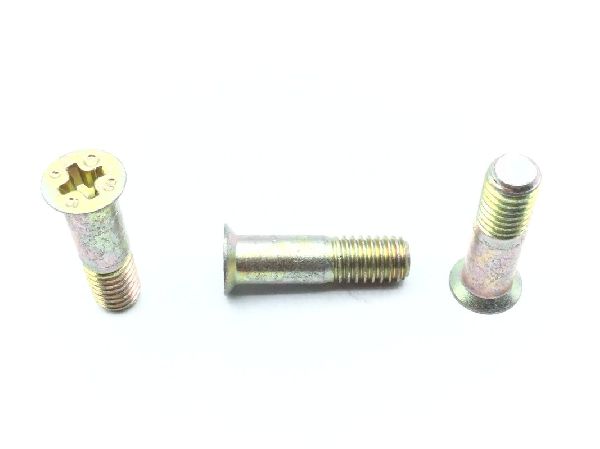

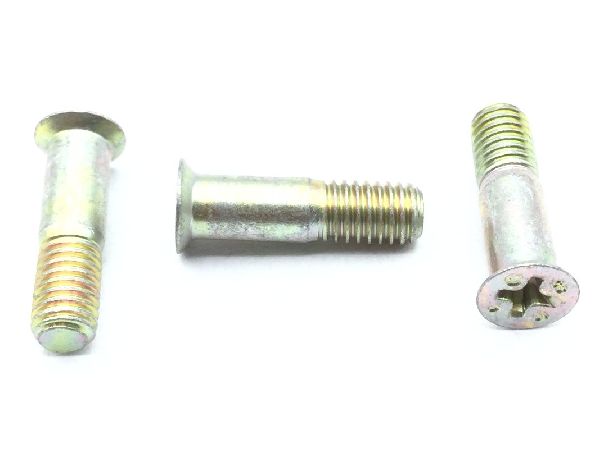

NAS8603-6 Close Tolerance Screw

NSN: 5305-01-470-6949
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Qq-p-416 assn standard single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.730 inches and 0.760 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.365 inches and 0.385 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5000 assn standard single material response and mil-s-6049 assn standard single material response or ams6322 assn standard single material response
Specification Data: 80205-nas8603 professional/industrial association standard
Thread Diameter: 0.1900 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.266 inches and 0.303 inches
