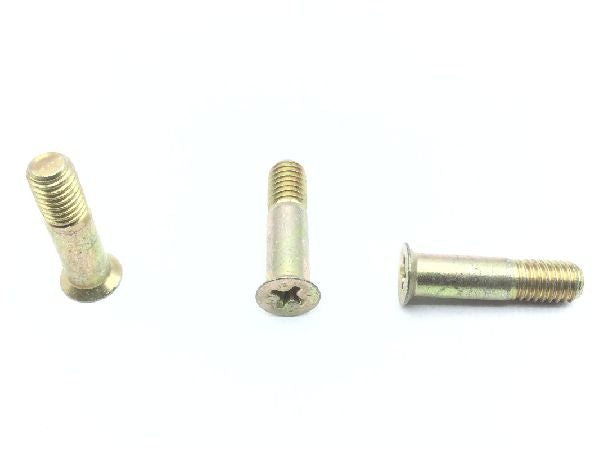

NAS8603-7 Close Tolerance Screw

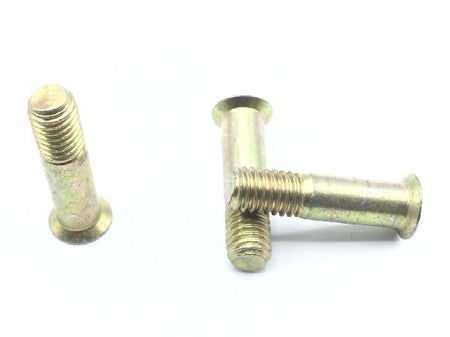

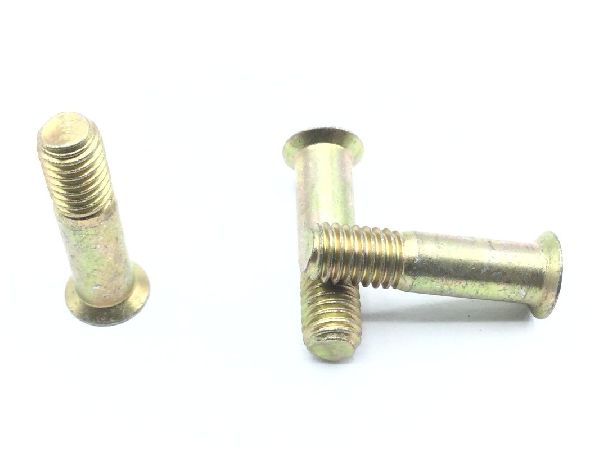

NAS8603-7 Close Tolerance Screw (2)

NAS8603-7 Close Tolerance Screw (3)

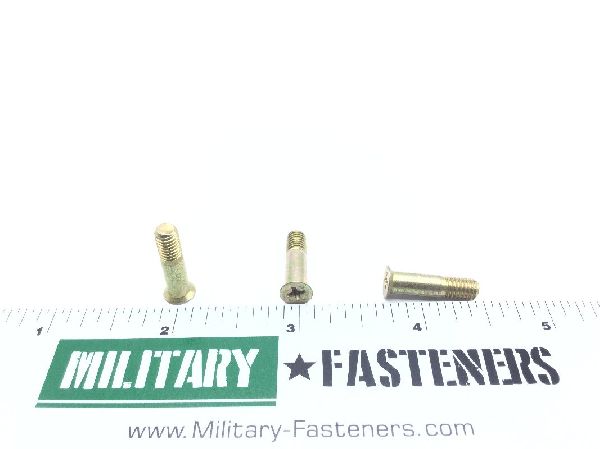

NAS8603-7 Close Tolerance Screw (4)

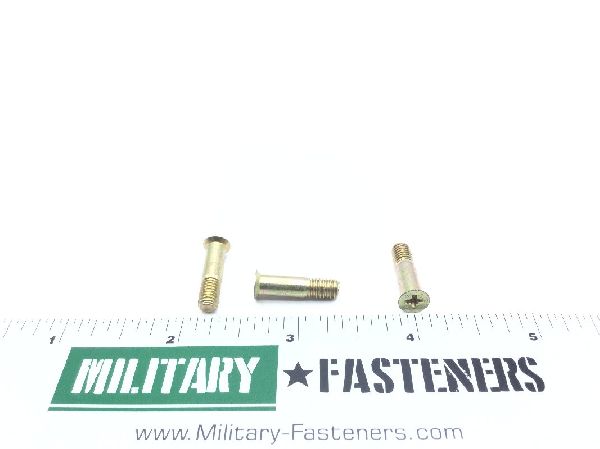

NAS8603-7 Close Tolerance Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS8603-7 Close Tolerance Screw

NSN: 5305-01-534-7550
Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4340 or steel comp 8740

Thread Class

3a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.266 inches and 0.303 inches
