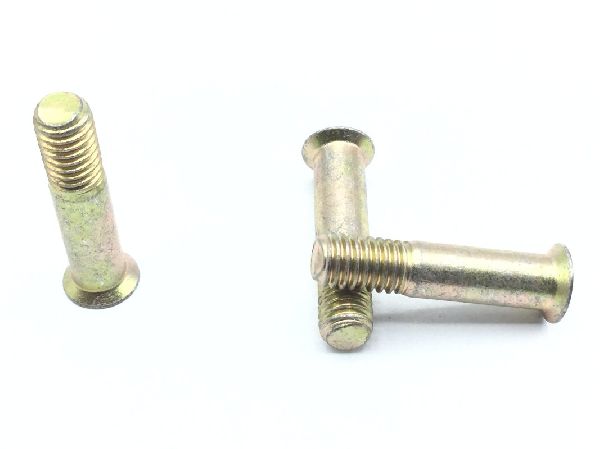

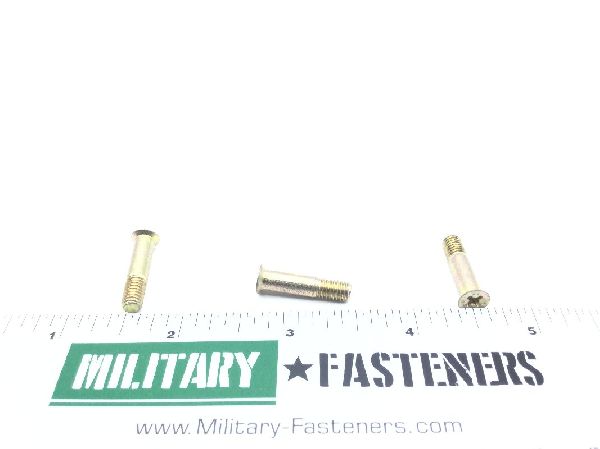

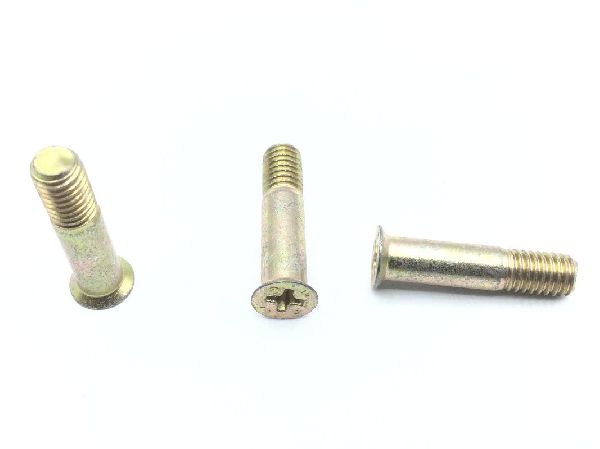

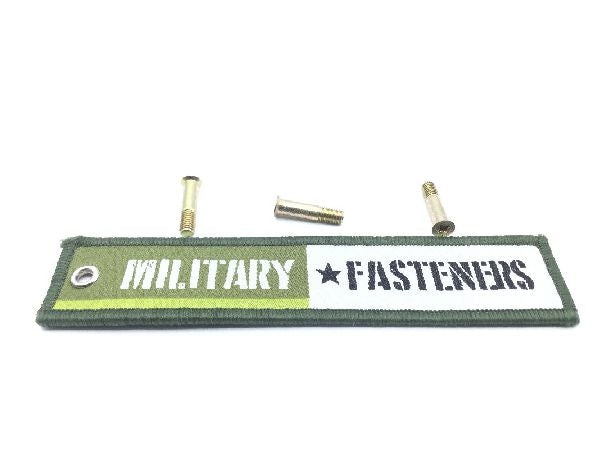

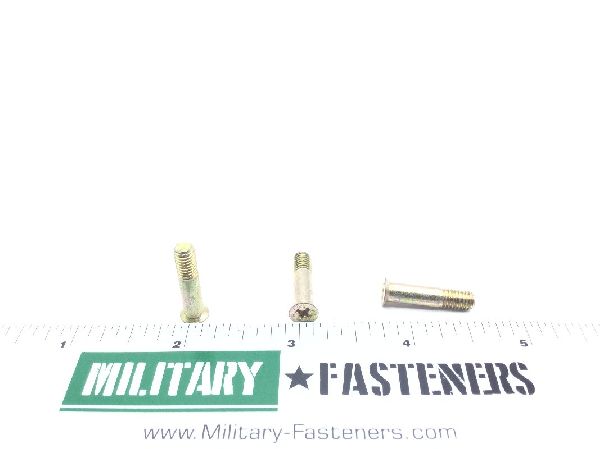

NAS8603-8 Close Tolerance Screw

NSN: 5305-01-445-1326
Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $1.58

Units per Pack 25

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Flat countersunk

Material

Steel

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: 0.573 inches
Grip Diameter: 0.500 inches
Grip Length: 0.823 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 95000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: 0.284 inches
