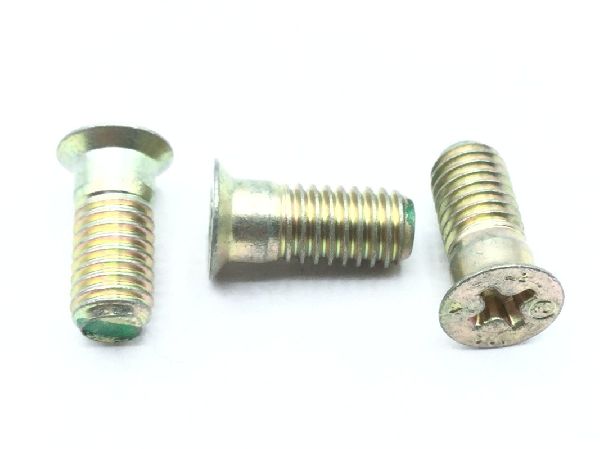

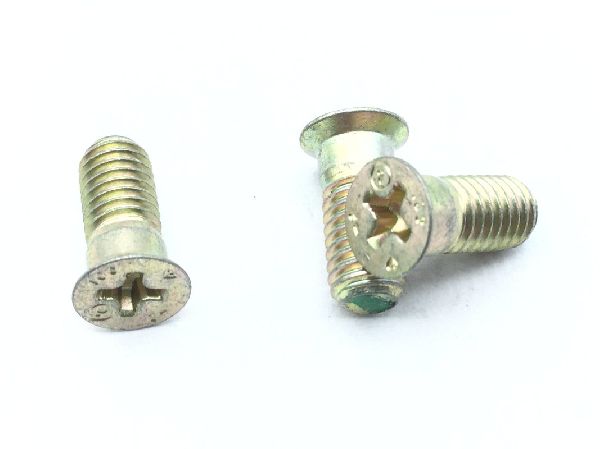

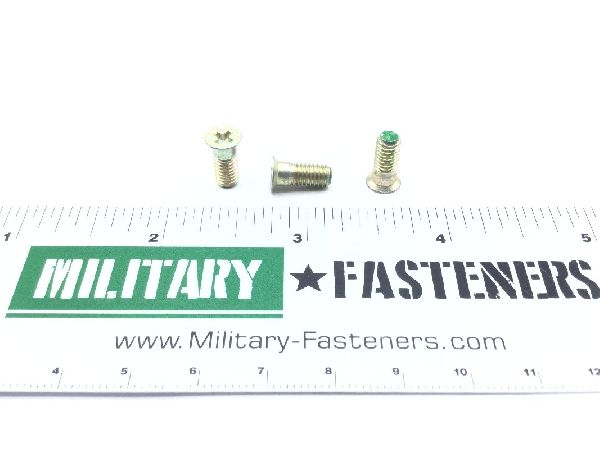

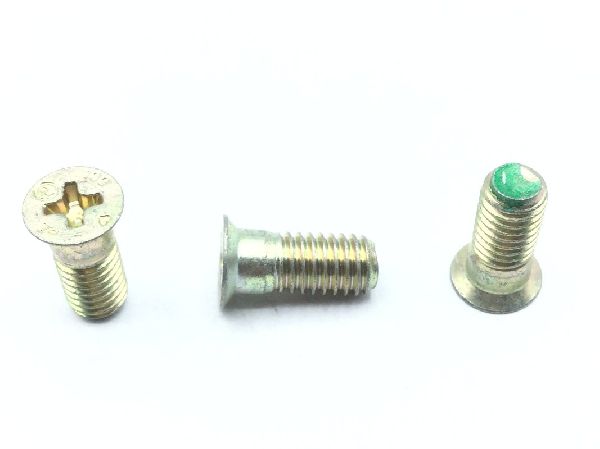

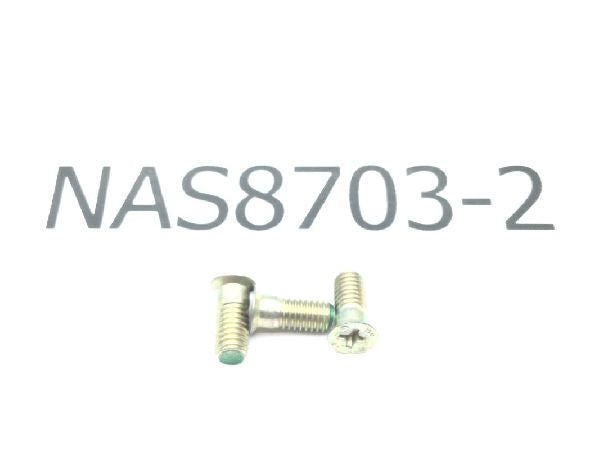

NAS8703-2 Close Tolerance Bolt

NSN: 5305-01-314-3028
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Color: Green threads
Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.433 inches and 0.463 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.115 inches and 0.135 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas8703 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.266 inches and 0.303 inches
