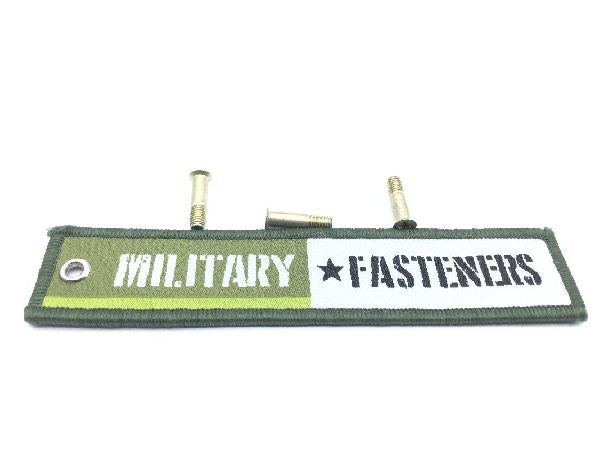

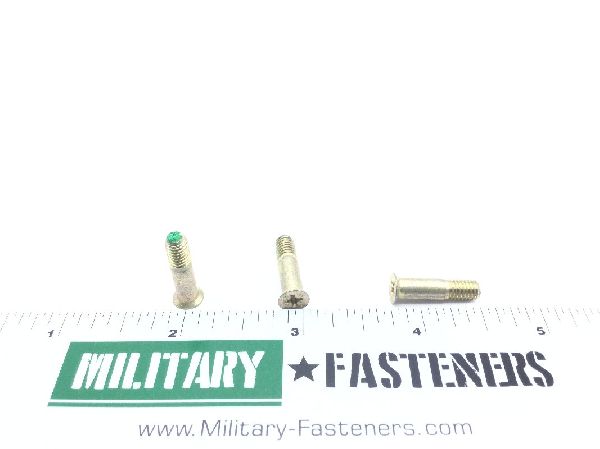

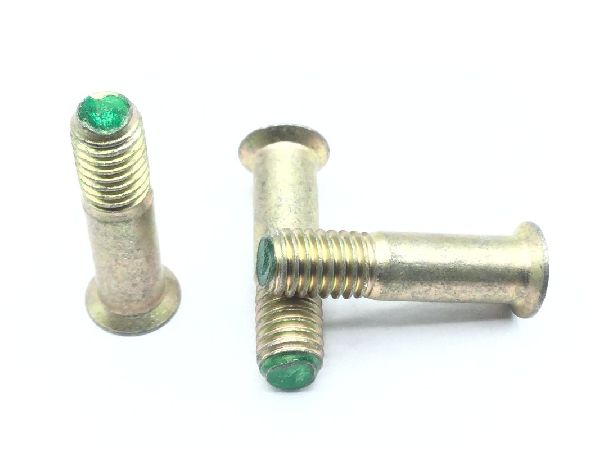

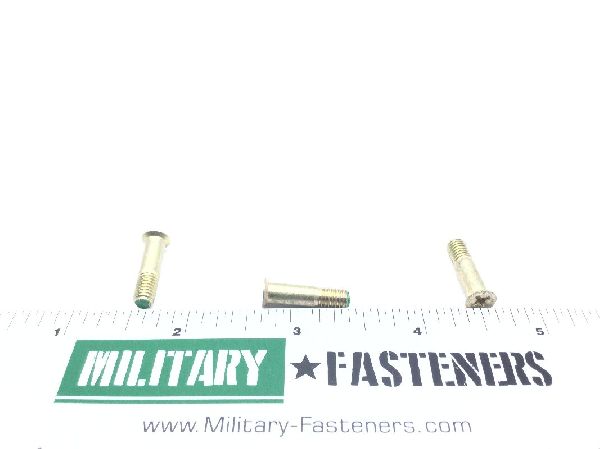

NAS8703-7 Close Tolerance Bolt

NSN: 5305-01-365-7262
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk undercut

Material

Iron alloy 660

Surface Treatment

Cl 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.746 inches and 0.776 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.428 inches and 0.448 inches
Head Height: 0.012 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5731 assn standard 1st material response or ams 5737 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 95000 pounds per square inch
Surface Finish: 32.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.266 inches and 0.303 inches
