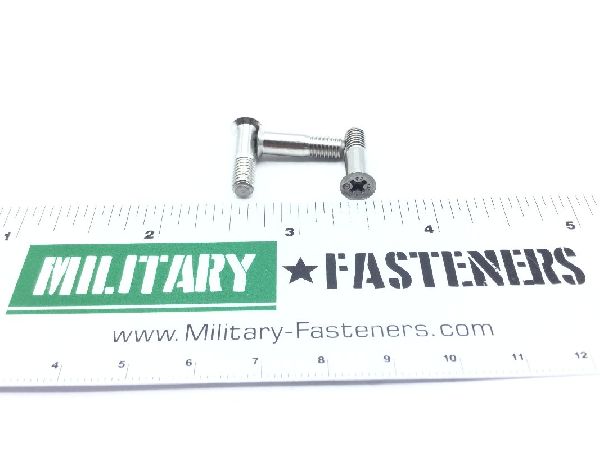

NAS8703U6 Close Tolerance Bolt

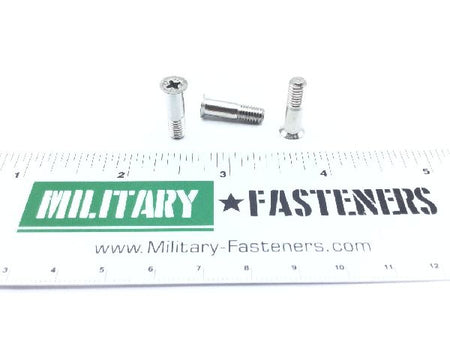

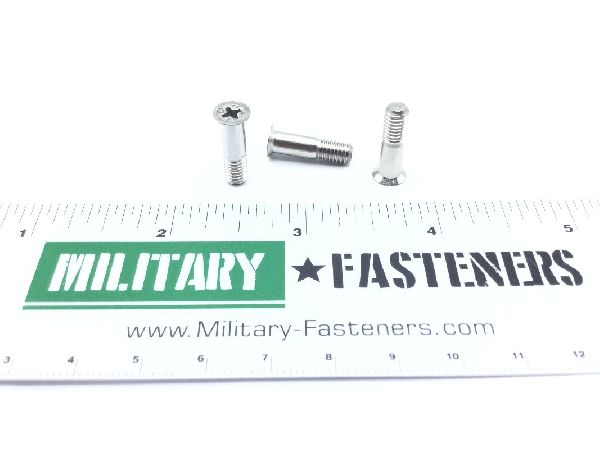

NAS8703U6 Close Tolerance Bolt (2)

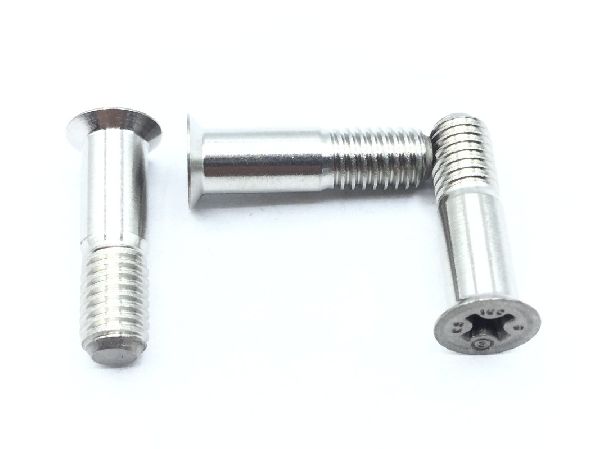

NAS8703U6 Close Tolerance Bolt (3)

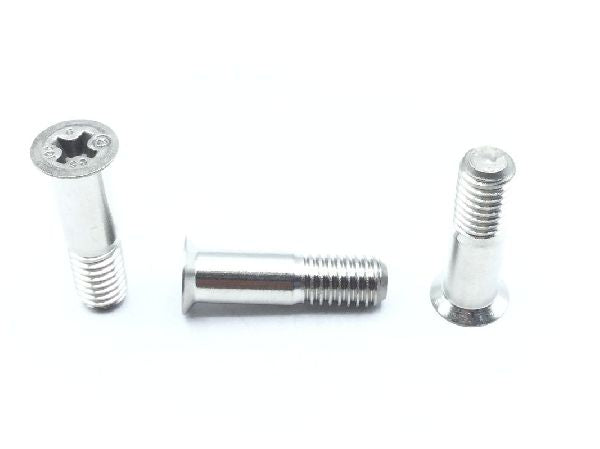

NAS8703U6 Close Tolerance Bolt (4)

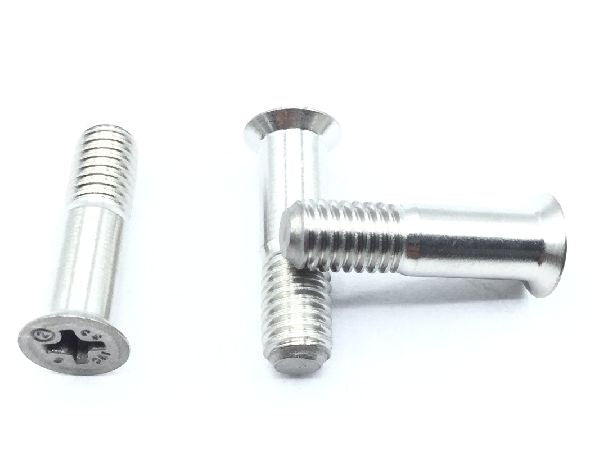

NAS8703U6 Close Tolerance Bolt (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS8703U6 Close Tolerance Bolt

NSN: 5305-01-553-3901
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.87

Units per Pack 25

Price per Pack $46.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.75

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Thread Class

3a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.698 inches
Grip Diameter: 0.189 inches
Grip Length: 0.375 inches
Internal Drive Style: Cross recess type 1
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.266 inches and 0.303 inches
