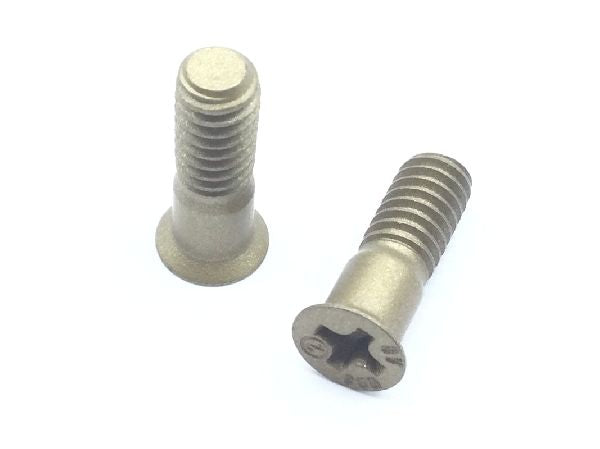

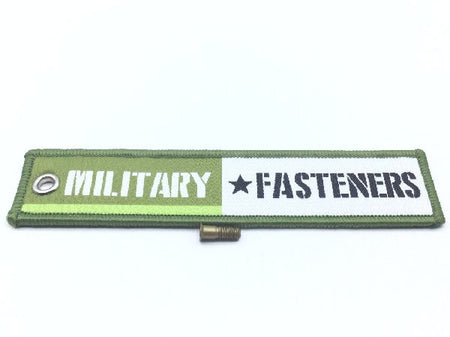

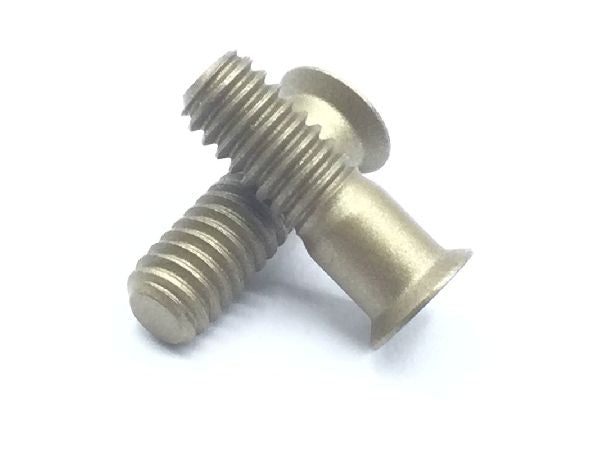

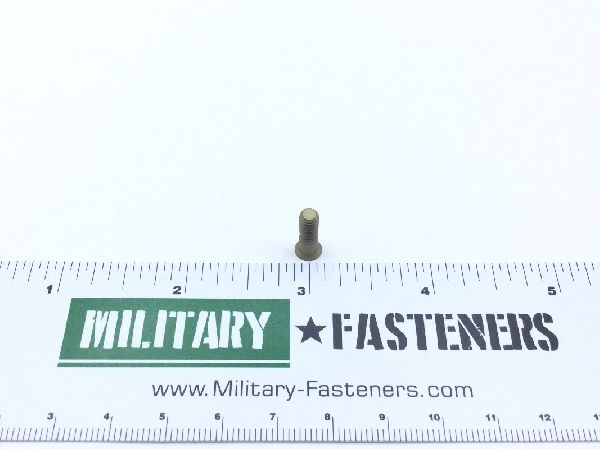

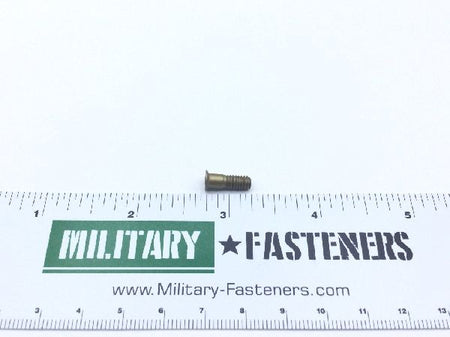

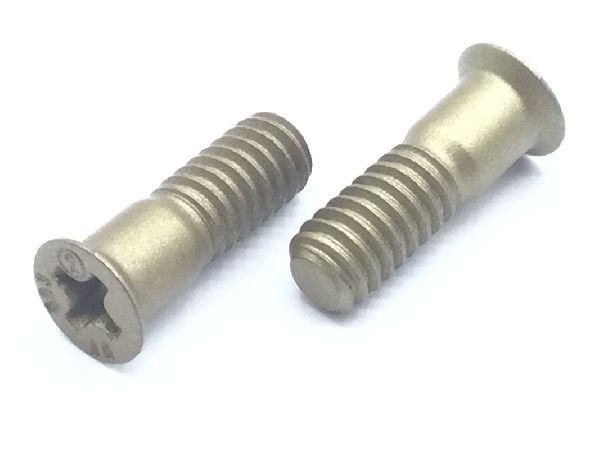

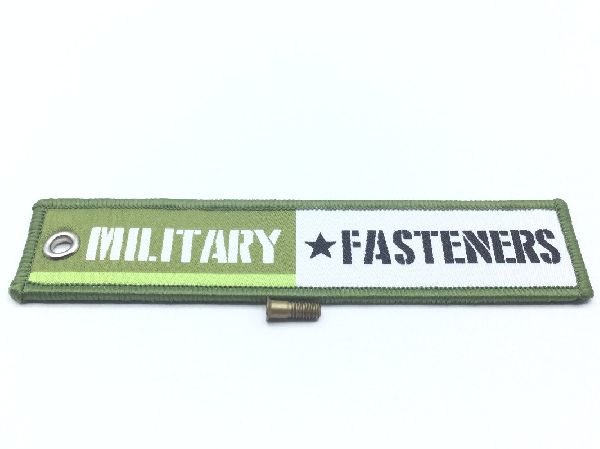

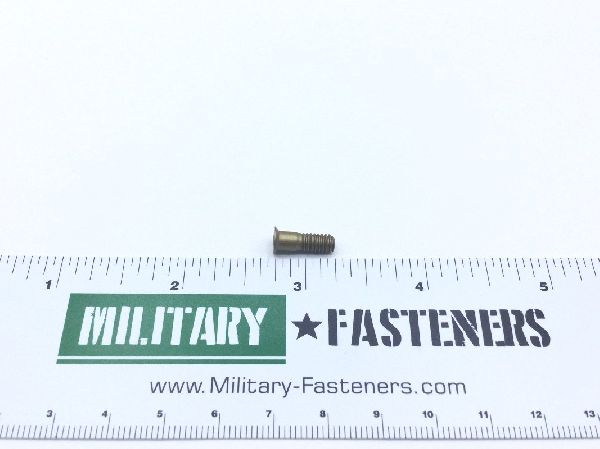

NAS8802A3 Close Tolerance Screw

NSN: 5305-01-338-4060
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy uns r56400

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.496 inches and 0.526 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: Between 0.178 inches and 0.198 inches
Iii Part Name Assigned By Controlling Agency: Navy special project
Internal Drive Style: Cross recess type 1
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas8802 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.226 inches and 0.257 inches
