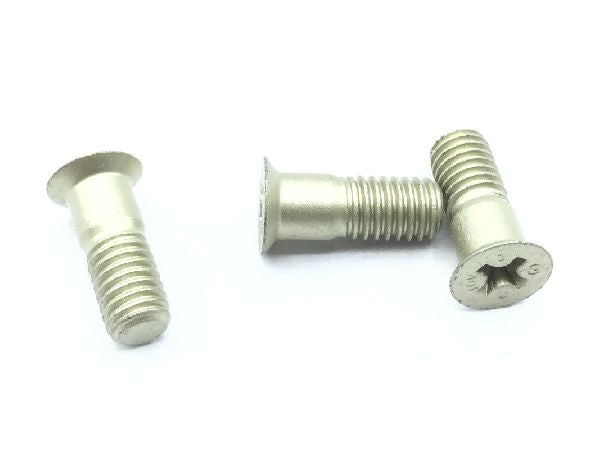

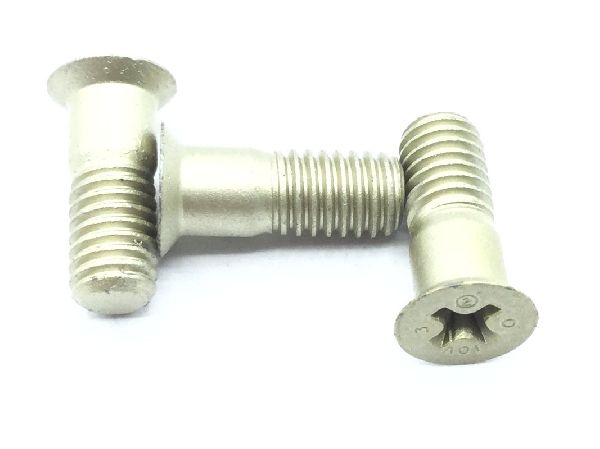

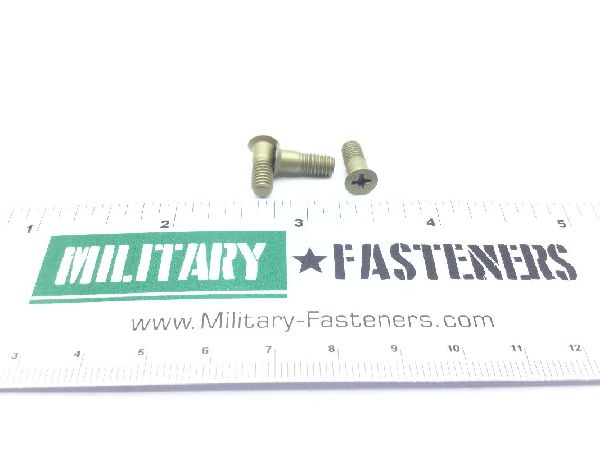

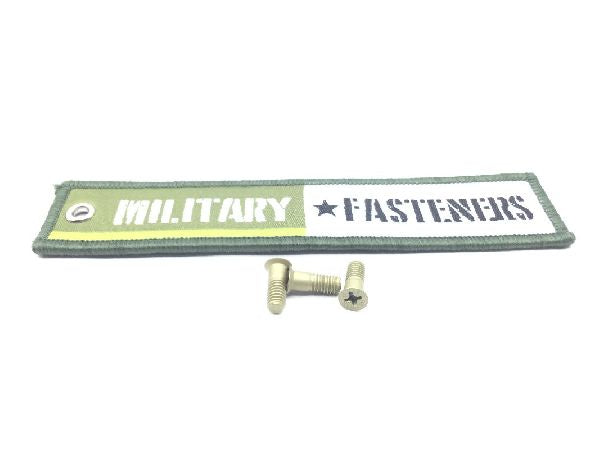

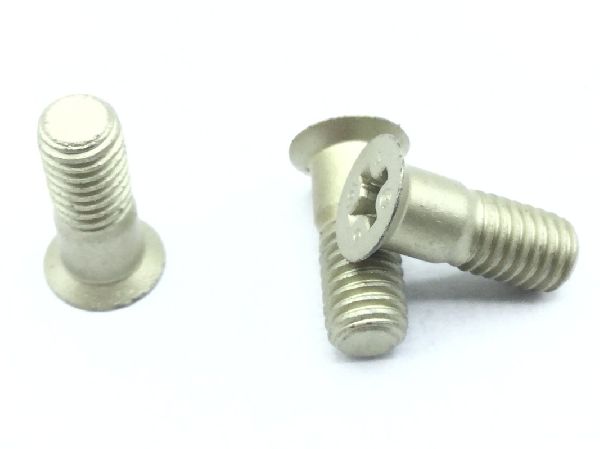

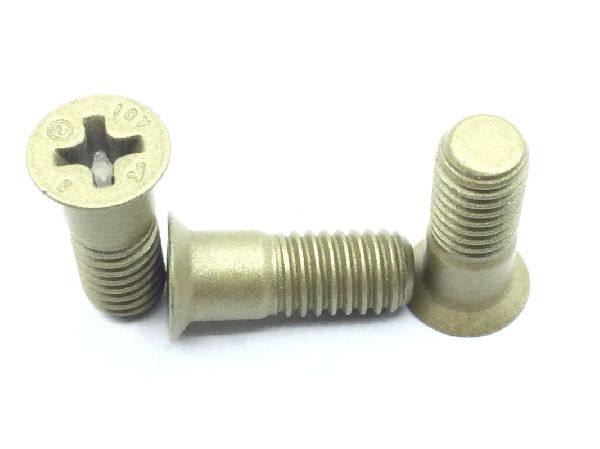

NAS8803A3 Close Tolerance Bolt

NSN: 5305-01-337-6004
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.496 inches and 0.526 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.178 inches and 0.198 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams4928 assn standard single material response or ams4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas8803 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.285 inches and 0.303 inches
