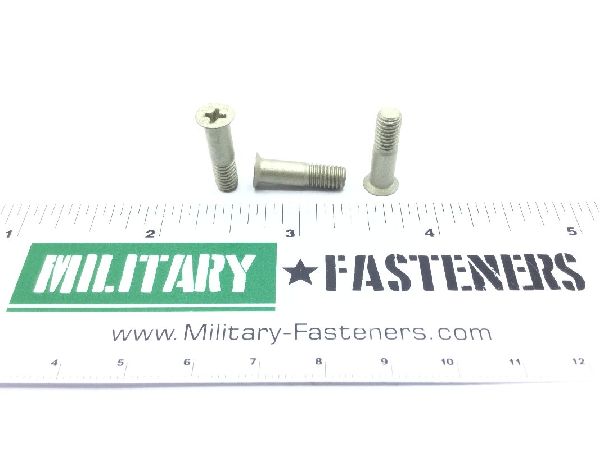

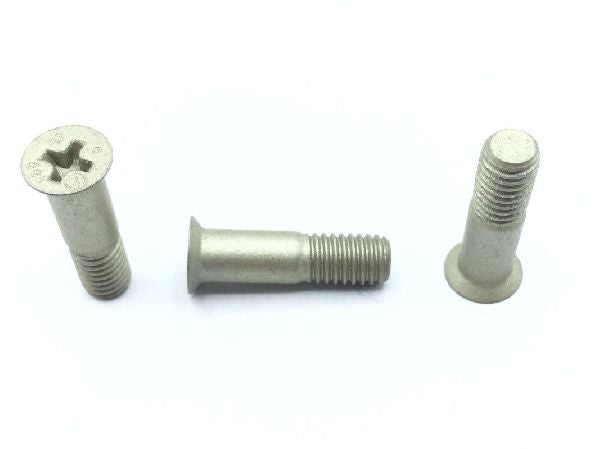

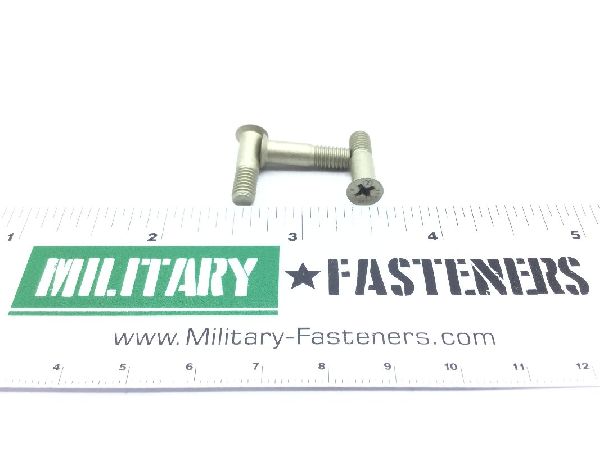

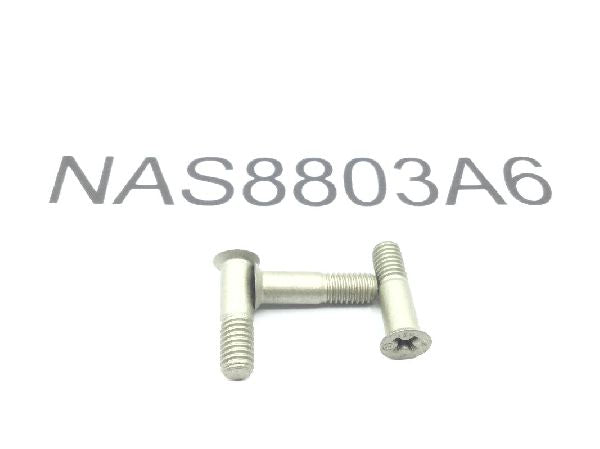

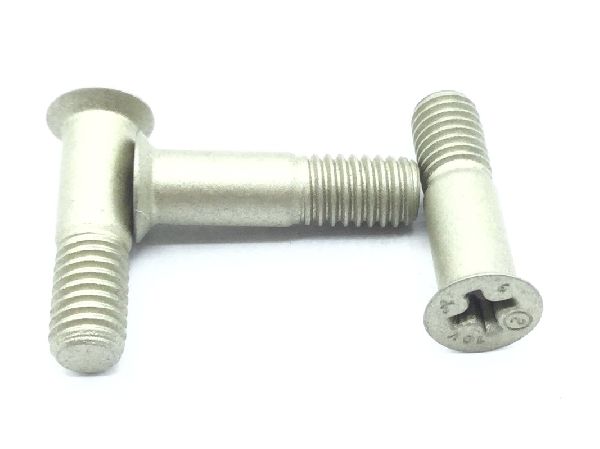

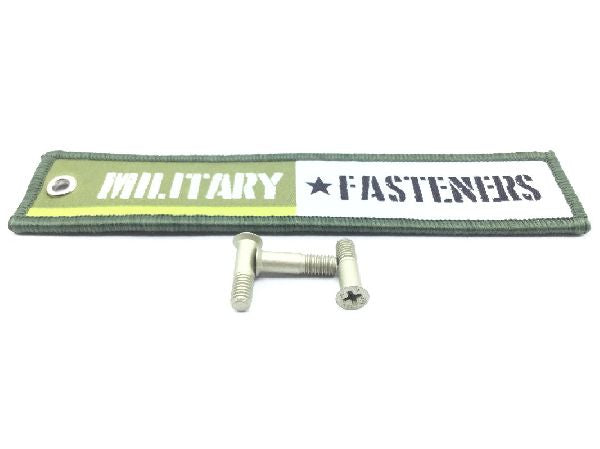

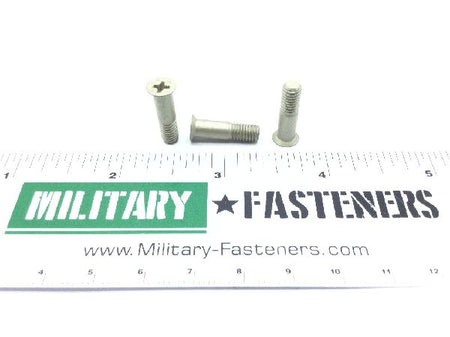

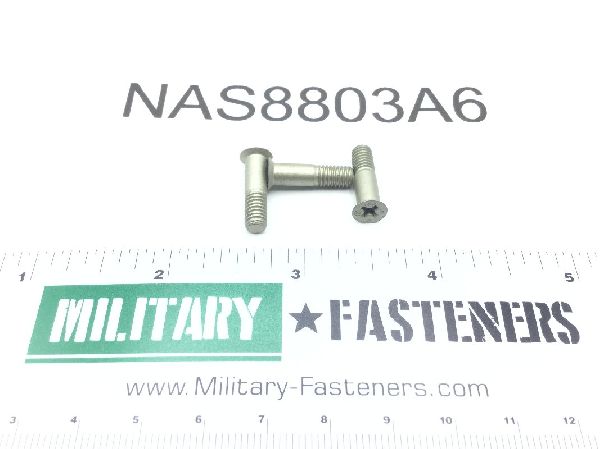

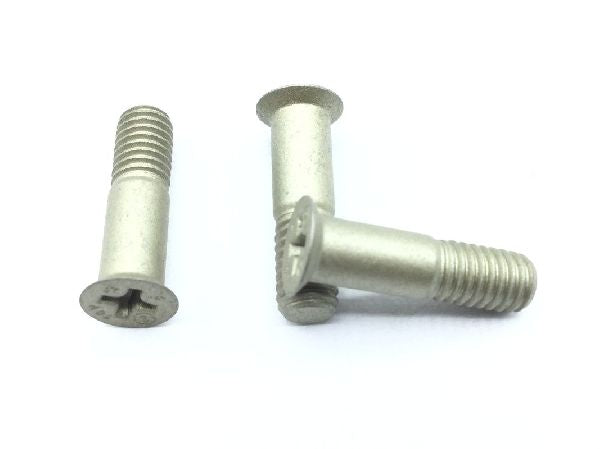

NAS8803A6 Close Tolerance Bolt

NSN: 5305-01-338-8162
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy uns r56400

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.693 inches and 0.703 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.365 inches and 0.385 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams4967 assn standard single material response or ams4928 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas8803 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.286 inches and 0.303 inches
