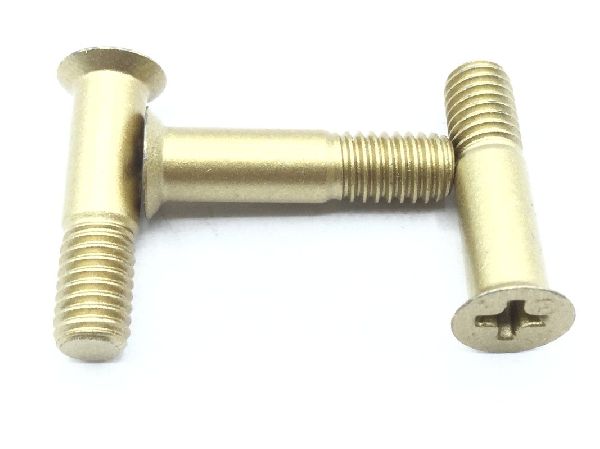

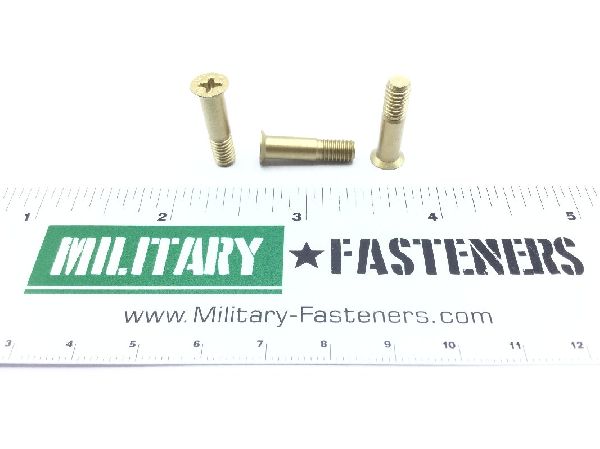

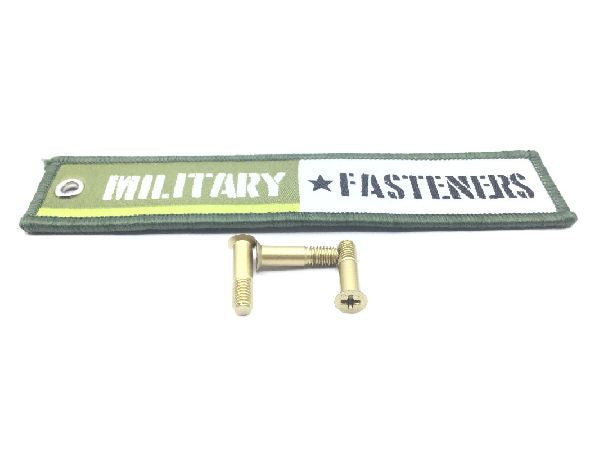

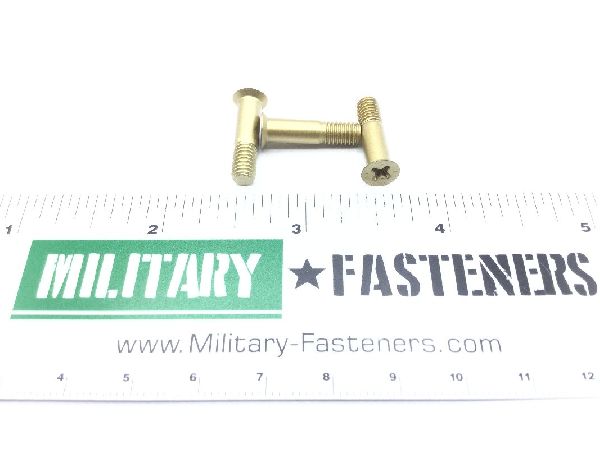

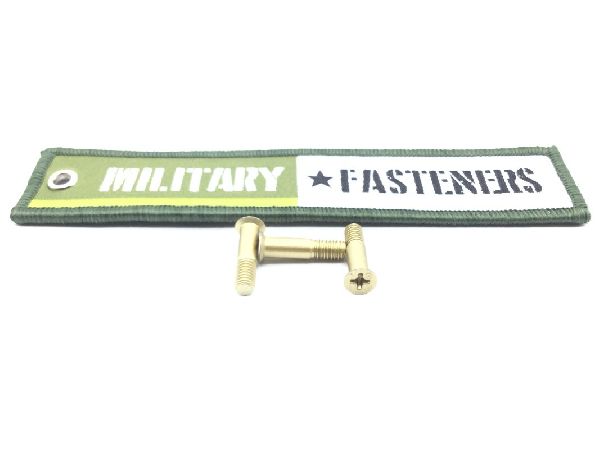

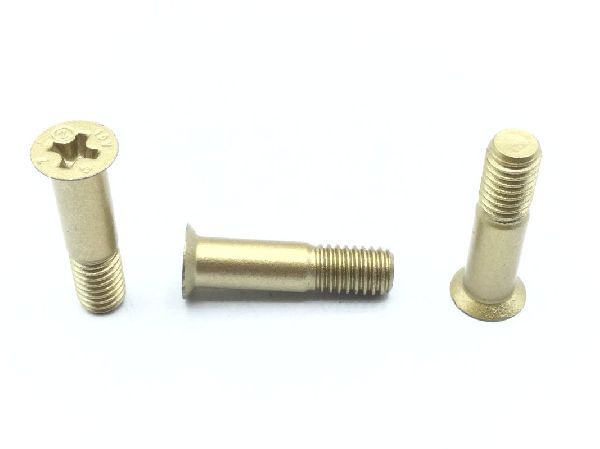

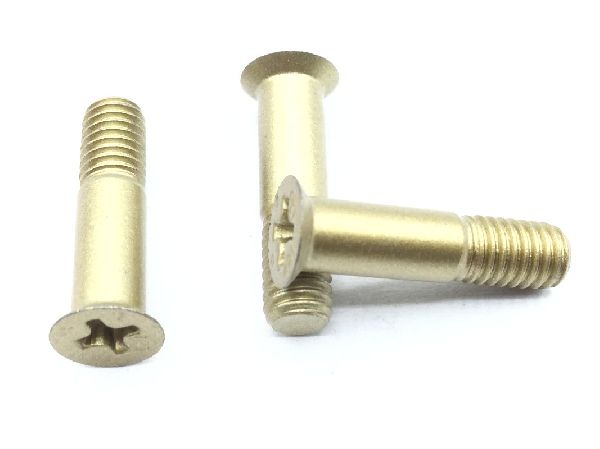

NAS8803A7 Close Tolerance Bolt

NSN: 5305-01-453-4326
Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Titanium alloy uns r56440

Thread Class

Countersink Angle: 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.746 inches and 0.776 inches
Grip Diameter: Between 0.1879 inches and 0.1885 inches
Grip Length: Between 0.428 inches and 0.448 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams4967 assn standard single material response or ams4928 assn standard single material response
Min. Tensile Strength (psi): 16000 pounds per square inch
Specification Data: 80205-nas8803 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.266 inches and 0.303 inches
