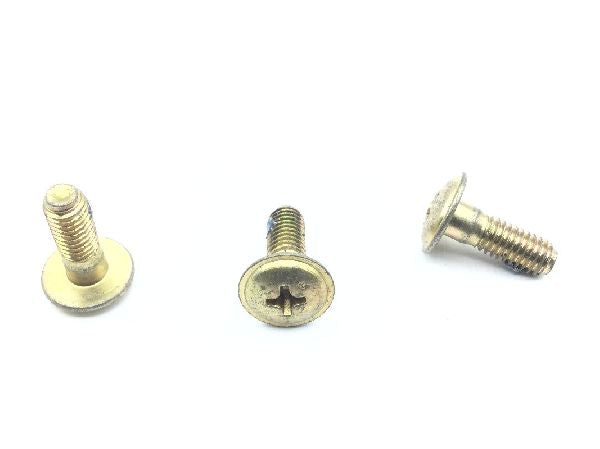

NK525-10R8 Machine Screw

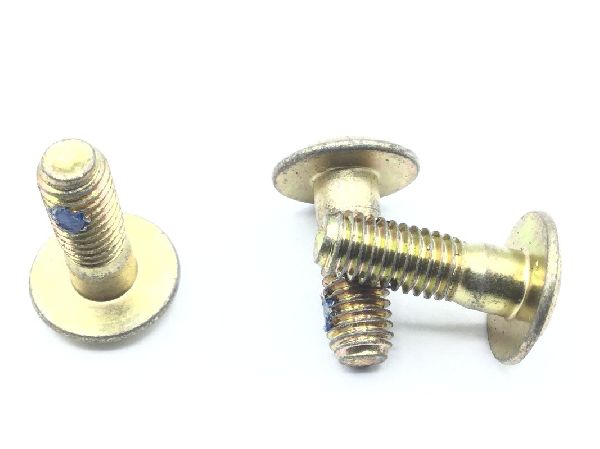

NK525-10R8 Machine Screw (2)

NK525-10R8 Machine Screw (3)

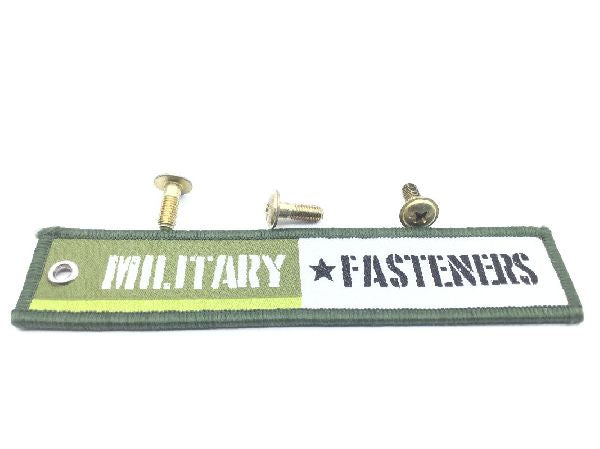

NK525-10R8 Machine Screw (4)

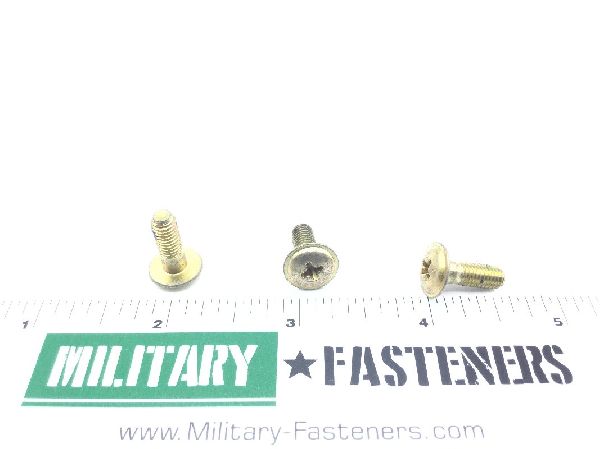

NK525-10R8 Machine Screw (5)

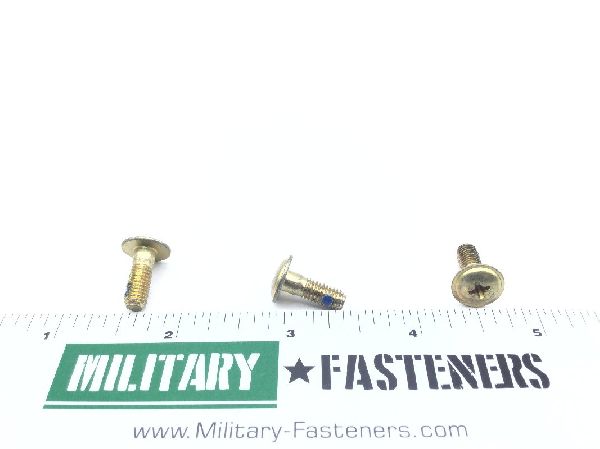

NK525-10R8 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NK525-10R8 Machine Screw

NSN: 5305-00-781-1248
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $4.29

Units per Pack 10

Price per Pack $42.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $42.90

Add item to quote

Material

Steel

Thread Class

3a

Fastener Length: 0.500 inches
Head Height: 0.094 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Pellet threads
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.437 inches
