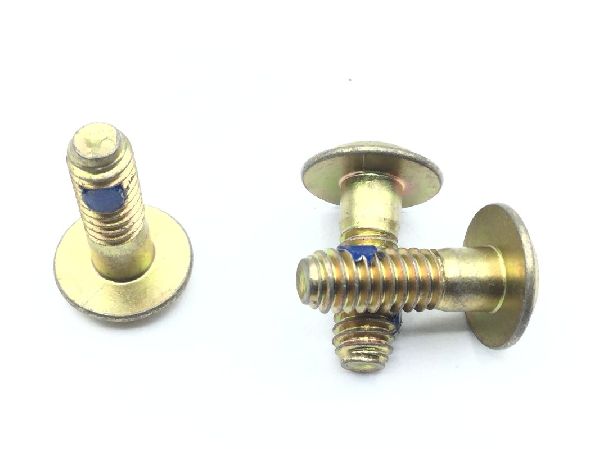

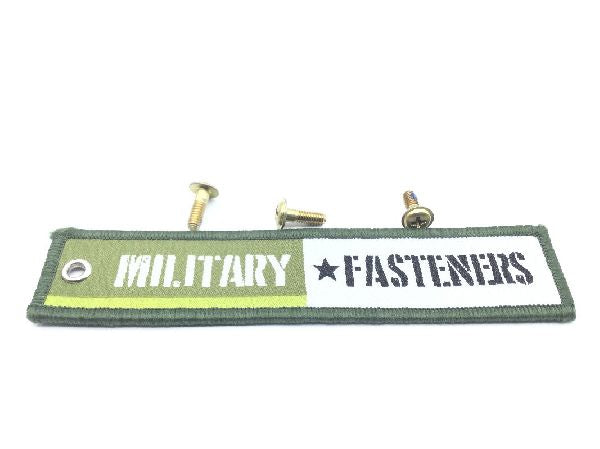

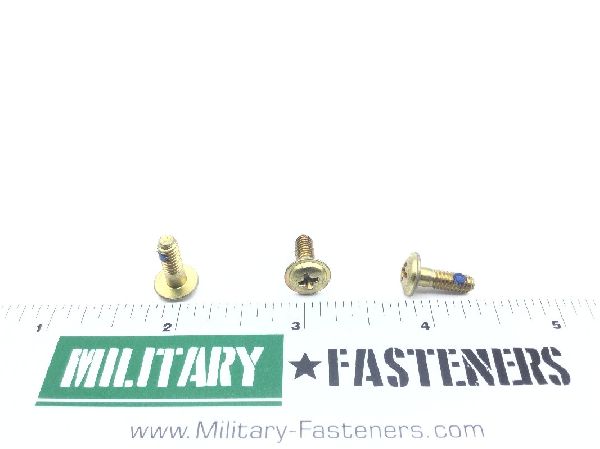

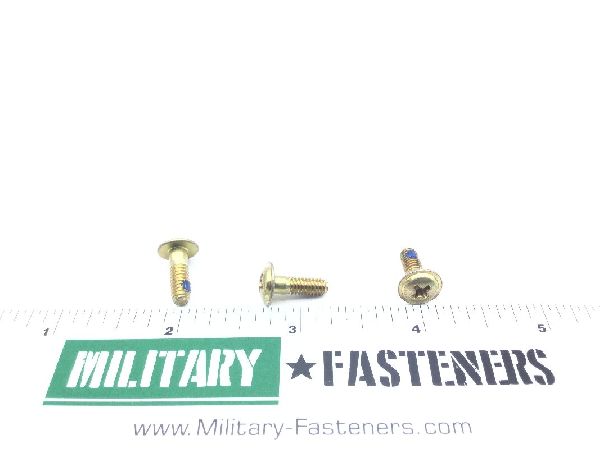

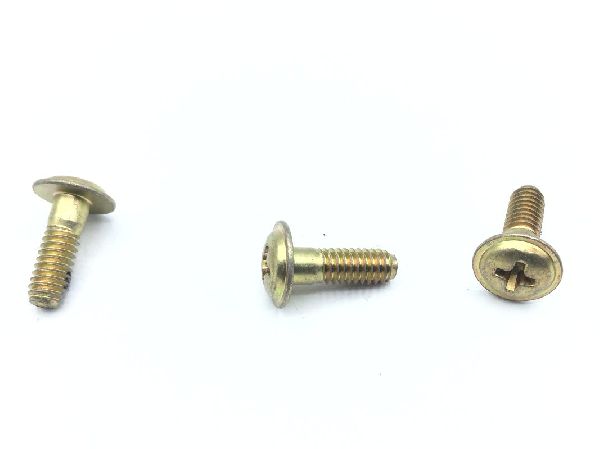

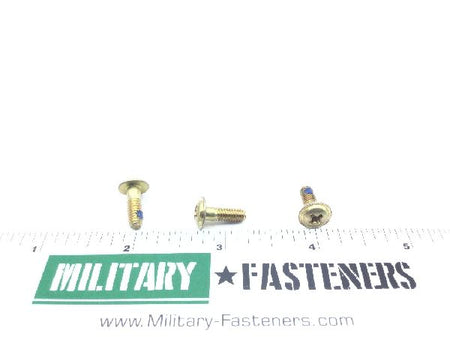

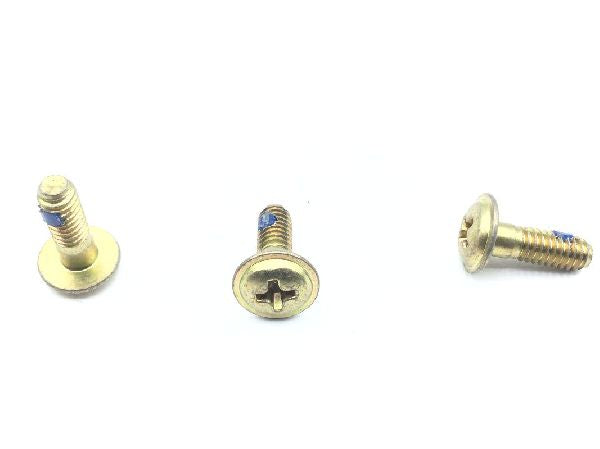

NK525-832R8 Machine Screw

NSN: 5305-00-619-4775
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Material

Steel

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: 0.023 inches
Fastener Length: 0.500 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.375 inches
Internal Drive Style: Cross recess type ii
Locking Feature: Patch threads or strip threads
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: 0.312 inches
