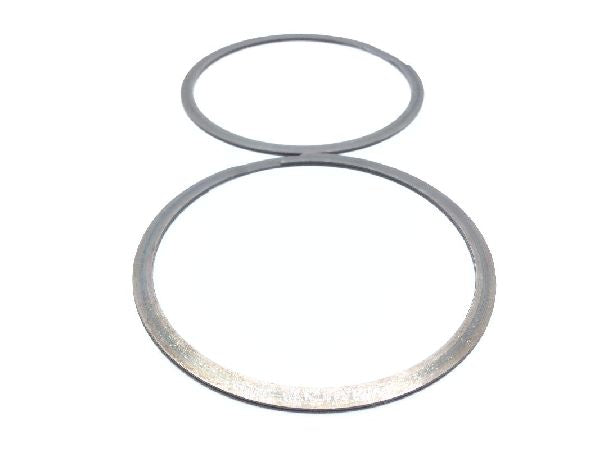

RR-295 Retaining Ring

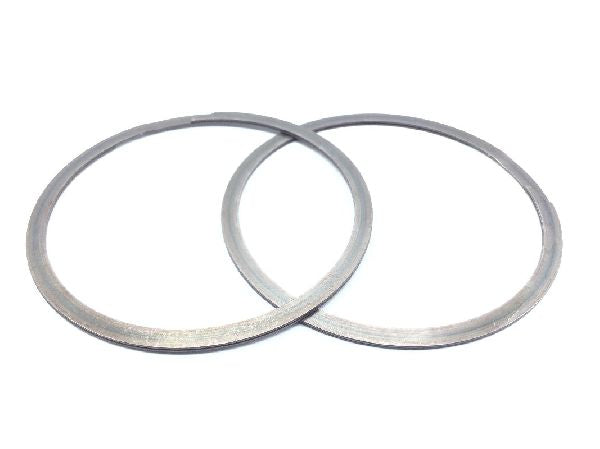

RR-295 Retaining Ring (2)

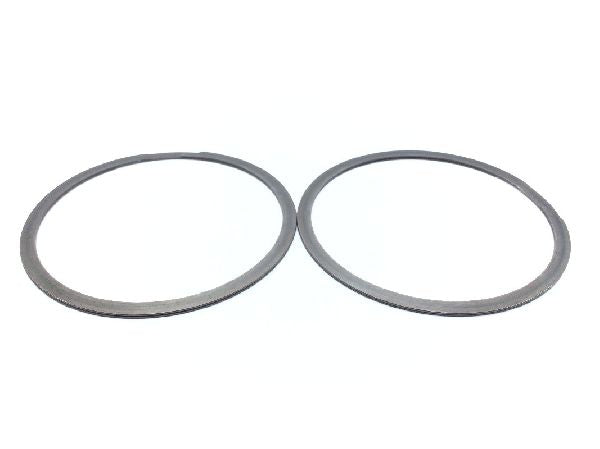

RR-295 Retaining Ring (3)

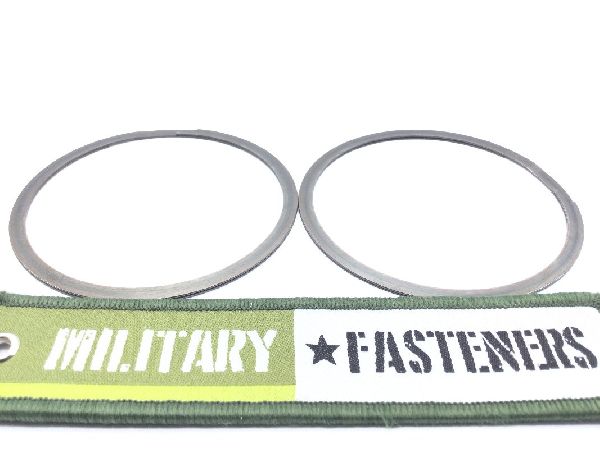

RR-295 Retaining Ring (4)

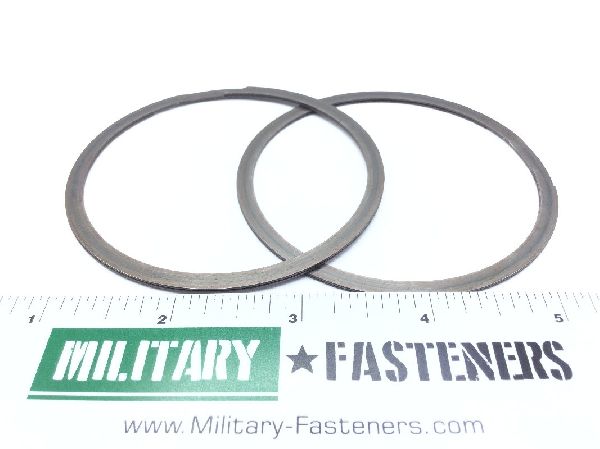

RR-295 Retaining Ring (5)

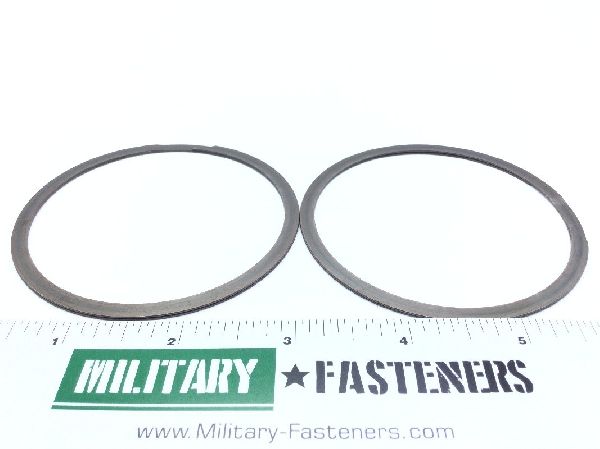

RR-295 Retaining Ring (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

RR-295 Retaining Ring

NSN: 5325-00-021-2763
ECCN: 9A991
Schedule: 7318.24.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

comp 1090 federal standard 66 comp 1086 or steel federal standard 66 comp 1085 or steel federal standard 66 comp 1084 or steel federal standard 66 comp 1080 or steel federal standard 66 comp 1078 or steel federal standard 66 comp 1075 or

Casehardening Indicator: Not case hardened
Cross Sectional Shape: Double oval
Inside Diameter: 2.737 inches
Major Thickness: Between 0.046 inches and 0.052 inches
Outside Diameter: Between 3.073 inches and 3.098 inches
Ring Style: Special flat
Strength Rating: 211000.0 pounds per square inch tensile
Usage Design: Internal
