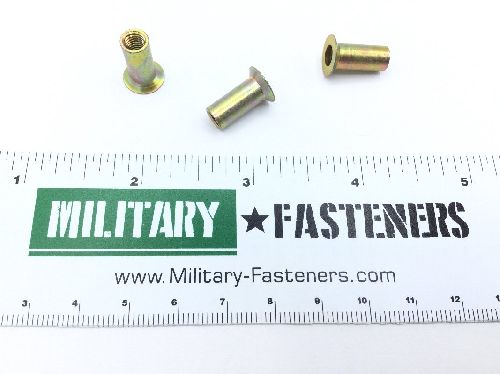

S10-116 Plain Blind Rivet Nut

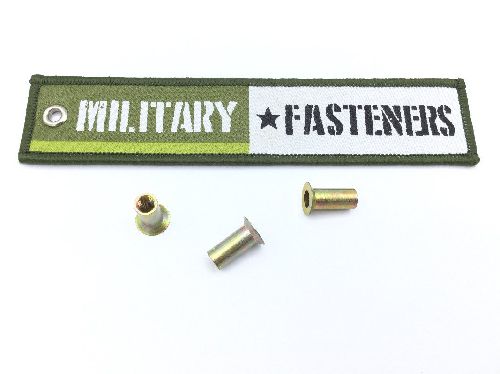

S10-116 Plain Blind Rivet Nut (2)
S10-116 Plain Blind Rivet Nut (3)
S10-116 Plain Blind Rivet Nut
S10-116 Plain Blind Rivet Nut (2)
S10-116 Plain Blind Rivet Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

S10-116 Plain Blind Rivet Nut

NSN
5310-00-953-3468
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Material
Steel comp 1108 or steel comp 1110
Thread Class
2b
Thread Series
Unf (fine thread)
Thread Size
0.190 inches
Err Default
+0.056 to 0.116 inches
Head Countersink Angle
100.00 degrees
Material Specification
Sae assn standard all material responses
Nut Diameter
Between 0.246 inches and 0.250 inches
Nut Length
Between 0.545 inches and 0.575 inches
Nut Style
Blind rivet w/smooth round shank
Shank End Type
Open
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Head Diameter
Between 0.376 inches and 0.406 inches
