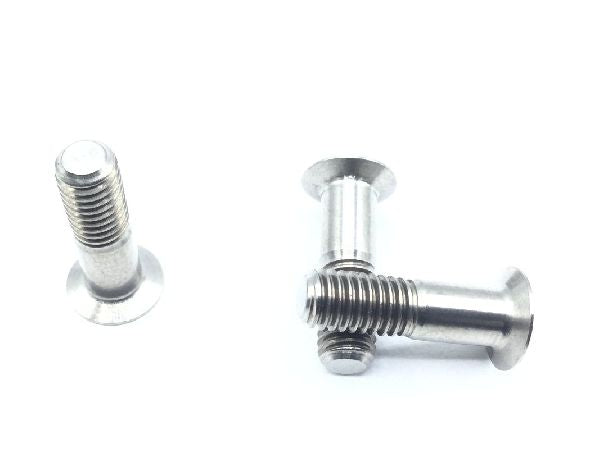

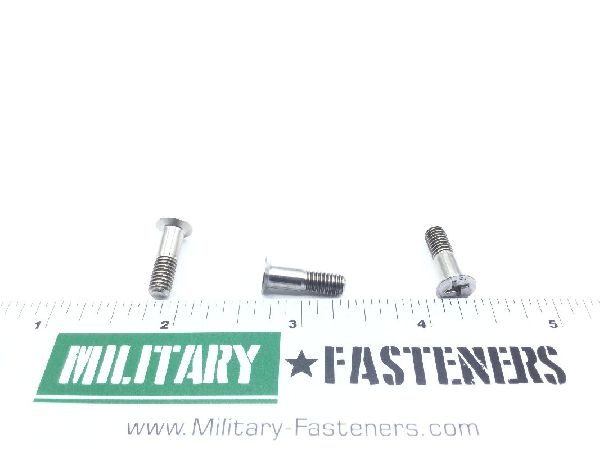

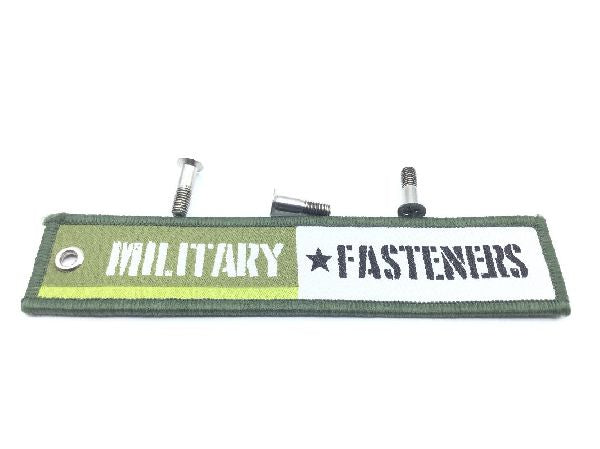

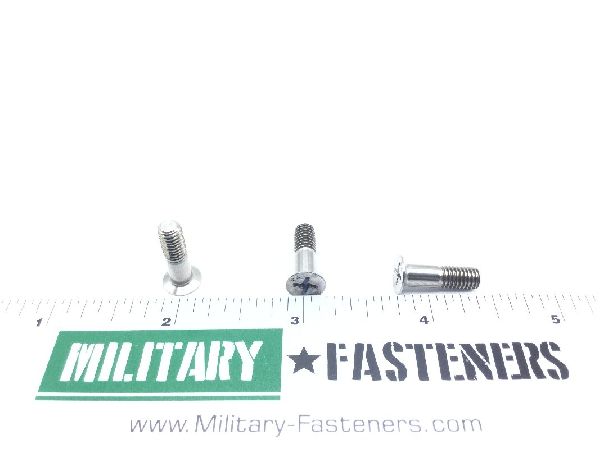

SC5053-3-5 Machine Screw

NSN: 5305-01-332-7155
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $6.58

Units per Pack 10

Price per Pack $65.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $65.80

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy uns r56400

Thread Class

Countersink Angle: Between 129.0 degrees and 131.0 degrees
Fastener Length: Between 0.660 inches and 0.690 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.302 inches and 0.322 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams4928 assn standard single material response or ams4967 assn standard single material response
Min. Tensile Strength (psi): 95000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.3206 inches and 0.4045 inches
