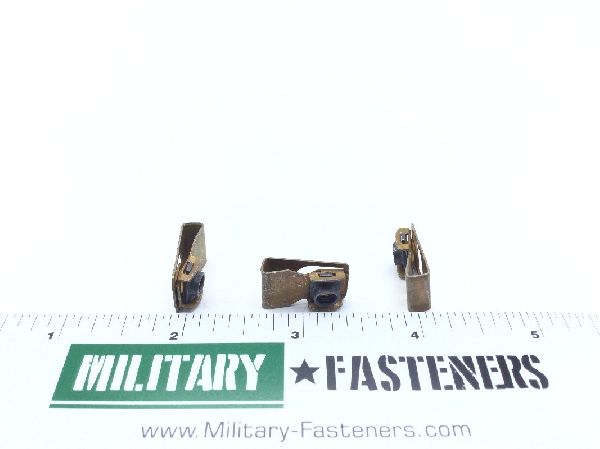

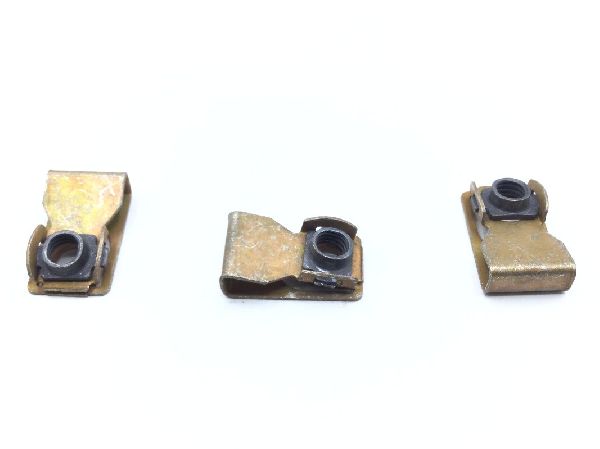

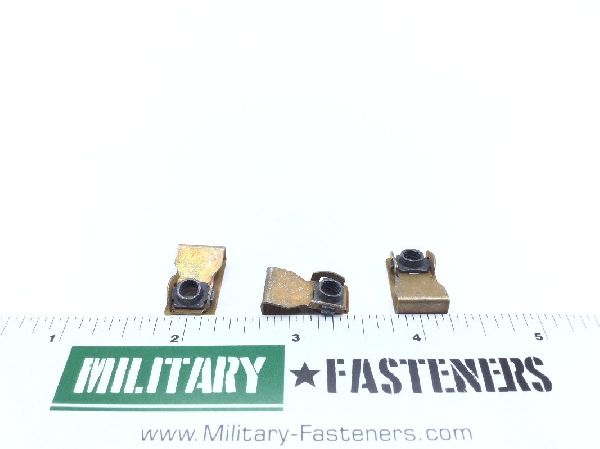

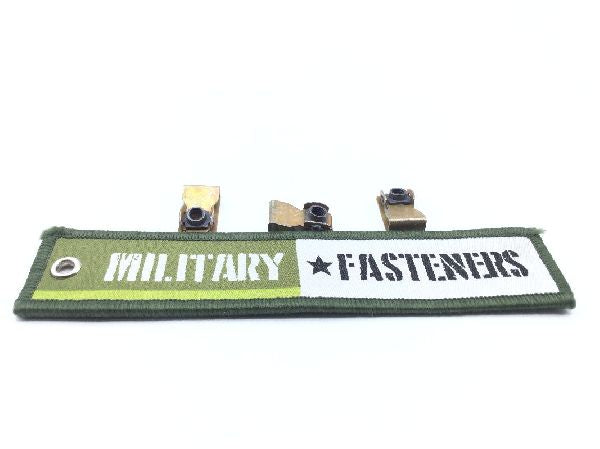

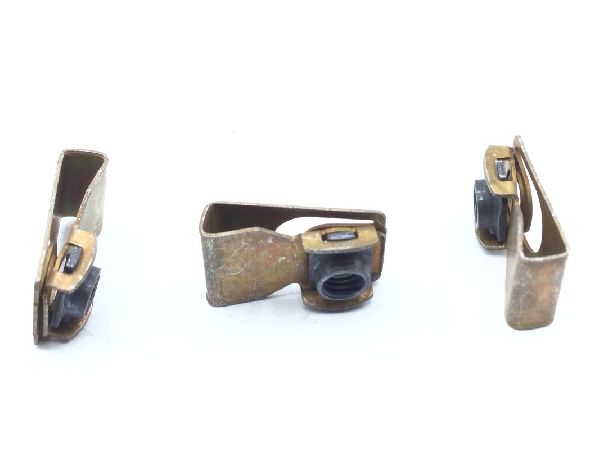

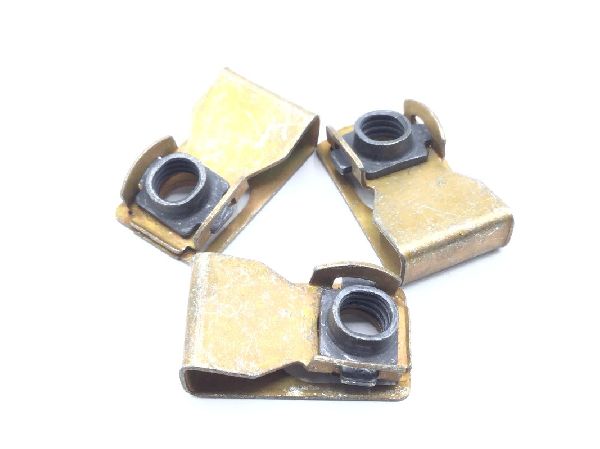

SL213-3-1 Clip-On Nut

NSN: 5310-00-815-2814
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type ii qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Distance From Base To Center Of Aperture: 0.53 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ms 5085 assn standard single material response
Nut Style: Floating
Overall Width: 0.437 inches
Panel Thickness: 0.160 inches
Tempurature Rating: 232.0 degrees celsius
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
