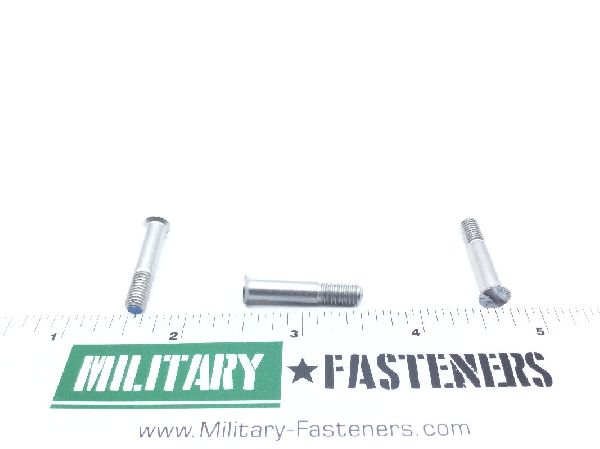

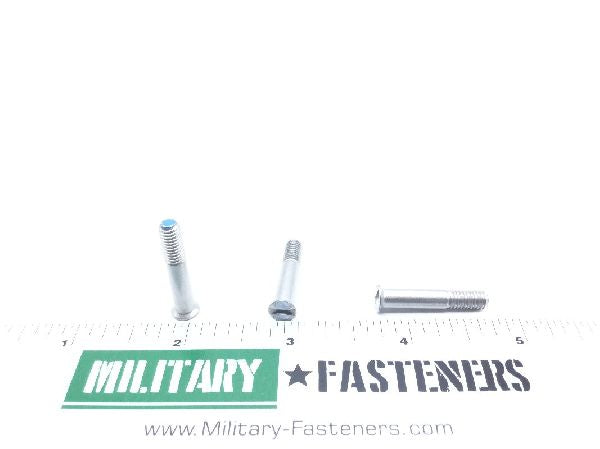

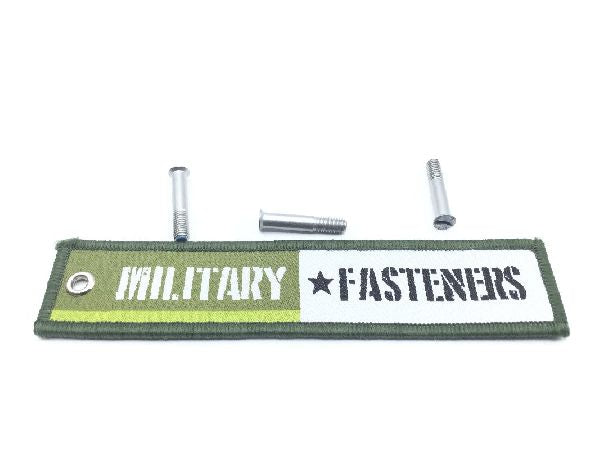

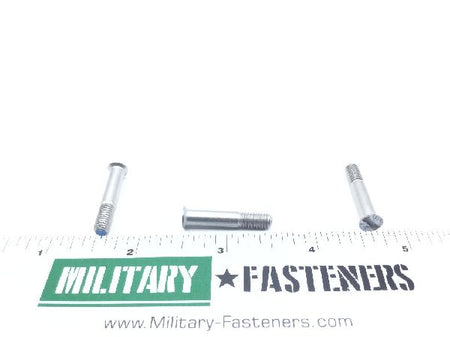

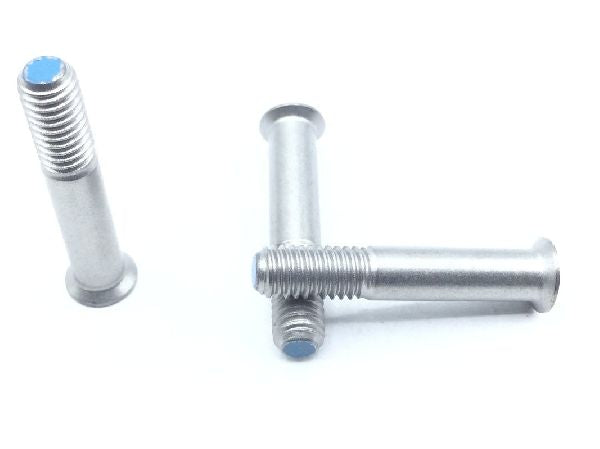

ST3M455-3L10-1 Screw

NSN: 5305-00-354-4237
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $5.89

Units per Pack 10

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Oval countersunk

Material

Stainless Steel

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.016 inches and 1.046 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.615 inches and 0.635 inches
Internal Drive Style: High-torque
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.381 inches and 0.431 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.297 inches and 0.302 inches
