NAS1097AD4-3.5

Solid Rivet

email this to someone

Description:

length: 7/32" diameter: 1/8", flush shear head, aluminum alloy, roughly 3150 pieces per pound, NAS1097 series rivet

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 15 ships same day if ordered before 4pm EST

Add item to quote

NAS1097AD4-3.5 Datasheet Features and Specification

Fastener Length:

0.219 inches nominal

Head Style:

Undersized oval countersunk

Head Height:

0.003 inches minimum and 0.005 inches maximum

Shank Diameter:

0.124 inches minimum and 0.127 inches maximum

Shank Style:

Straight w/radius chamfered tip

Head Major Diameter:

0.188 inches minimum and 0.196 inches maximum

Head Minor Diameter:

0.134 inches minimum and 0.144 inches maximum

Countersink Height:

0.032 inches minimum and 0.034 inches maximum

Countersink Angle:

70.0 degrees minimum and 130.0 degrees maximum

Part Name Assigned By Controlling Agency:

Rivet, solid, 100 deg, flush shear head, aluminum alloy

Material:

Aluminum alloy 2117 overall

Surface Treatment:

Chromate overall

Surface Treatment Specification:

Mil-c-5541 class 1a. yellow mil spec single treatment response overall

Additional Information

SKU / Model:	NAS1097AD435
NSN:	5320-01-578-9935
FSC:	Rivets / 5320
Product Series:	NAS1097AD4
Pack Weight (Approx.)	1.013 lb
Minimum Qty (MOQ):	1 Pound
ECCN:	EAR99
Download PDF Version NAS1097AD4-3.5_Military-Fasteners-com.pdf

* report an issue on this page

Frequently bought together

Other customers frequently bought these along with NAS1097AD4-3.5

NAS1097AD4-3
Solid Rivet
in Rivets

length: 3/16" diameter: 1/8", flush shear head, aluminum alloy, roughly 3575 pieces per pound. NAS1097 series rivet

NAS1097AD4-4.5
Solid Rivet
in Rivets

length: 9/32" diameter: 1/8", flush shear head, 2117-t4 aluminum alloy, roughly 2550 pieces per pound, NAS1097 series rivet

NAS1097AD4-4
Solid Rivet
in Rivets

length: 1/4" diameter: 1/8", flush shear head, 2117-t4 aluminum alloy, roughly 2800 pieces per pound, NAS1097 series rivet

NAS1097AD4-5.5
Solid Rivet
in Rivets

length: 11/32" diameter: 1/8", flush shear head, 2117-t4 aluminum alloy, roughly 2130 pieces per pound, NAS1097 series rivet

More NAS1097AD4 solid rivets

NAS1097AD4-9D

5320-01-534-1045 Solid Rivet

NAS1097AD4-9

Length: 9/16in. diameter: 1/8in., flush shear head aluminum alloy, 5320-00-917-2710

NAS1097AD4-8D

Fastener Length: 15/32"

NAS1097AD4-8A

Fastener Length: 1/2"

NAS1097AD4-8

$43.14 Pound, Length: 1/2in. diameter: 1/8in., flush shear head aluminum alloy

NAS1097AD4-7D

Fastener Length: 7/16"

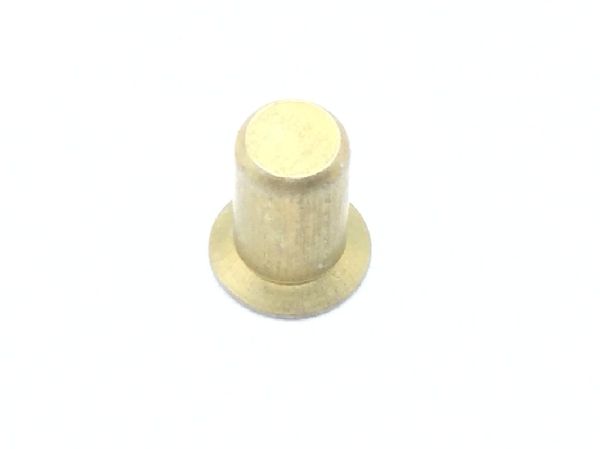

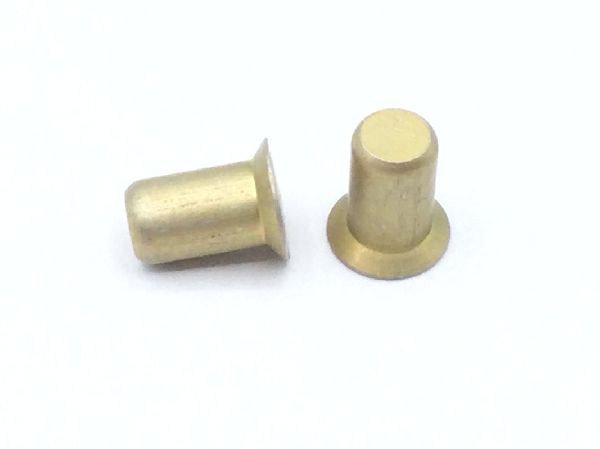

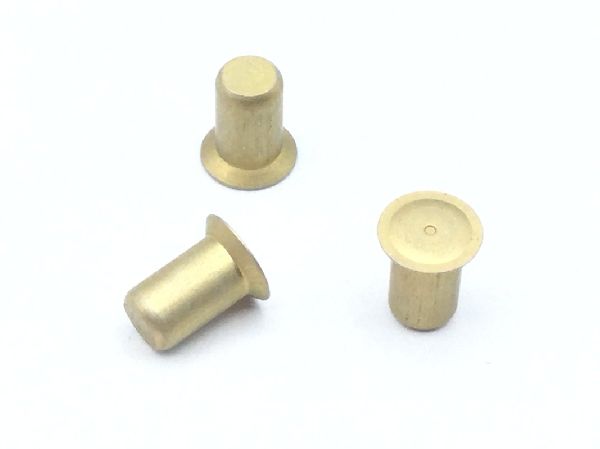

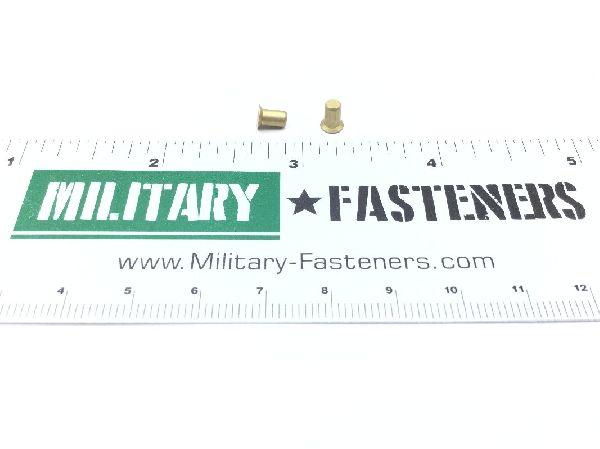

Product Image Gallery
