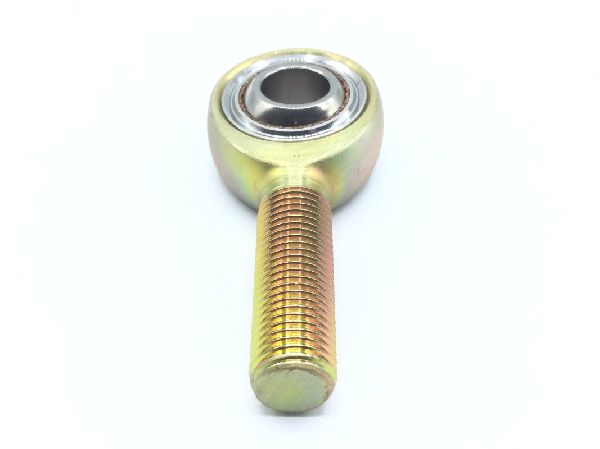

M81935/1-07

Rod End Bearing

email this to someone
Description:

M81935 series bearing

* Manufacturer certifications are shipped with your order FREE of charge
M81935/1-07
M81935/1-07
M81935/1-07
M81935/1-07
Add to Cart Up to qty 5 ships same day if ordered before 4pm EST
M81935/1-07 Price:
buy now
$81.84 Each
Quantity:
Pre-packaged bag qty: 1 ea
Add item to quote

M81935/1-07 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Shank Style:
Externally threaded
Overall Length:
2.7000 inches nominal
Bore Diameter:
0.4370 inches minimum and 0.4375 inches maximum
Outer Member Outside Diameter:
1.1400 inches minimum and 1.1600 inches maximum
Bore Center To Shank End Distance:
2.1150 inches minimum and 2.1350 inches maximum
Outer Member Width:
0.4470 inches minimum and 0.4570 inches maximum
Inner Member Width:
0.5600 inches minimum and 0.5620 inches maximum
Shank Thread Length:
1.2500 inches minimum and 1.3120 inches maximum
Static Radial Load Rating:
12000 pounds
Thread Diameter:
0.4380 inches nominal
Thready Qty Per Inch (tpi):
20
Material:
Steel comp 440c inner member
Material:
Steel comp 630 race insert
Surface Treatment:
Cadmium rod end body
Style Designator:
Ball type
Thread Series Designator:
Unjf

Additional Information

SKU / Model: M81935107
NSN: 3120-01-144-1522
FSC: Bearings, Plain, Unmounted / 3120
Product Series: M81935/1
Pack Weight (Approx.) 0.205 lb
Minimum Qty (MOQ): 1
ECCN: EAR99
National Motor Freight: 114850, Bearing / Bushing O / T Ball / Roller I / S
Download PDF Version
M81935/1-07_Military-Fasteners-com.pdf
