AN173-4

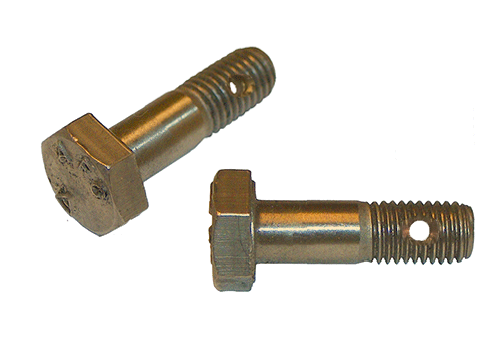

Aeronautical Standard Close Tolerance Bolt

email this to someone
Description:

length: 17/32", grip: 1/8", thread: 10-32, cadmium plated steel drilled shank"

* Manufacturer certifications are shipped with your order FREE of charge
no image available
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

AN173-4 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.406 inches minimum
Fastener Length:
0.531 inches nominal
Head Style:
Hexagon
Head Height:
0.109 inches minimum and 0.141 inches maximum
Width Between Flats:
0.365 inches minimum and 0.377 inches maximum
Grip Diameter:
0.1889 inches minimum and 0.1894 inches maximum
Shank Unthreaded Hole Diameter:
0.070 inches nominal first hole
Thread Diameter:
0.190 inches
Grip Length:
0.125 inches nominal
Thready Qty Per Inch (tpi):
32
Min. Tensile Strength (psi):
125000 pounds per square inch
Hardness Rating:
26.0 rockwell c minimum overall and 32.0 rockwell c maximum overall
Distance From Head Largest Bearing Surface To Shank Hole Center:
0.391 inches nominal first hole
Surface Finish:
63.0 microinches bearing surface of head
Surface Finish:
63.0 microinches grip
Material:
Steel comp 8740 overall or steel comp 8630 overall or steel comp 8735 overall or steel comp 4037 overall or steel comp 4140 overall or steel comp 4130 overall
Material Specification:
Mil-s-6049 mil spec 1st material response overall or mil-s-6050 mil spec 2nd material response overall or mil-s-6098 mil spec 3rd material response overall or ams 6300 assn std 4th material response overall or mil-s-5626 mil spec 5th material response overall or mil-s-6758 mil spec 6th material response overall
Surface Treatment:
Cadmium overall and chromate overall
Surface Treatment Specification:
Qq-p-416,type 2,class 3 fed spec single treatment response overall
Thread Series Designator:
Unf
Quick Specs
Thread Size 10
Thread Qty 32
Material Steel
Length 1/2

Additional Information

SKU / Model: AN1734
NSN: 5306-00-968-2382
FSC: Bolts / 5306
Product Series: AN173
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 10
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
AN173-4_Military-Fasteners-com.pdf
