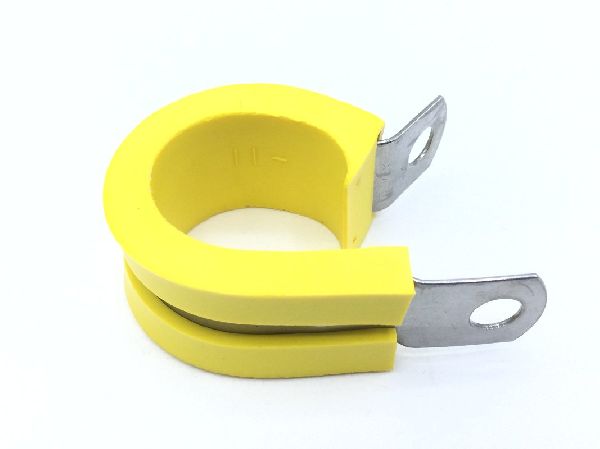

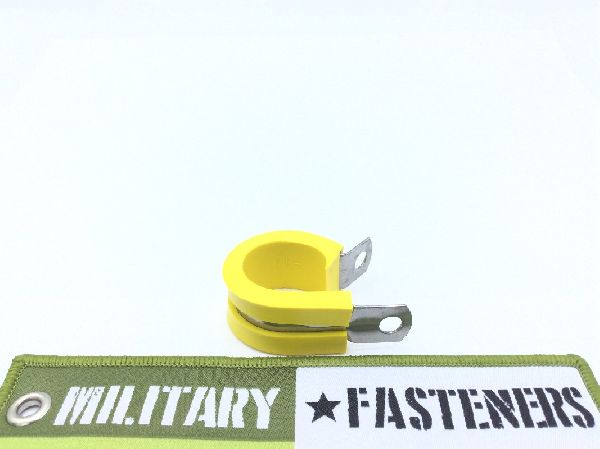

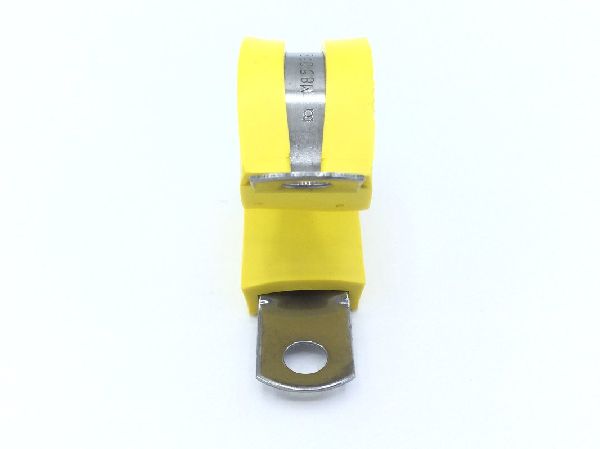

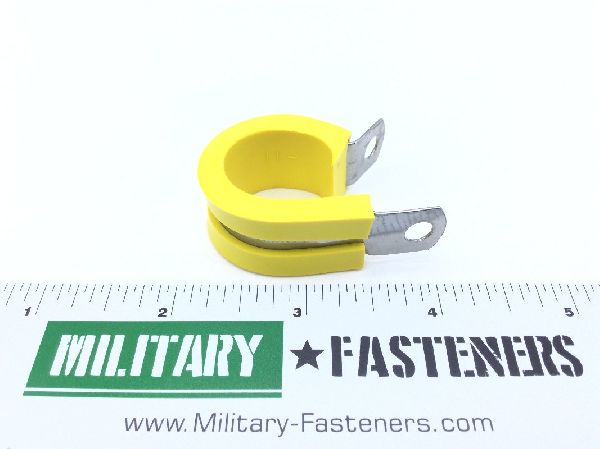

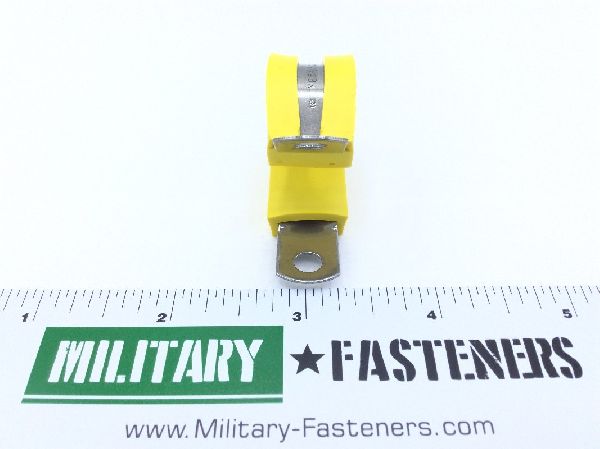

M85052/1-12

Loop Clamp

email this to someone
Description:

diameter: 3/4", single loop style, corrosion resistant, yellow, fuel and petroleum based hydraulic fluid resistant, M85052 series clamp

* Manufacturer certifications are shipped with your order FREE of charge
M85052/1-12
M85052/1-12
M85052/1-12
M85052/1-12
M85052/1-12
M85052/1-12
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

M85052/1-12 Datasheet Features and Specification

Center To Center Distance Between Loop And Mounting Hole:
Between 0.820 inches and 0.850 inches
Cushioning Environmental Protection:
Fuel resistant and hydraulic fluid
Diameter:
Between 0.194 inches and 0.209 inches
Distance From Loop Center To Tongue End:
1.053 inches
Loop Inside Diameter:
0.750 inches
Material:
Steel comp 631 band
Material Specification:
Mil-s-25043 military specification single material response band
Material Thickness:
Between 0.030 inches and 0.034 inches
Overall Width:
0.500 inches
Special Features:
Cushion is ozone resistant
Style Designator:
Offset mount
Surface Treatment:
Passivate band
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response band
Tongue Hole Type:
Unthreaded round
Quick Specs
Material Steel

Additional Information

SKU / Model: M85052112
NSN: 5340-01-121-2862
FSC: Hardware, Commercial / 5340
Product Series: M85052/1
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 1
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
M85052/1-12_Military-Fasteners-com.pdf
