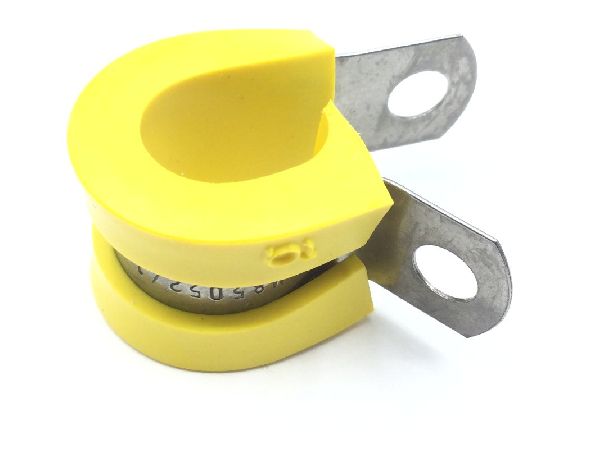

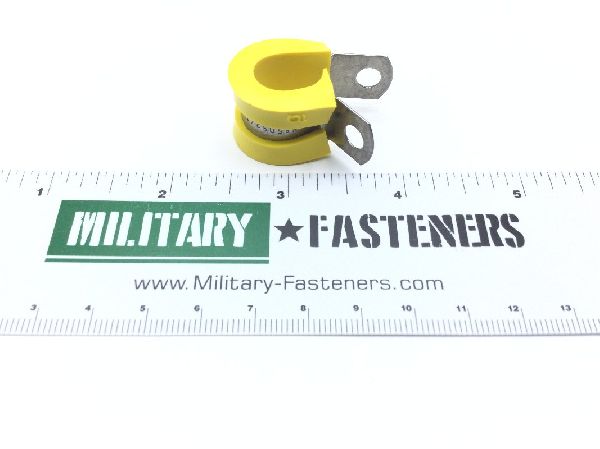

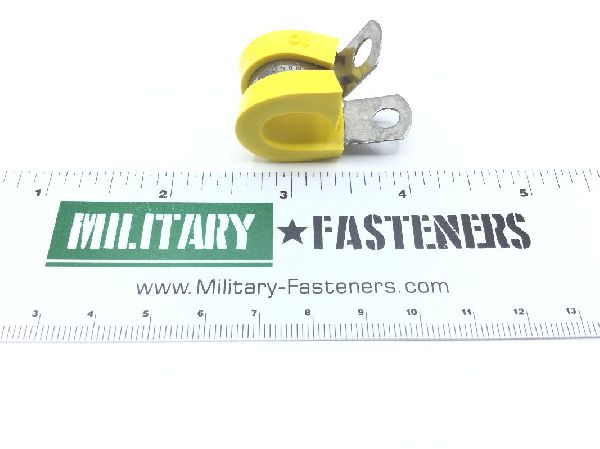

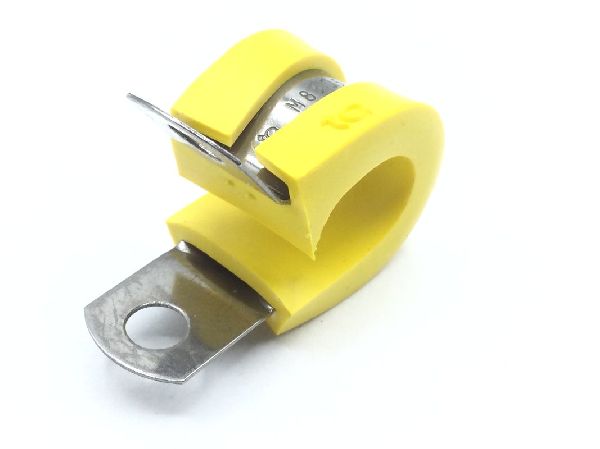

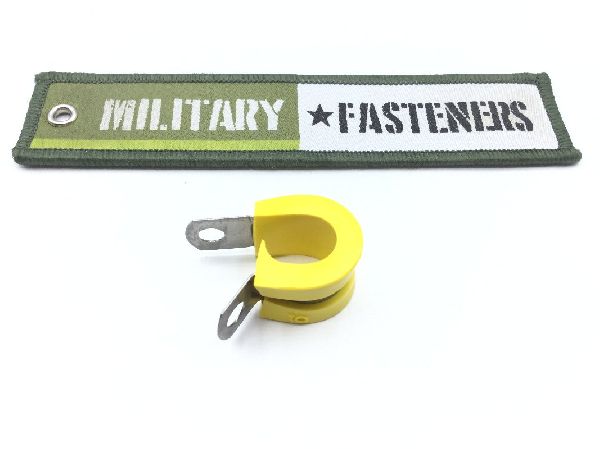

M85052/1-7

Loop Clamp

email this to someone
Description:

Diameter: 13/64", steel comp 631 band

* Manufacturer certifications are shipped with your order FREE of charge
M85052/1-7
M85052/1-7
M85052/1-7
M85052/1-7
M85052/1-7
M85052/1-7
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

M85052/1-7 Datasheet Features and Specification

Tongue Hole Type:
Round, unthreaded
Cushioning Environmental Protection:
Fuel resistant and hydraulic fluid
Overall Width:
0.500 inches nominal
Diameter:
0.194 inches minimum and 0.209 inches maximum
Material Thickness:
0.018 inches minimum and 0.022 inches maximum
Center To Center Distance Between Loop And Mounting Hole:
0.609 inches minimum and 0.639 inches maximum
Distance From Loop Center To Tongue End:
0.842 inches nominal
Loop Inside Diameter:
0.438 inches nominal
Special Features:
Cushion also ozone resistant
Material:
Rubber synthetic cushion
Material:
Steel comp 631 band
Material Specification:
Mil-s-25043 mil spec single material response band
Surface Treatment:
Passivate band
Surface Treatment Specification:
Qq-p-35 fed spec single treatment response band
Style Designator:
Offset mount

Additional Information

SKU / Model: M8505217
NSN: 5340-01-129-5593
FSC: Hardware, Commercial / 5340
Product Series: M85052/1
Pack Weight (Approx.) 0.400 lb
Minimum Qty (MOQ): 2
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
M85052/1-7_Military-Fasteners-com.pdf
