M85052/1-9

Loop Clamp

email this to someone
Description:

Diameter: 13/64", steel comp band, M85052 series clamp

* Manufacturer certifications are shipped with your order FREE of charge
M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

M85052/1-9 Datasheet Features and Specification

Tongue Hole Type:
Round, unthreaded
Cushioning Environmental Protection:
Fuel resistant and hydraulic fluid
Overall Width:
0.500 inches nominal
Diameter:
0.194 inches minimum and 0.209 inches maximum
Material Thickness:
0.030 inches minimum and 0.034 inches maximum
Center To Center Distance Between Loop And Mounting Hole:
0.726 inches minimum and 0.756 inches maximum
Distance From Loop Center To Tongue End:
0.959 inches nominal
Loop Inside Diameter:
0.562 inches nominal
Special Features:
Cushion also ozone resistant
Material:
Rubber synthetic cushion
Material:
Steel comp 631 band
Material Specification:
Mil-s-25043 mil spec single material response band
Surface Treatment:
Passivate band
Surface Treatment Specification:
Qq-p-35 fed spec single treatment response band
Style Designator:
Offset mount

Additional Information

Alternate Part Numbers

  • M85052-1-9
SKU / Model: M8505219
NSN: 5340-01-132-0601
FSC: Hardware, Commercial / 5340
Product Series: M85052/1
Pack Weight (Approx.) 0.133 lb
Minimum Qty (MOQ): 5
Schedule B: 7307.29.0090
ECCN: 9A991
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
M85052/1-9_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

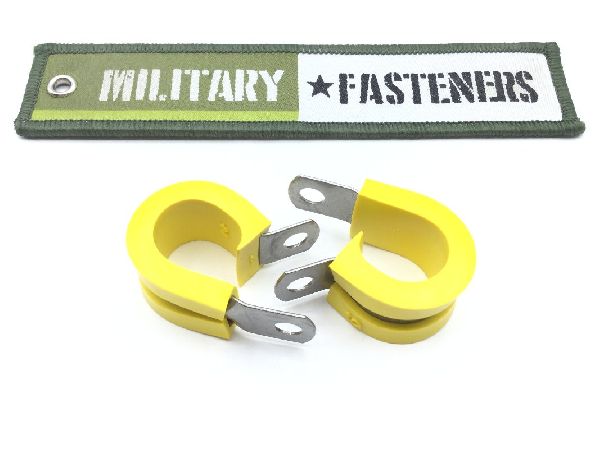

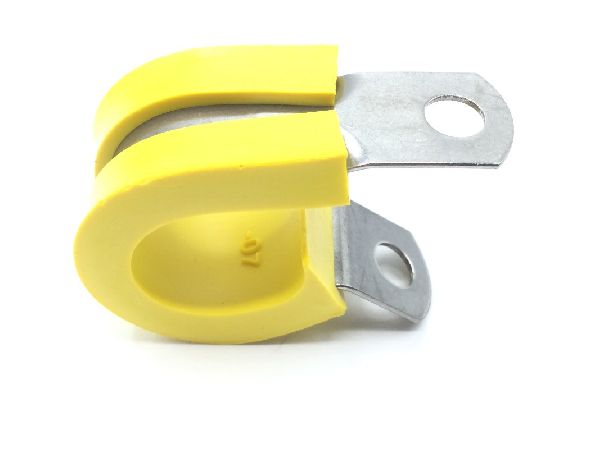

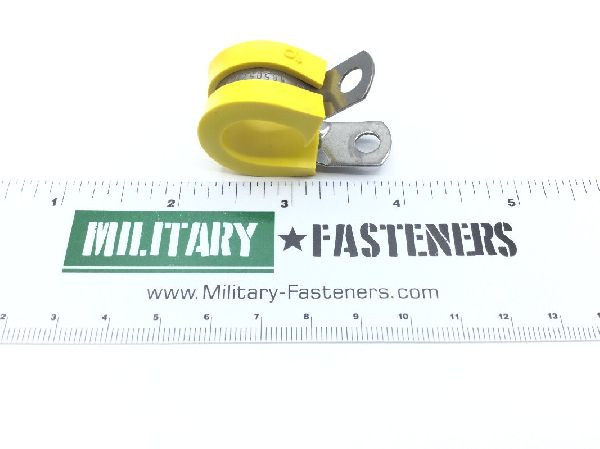

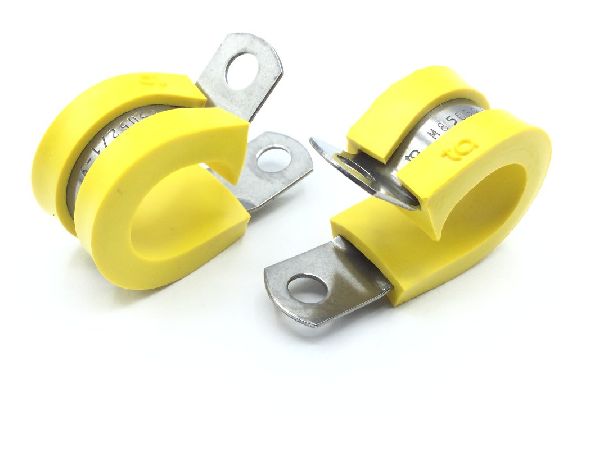

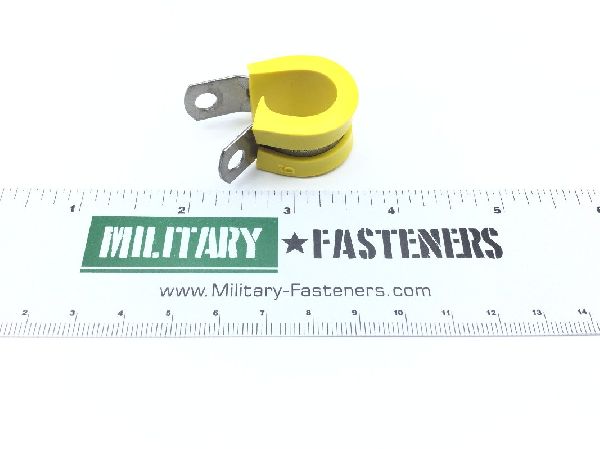

Product Image Gallery

Product code M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
M85052/1-9
