M85052/3-12

Loop Clamp

email this to someone
Description:

diameter: 3/4", single loop style, corrosion resistant, high strength silicone fabric, used primarily with turbine engines, blue color

* Manufacturer certifications are shipped with your order FREE of charge
M85052/3-12
M85052/3-12
M85052/3-12
M85052/3-12
M85052/3-12
M85052/3-12
Add to Cart Up to qty 60 ships same day if ordered before 4pm EST
M85052/3-12 Price:
buy now
$30.00 Each
Quantity:
Pre-packaged bag qty: 2 ea
* Sold in increments of 2
Add item to quote

M85052/3-12 Datasheet Features and Specification

Material Thickness:
Between 0.030 inches and 0.034 inches
Material Specification:
Mil-s-25043 military specification single material response band
Material Specification:
Ta88-50 fscm 84971 mfr ref single material response cushion
Material:
Steel comp 631 band
Loop Inside Diameter:
0.750 inches
Material:
Rubber silicone class q cushion
Distance From Loop Center To Tongue End:
1.053 inches
Diameter:
Between 0.194 inches and 0.209 inches
Cushioning Environmental Protection:
Heat and fuel resistant
Center To Center Distance Between Loop And Mounting Hole:
Between 0.820 inches and 0.850 inches
Overall Width:
0.500 inches
Style Designator:
Offset mount
Surface Treatment:
Passivate band
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response band
Tongue Hole Type:
Unthreaded round
Quick Specs
Material Rubber

Additional Information

Alternate Part Numbers

  • M85052-3-12
SKU / Model: M85052312
NSN: 5340-01-126-9180
FSC: Hardware, Commercial / 5340
Product Series: M85052/3
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 2
ECCN: EAR99
National Motor Freight: 095190, Hardware, Noi Sub 9
Download PDF Version
M85052/3-12_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

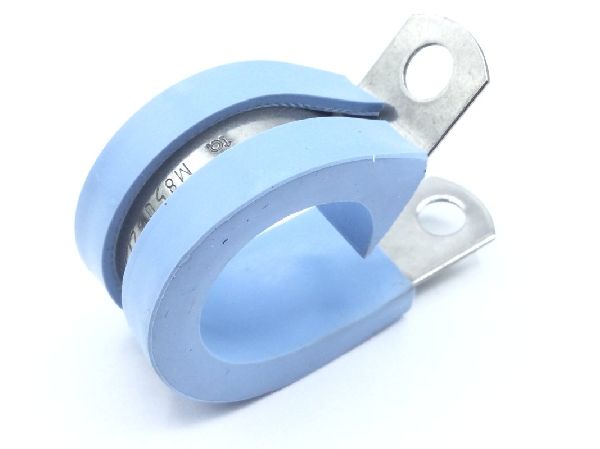

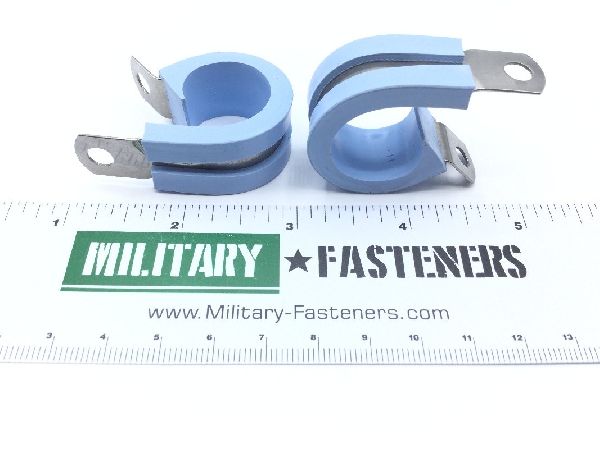

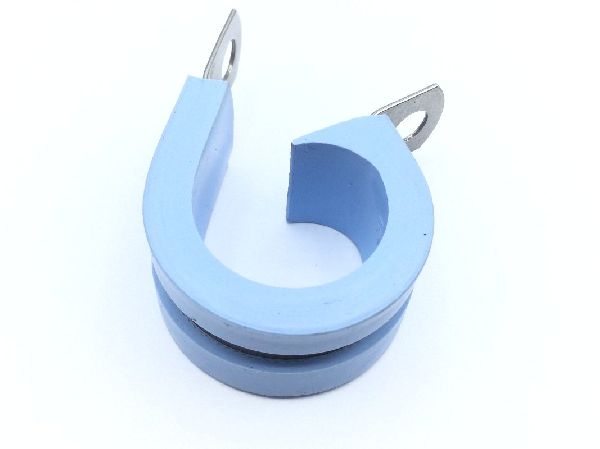

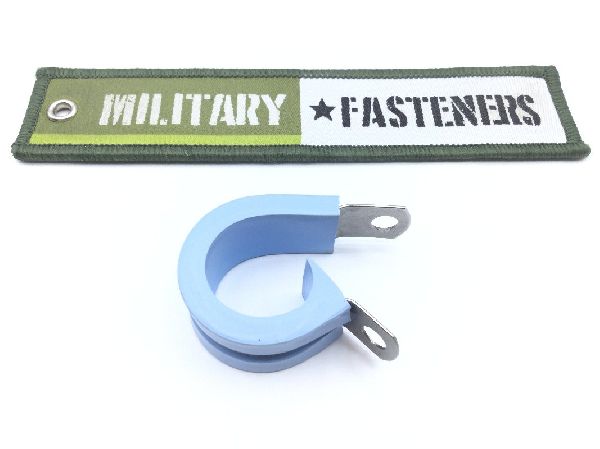

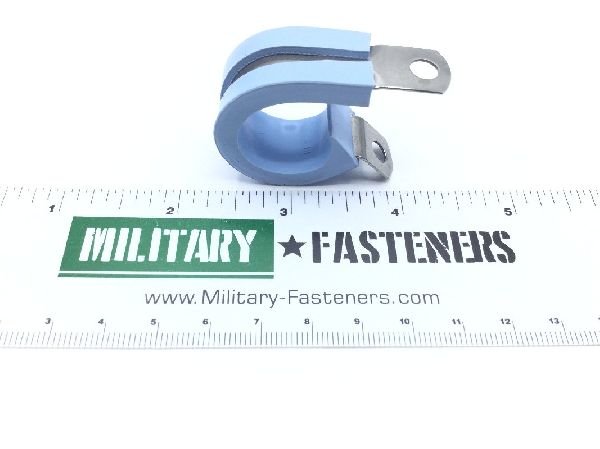

Product Image Gallery
