M39029/11-145
Electrical Contact
email this to someone
Description:
* Manufacturer certifications are shipped with your order
FREE of charge

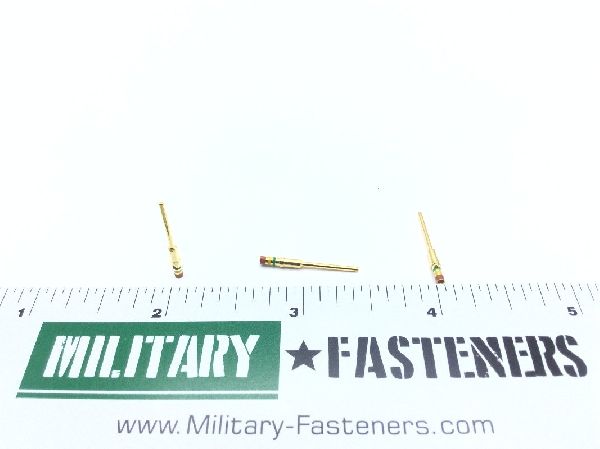

male pin, size 20, fits series: mil-c-81659 series, use insertion / removal tool m81969/1-02
Add to Cart
Up to qty 250 ships same day if ordered before 4pm EST
Add item to quote
M39029/11-145 Datasheet Features and Specification
Identification Code Color:
Red
Overall Length:
0.770 inches minimum and 0.790 inches maximum
Pin Diameter:
0.039 inches minimum and 0.041 inches maximum
Overall Diameter:
0.082 inches minimum and 0.084 inches maximum
Cable Entrance Diameter:
0.068 inches minimum and 0.071 inches maximum
Retention Groove Diameter:
0.070 inches minimum and 0.073 inches maximum
Pin Length:
0.445 inches minimum and 0.446 inches maximum
Mounting Method:
Force fit
Special Features:
Basic item identification number bin-145
Material:
Copper alloy contact
Material:
Copper alloy body
Precious Material And Location:
Body and contact surfaces gold
Precious Material And Weight:
0.010 gold grains, troy
Precious Material:
Gold
Surface Treatment:
Gold body and contact
Surface Treatment Specification:
Mil-g-45204,type 1,class 2,grade c mil spec single treatment response body and contact
Style Designator:
Pin contact
Test Data Document:
81349-mil-c-39029 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Terminal Type And Quantity:
1 crimp axially at one end
Specification Data:
81349-mil-c-39029/11 government specification
Additional Information
| SKU / Model: | M3902911145 |
| NSN: | 5999-00-201-0301 |
| FSC: | Miscellaneous Electrical and Electronic Components / 5999 |
| Product Series: | M39029/11 |
| Pack Weight (Approx.) | 0.314 lb |
| Minimum Qty (MOQ): | 50 |
| ECCN: | EAR99 |
| National Motor Freight: | 061300, Circuit Breaker / Switch Noi |
|
Download PDF Version M39029/11-145_Military-Fasteners-com.pdf |
|
|
|
