M39029/11-146

Name: Electrical Contact
SKU: M39029/11-146
Price: 3.15 USD
Availability: InStock

Electrical Contact

email this to someone

Description:

Male pin, size 16, fits series: mil-c-81659 series, use insertion/removal tool m81969/1-01

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Backordered: Ships in 2-3 Days

M39029/11-146 Price:	$3.15 Each
Quantity: Pre-packaged bag qty: 20 ea
* Sold in increments of 20

Add item to quote

M39029/11-146 Datasheet Features and Specification

Identification Code Color:

Brown and yellow and blue

Overall Length:

0.994 inches minimum and 1.014 inches maximum

Pin Diameter:

0.0615 inches minimum and 0.0635 inches maximum

Overall Diameter:

0.130 inches minimum and 0.134 inches maximum

Cable Entrance Diameter:

0.066 inches minimum and 0.068 inches maximum

Pin Length:

0.525 inches nominal

Mounting Method:

Terminal

Crimping Tool Identifying Number:

M22520/1-01

Material:

Copper alloy body and contact

Precious Material And Location:

Body and contact surfaces gold

Precious Material And Weight:

0.005 gold grains, troy

Precious Material:

Gold

Surface Treatment:

Gold body and contact

Surface Treatment Specification:

Mil-g-45204 mil spec single treatment response body and contact

Style Designator:

Pin contact

Test Data Document:

Sae as39029 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

Terminal Type And Quantity:

1 pin end opposite contact

Additional Information

SKU / Model:	M3902911146
NSN:	5999-01-095-3494
FSC:	Miscellaneous Electrical and Electronic Components / 5999
Product Series:	M39029/11
Pack Weight (Approx.)	0.385 lb
Minimum Qty (MOQ):	20
ECCN:	EAR99
National Motor Freight:	061300, Circuit Breaker / Switch Noi
Download PDF Version M39029/11-146_Military-Fasteners-com.pdf

* report an issue on this page

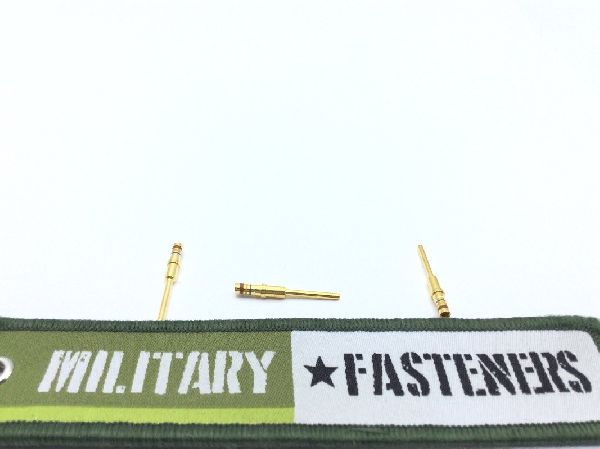

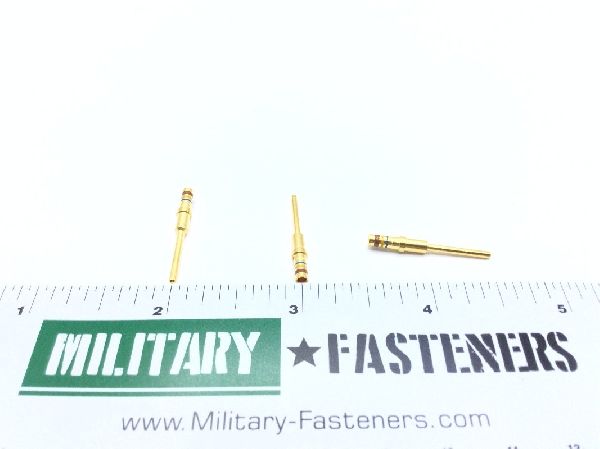

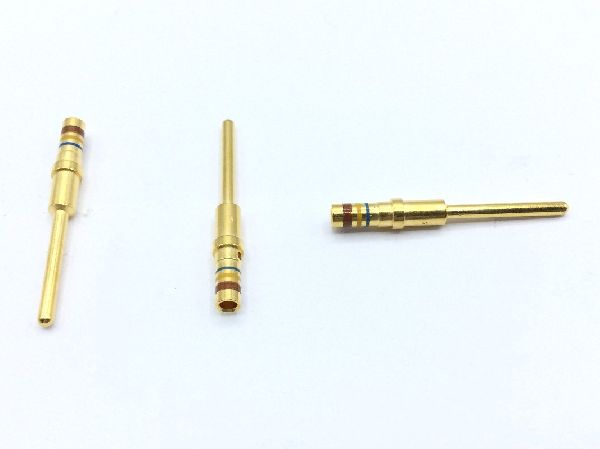

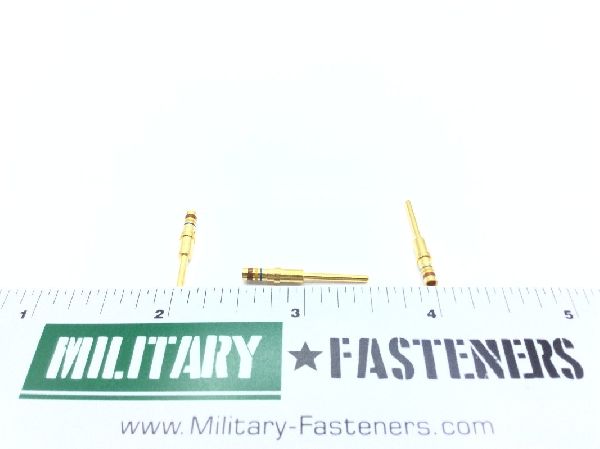

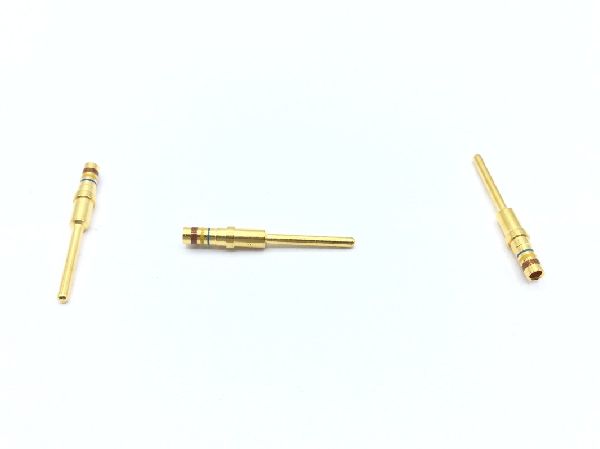

Product Image Gallery

Product code M39029/11-146
