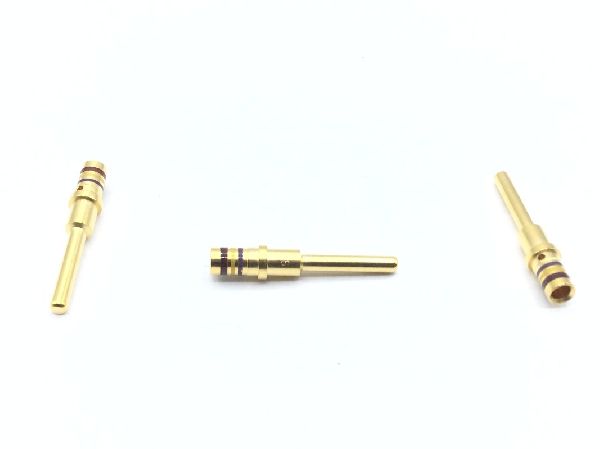

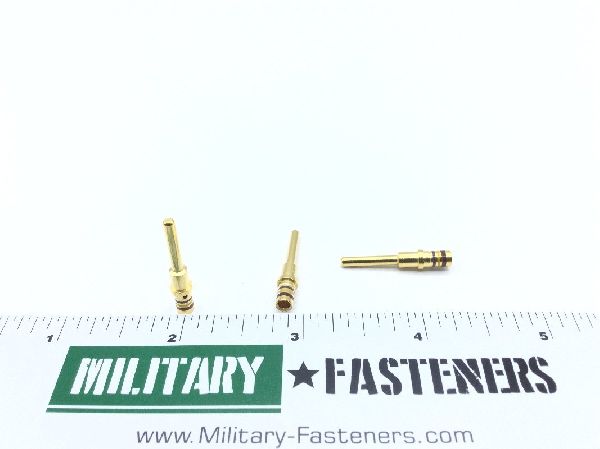

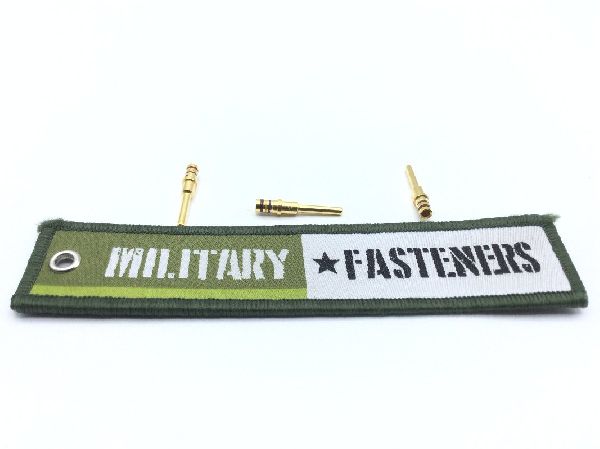

M39029/11-147

Electrical Contact

email this to someone
Description:

Male pin, size 12, fits series: mil-c-81659 series, use insertion/removal tool m81969/1-01

* Manufacturer certifications are shipped with your order FREE of charge
M39029/11-147
M39029/11-147
M39029/11-147
M39029/11-147
M39029/11-147
Add to Cart Up to qty 60 ships same day if ordered before 4pm EST
M39029/11-147 Price:
buy now
$10.39 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

M39029/11-147 Datasheet Features and Specification

Cable Entrance Diameter:
Between 0.098 inches and 0.102 inches
Iii Style Designator:
Pin contact
Material:
Copper alloy body and contact
Material Specification:
Mil-c-39029/11 military specification single material response body and contact
Mounting Method:
Force fit
Overall Diameter:
0.190 inches
Overall Length:
1.017 inches
Pin Diameter:
Between 0.093 inches and 0.095 inches
Pin Length:
Between 0.705 inches and 0.715 inches
Precious Material:
Gold
Precious Material And Location:
Body and contact surfaces gold
Precious Material And Weight:
Troy 0.005 gold grains
Specification Data:
81349-mil-c-39029/11 government specification
Surface Treatment:
Gold body and contact
Surface Treatment Specification:
Mil-g-45204 military specification single treatment response body and contact
Terminal Type And Quantity:
1 crimp end opposite contact
Test Data Document:
Etc.).
Quick Specs
Material Copper

Additional Information

SKU / Model: M3902911147
NSN: 5999-01-293-9215
FSC: Miscellaneous Electrical and Electronic Components / 5999
Product Series: M39029/11
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
ECCN: EAR99
National Motor Freight: 061300, Circuit Breaker / Switch Noi
