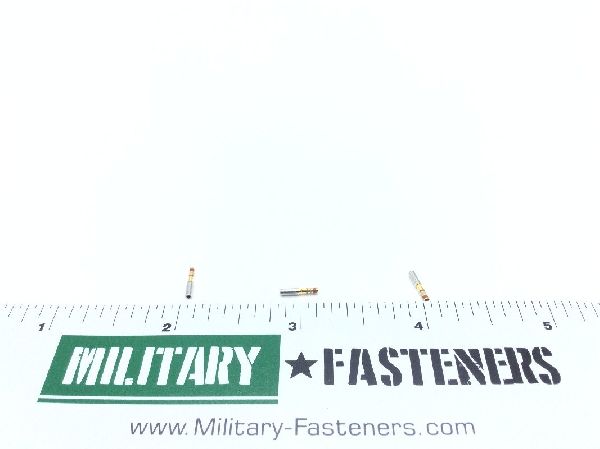

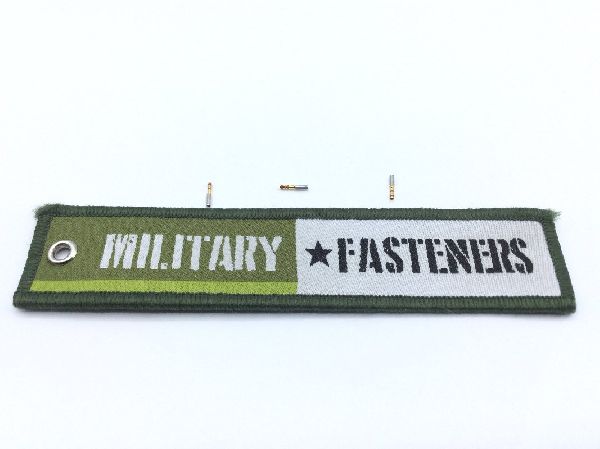

M39029/22-191
Electrical Contact
email this to someone
Description:
* Manufacturer certifications are shipped with your order
FREE of charge
socket, size 22, fits series: mil-t-81714 terminal junction
Add to Cart
Up to qty 500 ships same day if ordered before 4pm EST
Add item to quote
M39029/22-191 Datasheet Features and Specification
Identification Code Color:
Brown and white and brown
Overall Length:
0.327 inches nominal
Overall Diameter:
0.060 inches minimum and 0.061 inches maximum
Cable Entrance Diameter:
0.025 inches nominal
Pin Accommodation Length:
0.120 inches minimum and 0.137 inches maximum
Pin Accommodation Diameter:
0.032 inches nominal
Current Rating In Amps:
5.0
Mounting Method:
Force fit
Crimping Tool Identifying Number:
M22520/7-01
Material:
Copper alloy contact
Material:
Copper alloy body
Precious Material And Location:
Shell and contact surfaces silver
Precious Material And Weight:
0.005 silver grains, troy
Precious Material:
Silver
Surface Treatment:
Silver body
Surface Treatment:
Silver contact
Style Designator:
Socket contact
Test Data Document:
81343-as39029 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Terminal Type And Quantity:
1 crimp end opposite contact
Additional Information
Alternate Part Numbers
- M39029-22-191
| SKU / Model: | M3902922191 |
| NSN: | 5999-01-068-9548 |
| FSC: | Miscellaneous Electrical and Electronic Components / 5999 |
| Product Series: | M39029/22 |
| Pack Weight (Approx.) | 0.135 lb |
| Minimum Qty (MOQ): | 50 |
| ECCN: | EAR99 |
| National Motor Freight: | 061300, Circuit Breaker / Switch Noi |
|
Download PDF Version M39029/22-191_Military-Fasteners-com.pdf |
|
|
|
