M39029/30-217

Name: Electrical Contact
SKU: M39029/30-217
Price: 2.05 USD
Availability: InStock

Electrical Contact

email this to someone

Description:

socket, size 16s, fits series: mil-t-5015 series ms3450, mil-c-83733 ser ii, use insertion / removal tool m81969/14-03

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart

Up to qty 1000 ships same day if ordered before 4pm EST

M39029/30-217 Price:	buy now $2.05 Each
Quantity: Pre-packaged bag qty: 20 ea
* Sold in increments of 20

Add item to quote

M39029/30-217 Datasheet Features and Specification

Cable Entrance Diameter:

0.068 inches

Material:

Copper alloy contact

Material:

Copper alloy body

Mounting Method:

Force fit

Overall Length:

0.911 inches

Pin Accommodation Diameter:

0.068 inches

Pin Accommodation Length:

0.399 inches

Precious Material:

Gold

Precious Material And Location:

External surface gold

Precious Material And Weight:

troy 0.005 gold grains

Special Features:

Basic item identification number bin-217

Style Designator:

Socket contact

Surface Treatment:

Gold body and contact

Surface Treatment Specification:

Grade c military specification single treatment response body and contact class 2 type 1 mil-g-45204

Terminal Type And Quantity:

1 crimp axially at one end

Test Data Document:

etc.).

Quick Specs

Material

Copper

Additional Information

Alternate Part Numbers

M39029-30-217

SKU / Model:	M3902930217
NSN:	5999-01-041-3754
FSC:	Miscellaneous Electrical and Electronic Components / 5999
Product Series:	M39029/30
Pack Weight (Approx.)	0.042 lb
Minimum Qty (MOQ):	20
ECCN:	EAR99
National Motor Freight:	061680, Elec Wiring Plugs Etc
Download PDF Version M39029/30-217_Military-Fasteners-com.pdf

* report an issue on this page

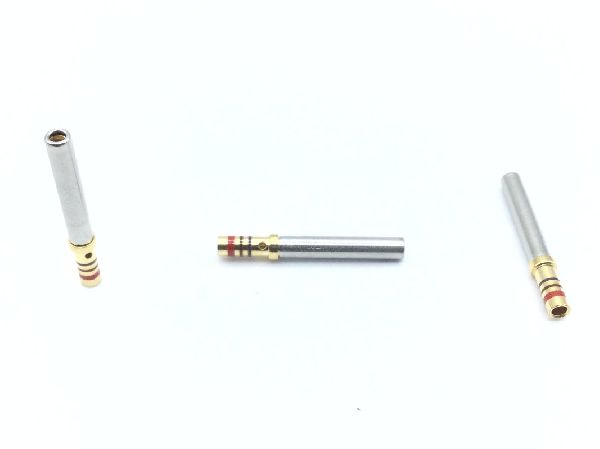

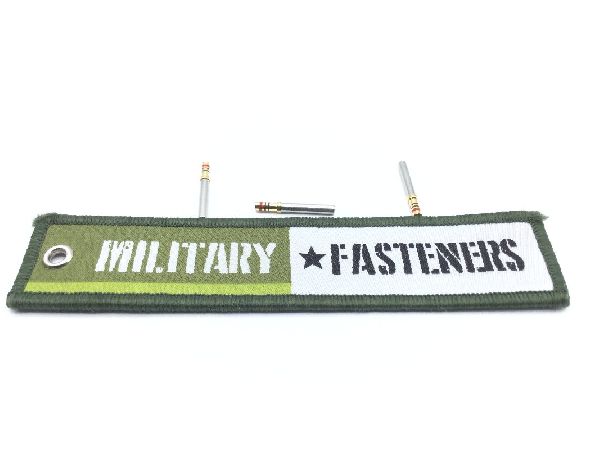

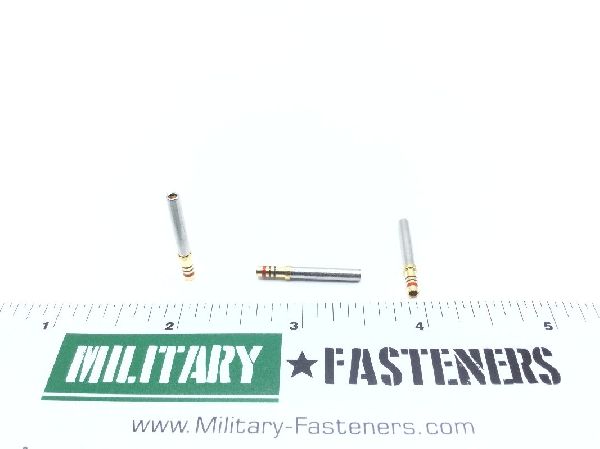

Product Image Gallery
