M39029/30-218

Electrical Contact

email this to someone

Description:

Socket, size 16, fits series: mil-t-5015 series ms3450, mil-c-83733 ser ii, use insertion / removal tool m81969/14-03

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 200 ships same day if ordered before 4pm EST

M39029/30-218 Price:	buy now $1.85 Each
Quantity: Pre-packaged bag qty: 25 ea
* Sold in increments of 25

Add item to quote

M39029/30-218 Datasheet Features and Specification

Identification Code Color:

Red and brown and gray

Overall Length:

1.101 inches nominal

Overall Diameter:

0.101 inches minimum and 0.103 inches maximum

Cable Entrance Diameter:

0.066 inches minimum and 0.068 inches maximum

Pin Accommodation Length:

0.430 inches nominal

Mating Contact Width:

0.065 inches minimum and 0.068 inches maximum

Mounting Method:

Force fit

Material:

Copper alloy body and contact

Precious Material And Location:

Body and contact surface gold

Precious Material And Weight:

0.005 gold grains, troy

Precious Material:

Gold

Surface Treatment:

Gold body and contact

Surface Treatment Specification:

Mil-g-45204 mil spec single treatment response body and contact

Style Designator:

Socket contact

Test Data Document:

81343-sae as39029 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).

Terminal Type And Quantity:

1 crimp axially at one end

Specification Data:

81343 sae as39029/30 professional/industrial association specification

Additional Information

Alternate Part Numbers

M39029-30-218

SKU / Model:	M3902930218
NSN:	5999-01-089-0801
FSC:	Miscellaneous Electrical and Electronic Components / 5999
Product Series:	M39029/30
Pack Weight (Approx.)	0.610 lb
Minimum Qty (MOQ):	25
ECCN:	EAR99
National Motor Freight:	061680, Elec Wiring Plugs Etc
Download PDF Version M39029/30-218_Military-Fasteners-com.pdf

* report an issue on this page

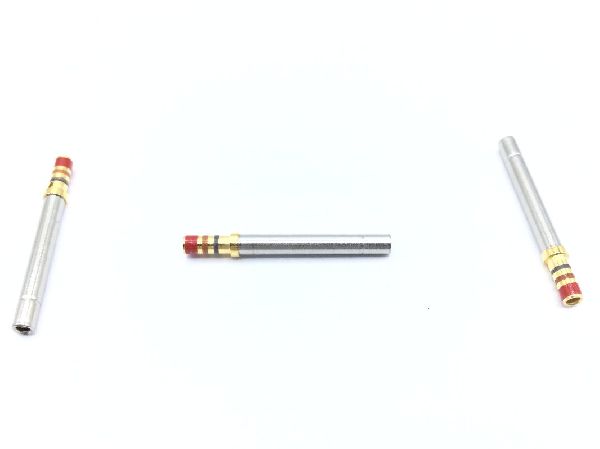

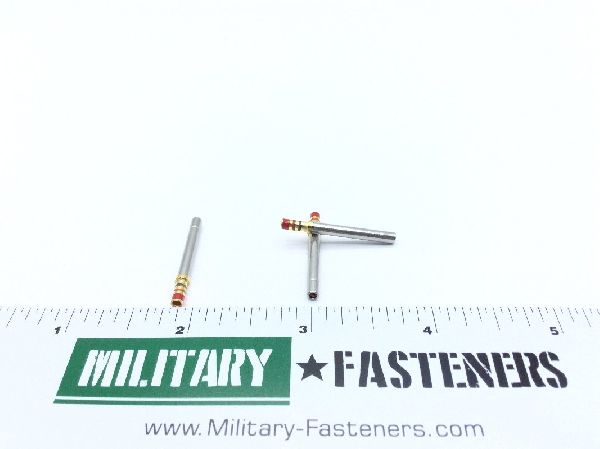

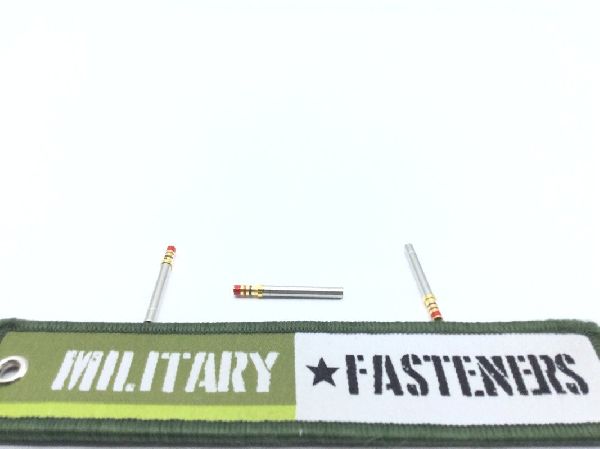

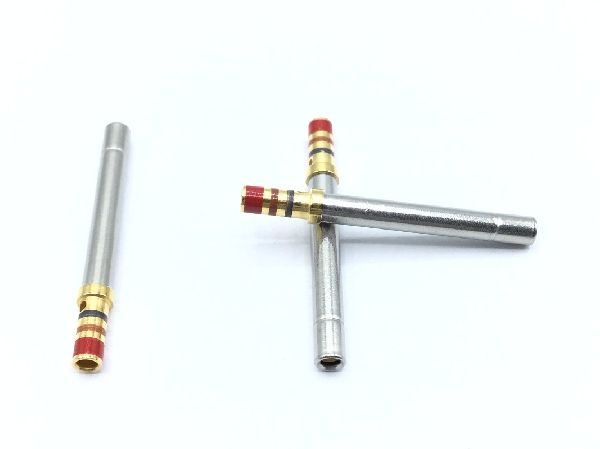

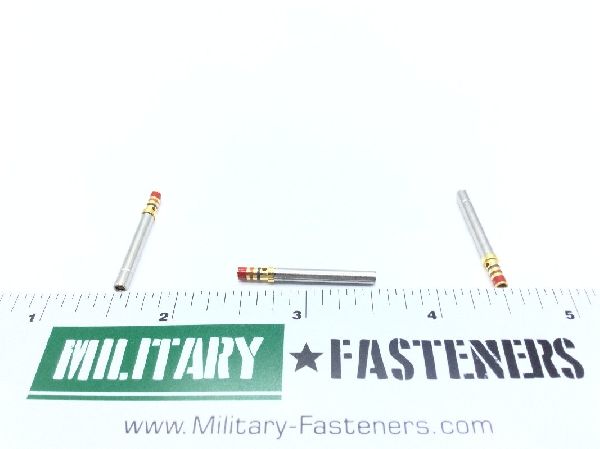

Product Image Gallery

Product code M39029/30-218
