M39029/4-111

Electrical Contact

email this to someone
Description:

Pin, size 16, fits series: mil-c-26482 ser ii, mil-c-81703 ser ii, mil-c-83723 ser i and iii, use insertion / removal tool m81969/14-03

* Manufacturer certifications are shipped with your order FREE of charge
M39029/4-111
M39029/4-111
M39029/4-111
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

M39029/4-111 Datasheet Features and Specification

Overall Length:
0.821 inches maximum
Pin Diameter:
0.062 inches minimum and 0.064 inches maximum
Overall Diameter:
0.130 inches minimum and 0.133 inches maximum
Cable Entrance Diameter:
0.066 inches minimum and 0.068 inches maximum
Retention Groove Diameter:
0.101 inches minimum and 0.103 inches maximum
Pin Length:
0.388 inches nominal
Mounting Method:
Force fit
Special Features:
Basic item identification number bin-111
Material:
Copper alloy contact
Material:
Copper alloy body
Precious Material And Location:
Body and contact surfaces gold
Precious Material And Weight:
0.005 gold grains, troy
Precious Material:
Gold
Surface Treatment:
Gold body
Surface Treatment:
Gold contact
Style Designator:
Pin contact
Test Data Document:
81343-as39029 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Terminal Type And Quantity:
1 crimp and solder axially at one end

Additional Information

Alternate Part Numbers

  • M39029-4-111
SKU / Model: M390294111
NSN: 5999-00-172-8254
FSC: Miscellaneous Electrical and Electronic Components / 5999
Product Series: M39029/4
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 25
ECCN: EAR99
National Motor Freight: 061300, Circuit Breaker / Switch Noi
Download PDF Version
M39029/4-111_Military-Fasteners-com.pdf
Worldwide Shipping

* report an issue on this page

Product Image Gallery

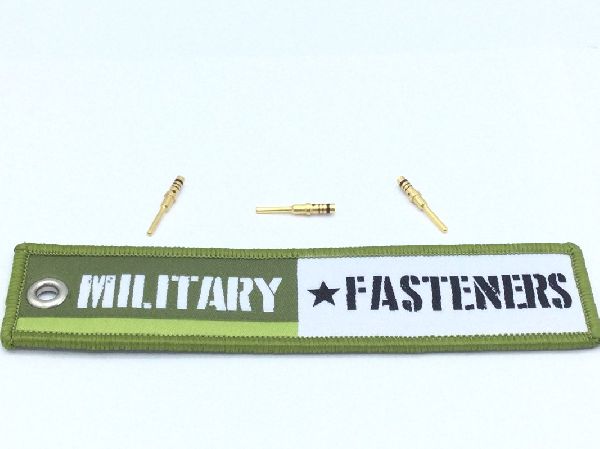

Product code M39029/4-111
