M39029/5-115

Electrical Contact

email this to someone

Description:

size 20, socket, fits series: mil-c-26482, mil-c-81703, mil-c83723, use insertion / removal tool m81969/14-02, M39029 series contact

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 1150 ships same day if ordered before 4pm EST

M39029/5-115 Price:	buy now $0.81 Each
Quantity: Pre-packaged bag qty: 50 ea
* Sold in increments of 50

Add item to quote

M39029/5-115 Datasheet Features and Specification

Cable Entrance Diameter:

Between 0.048 inches and 0.050 inches

Crimping Tool Identifying Number:

M22520/2-01

Identification Code Color:

Brown and brown and green

Material:

Copper alloy body and contact

Mounting Method:

Force fit

Overall Diameter:

Between 0.100 inches and 0.103 inches

Overall Length:

0.675 inches

Pin Accommodation Diameter:

Between 0.042 inches and 0.044 inches

Pin Accommodation Length:

Between 0.330 inches and 0.370 inches

Precious Material:

Gold

Precious Material And Location:

External surfaces gold

Precious Material And Weight:

troy 0.005 gold grains

Special Features:

Basic item identification number bin-115

Style Designator:

Socket contact

Surface Treatment:

Gold body and contact

Terminal Type And Quantity:

1 crimp and solder axially at one end

Quick Specs

Material

Copper

Additional Information

SKU / Model:	M390295115
NSN:	5999-00-172-8253
FSC:	Miscellaneous Electrical and Electronic Components / 5999
Product Series:	M39029/5
Pack Weight (Approx.)	0.036 lb
Minimum Qty (MOQ):	50
Schedule B:	8535.90.8040
ECCN:	EAR99
National Motor Freight:	061300, Circuit Breaker / Switch Noi
Download PDF Version M39029/5-115_Military-Fasteners-com.pdf

* report an issue on this page

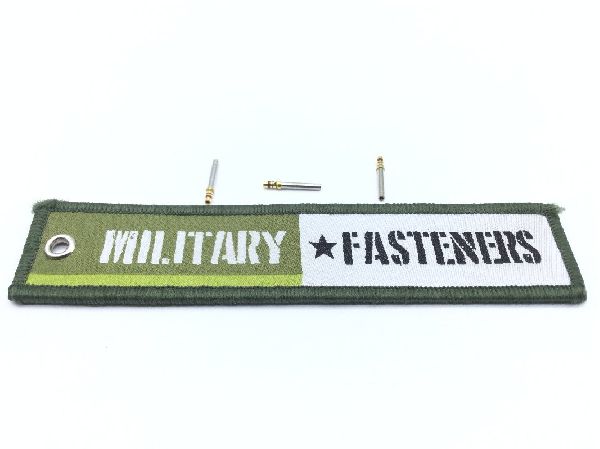

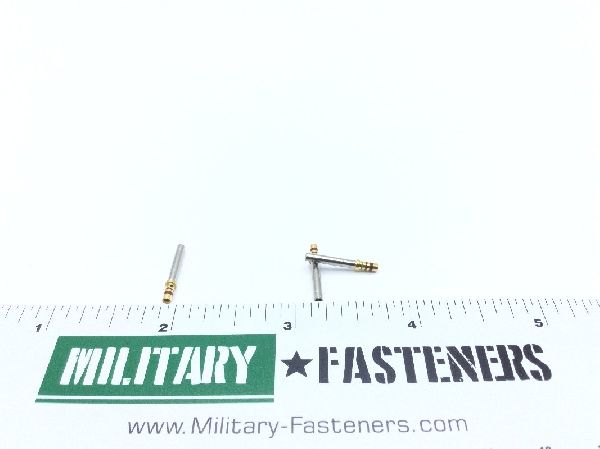

Product Image Gallery

Product code M39029/5-115
