M39029/58-360

Electrical Contact

email this to someone

Description:

size 22, fits series: mil-c-24308, mil-c-38999 ser i-iv, mil-c-55302/69, mil-c-83733, use insertion/removal tool m81969/14-01, M39029 series contact

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 1000 ships same day if ordered before 4pm EST

M39029/58-360 Price:	buy now $0.77 Each
Quantity: Pre-packaged bag qty: 50 ea
* Sold in increments of 50

Add item to quote

M39029/58-360 Datasheet Features and Specification

Specification Data:

81343-as39029/58 government specification

Special Features:

Basic item identification number bin-360

Precious Material And Weight:

Troy 0.005 gold grains

Precious Material And Location:

Body and contact surfaces gold

Precious Material:

Gold

Pin Length:

Between 0.266 inches and 0.267 inches

Pin Diameter:

Between 0.030 inches and 0.305 inches

Overall Length:

0.531 inches

Overall Diameter:

Between 0.060 inches and 0.062 inches

Mounting Method:

Any acceptable

Material:

Copper alloy body

Material:

Copper alloy contact

Identification Code Color:

Orange and blue and black

Crimping Tool Identifying Number:

M22520/2-01

Cable Entrance Diameter:

Between 0.034 inches and 0.036 inches

Style Designator:

Pin contact

Surface Treatment:

Gold body and contact

Surface Treatment Specification:

Mil-g-45204 military specification single treatment response body and contact

Terminal Type And Quantity:

1 crimp axially at one end

Quick Specs

Material

Copper

Additional Information

SKU / Model:	M3902958360
NSN:	5999-00-473-3551
FSC:	Miscellaneous Electrical and Electronic Components / 5999
Product Series:	M39029/58
Pack Weight (Approx.)	0.022 lb
Minimum Qty (MOQ):	50
Schedule B:	8535.90.8040
ECCN:	EAR99
National Motor Freight:	061300, Circuit Breaker / Switch Noi
Download PDF Version M39029/58-360_Military-Fasteners-com.pdf

* report an issue on this page

Frequently bought together

Other customers frequently bought these along with M39029/58-360

M39029/56-348
Electrical Contact
in Electrical

size: 22, socket, fits series: mil-c-38999, use insertion/removal tool m81969/14-01, M39029 series contact

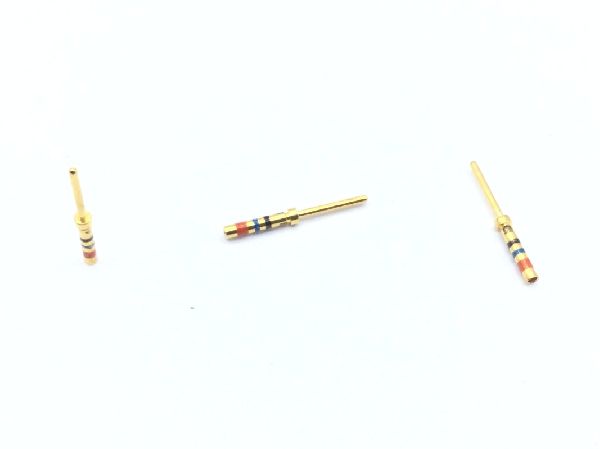

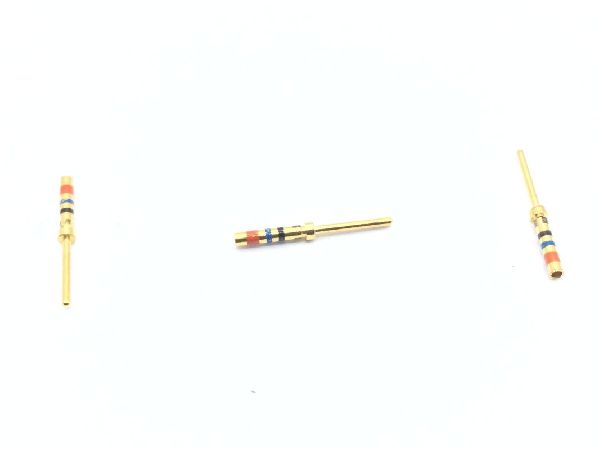

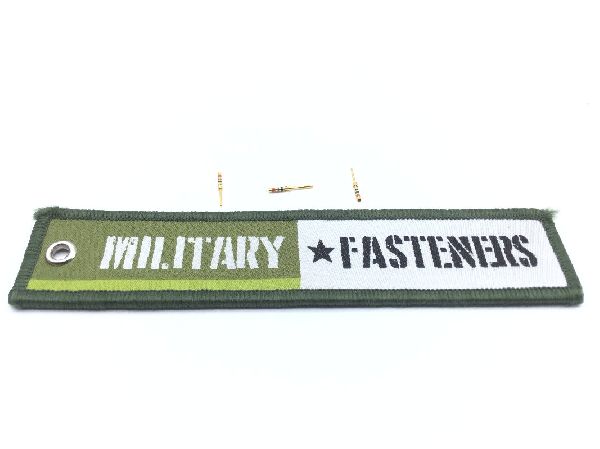

Product Image Gallery
