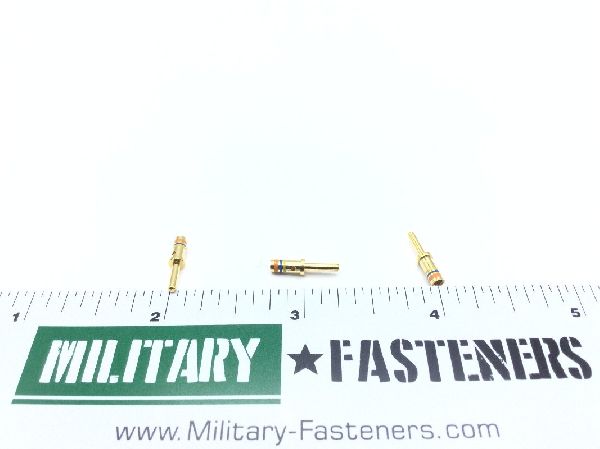

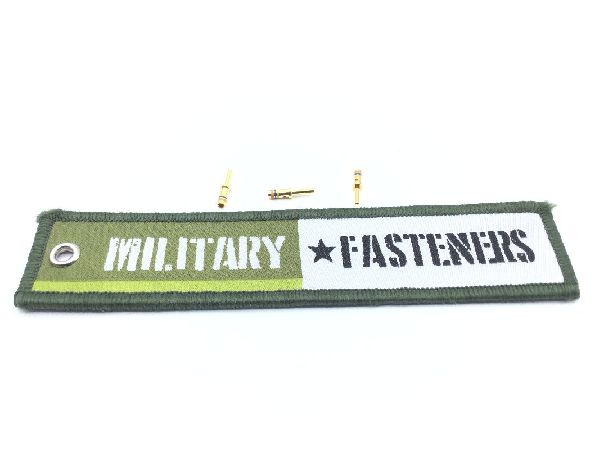

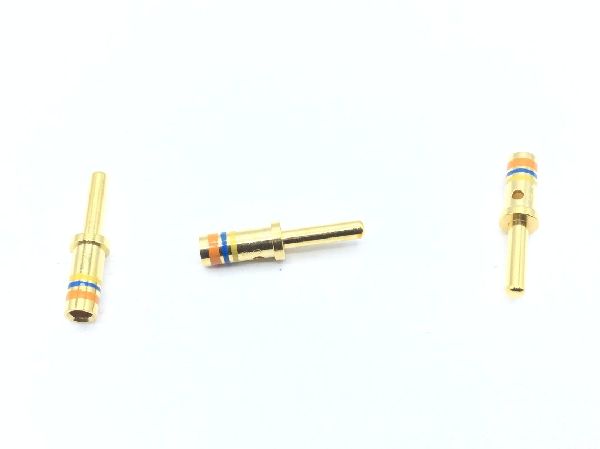

M39029/58-364

Electrical Contact

email this to someone
Description:

pin, size 16, fits series: mil-c-24308, mil-c-38999 ser i-iv, mil-c-55302/69, mil-c-83733, use insertion / removal tool m81969/14-03

* Manufacturer certifications are shipped with your order FREE of charge
M39029/58-364
M39029/58-364
M39029/58-364
M39029/58-364
Add to Cart Up to qty 450 ships same day if ordered before 4pm EST
M39029/58-364 Price:
buy now
$0.79 Each
Quantity:
Pre-packaged bag qty: 50 ea
* Sold in increments of 50
Add item to quote

M39029/58-364 Datasheet Features and Specification

Pin Diameter:
0.062 inches minimum and 0.064 inches maximum
Cable Entrance Diameter:
0.066 inches minimum and 0.068 inches maximum
Pin Length:
0.262 inches minimum and 0.271 inches maximum
Mounting Method:
Any acceptable
Material:
Copper alloy contact
Material:
Copper alloy body
Precious Material:
Gold
Surface Treatment:
Gold body and silver body
Surface Treatment:
Gold contact and silver contact
Surface Treatment:
Gold and silver body
Surface Treatment:
Gold and silver contact
Style Designator:
Pin contact
Test Data Document:
81343-as39029 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Terminal Type And Quantity:
1 crimp axially at one end

Additional Information

SKU / Model: M3902958364
NSN: 5999-00-402-2545
FSC: Miscellaneous Electrical and Electronic Components / 5999
Product Series: M39029/58
Pack Weight (Approx.) 0.431 lb
Minimum Qty (MOQ): 50
ECCN: EAR99
National Motor Freight: 061680, Elec Wiring Plugs Etc
Download PDF Version
M39029/58-364_Military-Fasteners-com.pdf
