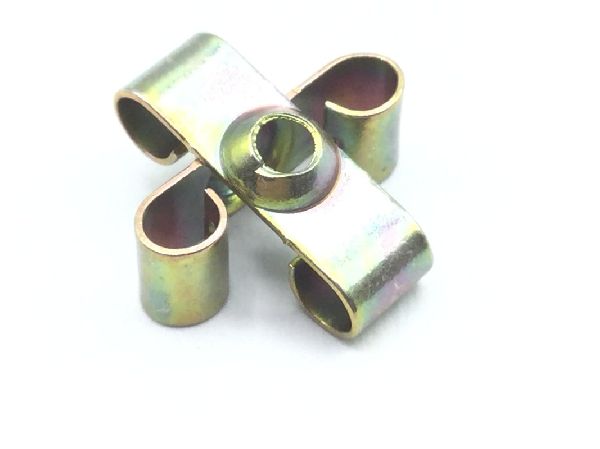

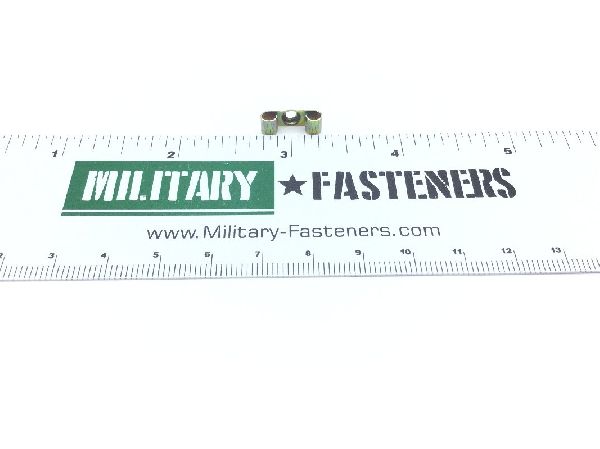

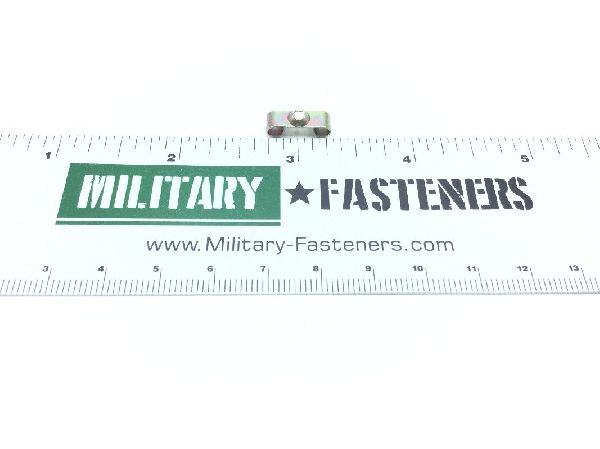

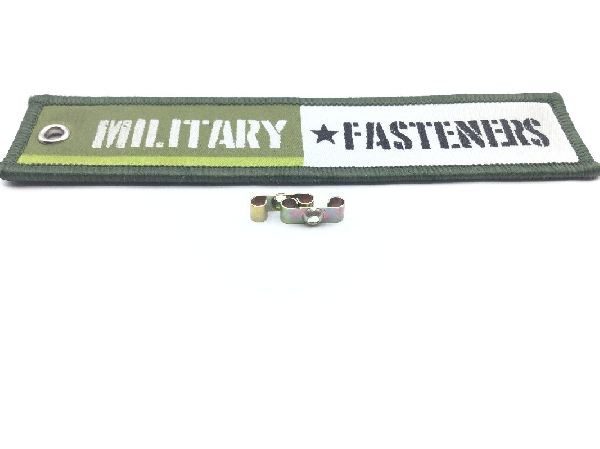

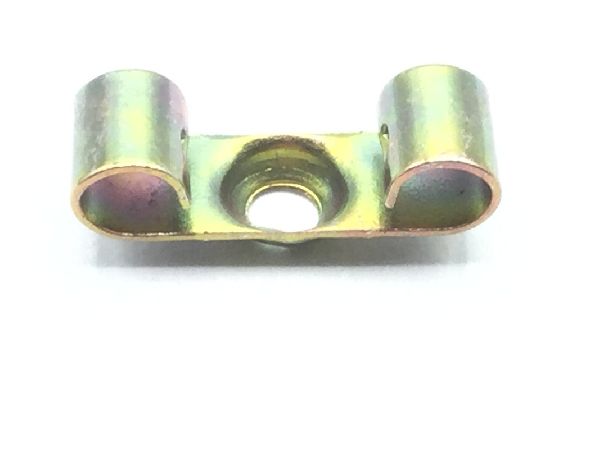

M24308/25-9F

Electrical Retainer Connector

email this to someone
Description:

one screw mount, cadmium, male, M24308 series screw

* Manufacturer certifications are shipped with your order FREE of charge
M24308/25-9F
M24308/25-9F
M24308/25-9F
M24308/25-9F
M24308/25-9F
M24308/25-9F
Add to Cart Up to qty 400 ships same day if ordered before 4pm EST
M24308/25-9F Price:
buy now
$1.98 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

M24308/25-9F Datasheet Features and Specification

Surface Treatment Specification:
Qq-p-416 federal specification all treatment responses
Surface Treatment:
Cadmium and chromate
Style Designator:
Irregular
Specification Data:
81349-mil-c-24308/25 government specification
Overall Width:
Between 0.271 inches and 0.291 inches
Overall Length:
Between 0.540 inches and 0.570 inches
Overall Height:
Between 0.173 inches and 0.203 inches
Mounting Facility Type And Quantity:
1 screw single mounting facility
Iii Material:
Steel
Accommodated Item Securing Device Type:
Spring clip
Test Data Document:
Etc.).
Thread Class:
2a single mounting facility
Thread Series Designator:
Unc (coarse thread) single mounting facility
Thread Size:
0.112 inches single mounting facility
Quick Specs
Thread Series UNC
Thread Class 2A

Additional Information

SKU / Model: M24308259F
NSN: 5935-01-179-3497
FSC: Connectors, Electrical / 5935
Product Series: M24308/25
Pack Weight (Approx.) 0.563 lb
Minimum Qty (MOQ): 25
Schedule B: 7318.15.9000
ECCN: EAR99
National Motor Freight: 061680, Elec Wiring Plugs Etc
Download PDF Version
M24308/25-9F_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!
