M81714/11-22D
Quick Disconnect Splice Set
email this to someone
Description:
* Manufacturer certifications are shipped with your order
FREE of charge
sectional, wire in-line junctions, single, series i, contact part number: m39029/1-100, installation / removal tool: m81969/14-02
Add to Cart
Up to qty 20 ships same day if ordered before 4pm EST
Add item to quote
M81714/11-22D Datasheet Features and Specification
Overall Length:
1.552 inches
Quick Disconnect Style:
Plug coupler
Major Plug Diameter Accommodated:
0.062 inches
Maximum Conductor Size Accommodated:
22 awg
Electrical Insulation Feature:
Insulating sleeve
Identification Code Color:
Blue
Basic Shape Style:
Three piece
Conductor Accommodation Type:
Straight barrel all ends
Material:
Copper alloy overall except insulation
Material:
Plastic insulation and silicon insulation
Precious Material And Location:
Coupler ext surf. gold
Precious Material And Weight:
0.040 gold grains, troy
Precious Material:
Gold
Surface Treatment:
Gold overall except insulation single layer
Additional Information
Alternate Part Numbers
- M81714-11-22D
| SKU / Model: | M817141122D |
| NSN: | 5940-01-243-6749 |
| FSC: | Lugs, Terminals, and Terminal Strips / 5940 |
| Product Series: | M81714/11 |
| Pack Weight (Approx.) | 0.000 lb |
| Minimum Qty (MOQ): | 1 |
| ECCN: | EAR99 |
| National Motor Freight: | 061680, Elec Wiring Plugs Etc |
|
Download PDF Version M81714/11-22D_Military-Fasteners-com.pdf |
|
|
|
* report an issue on this page

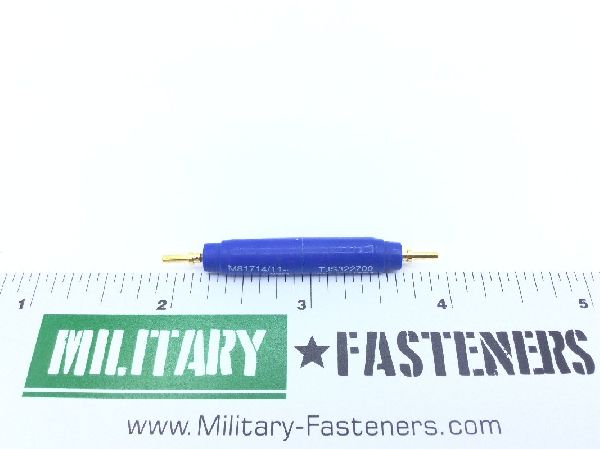

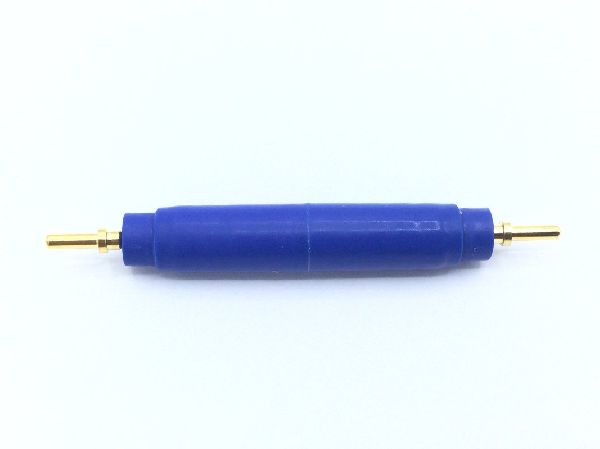

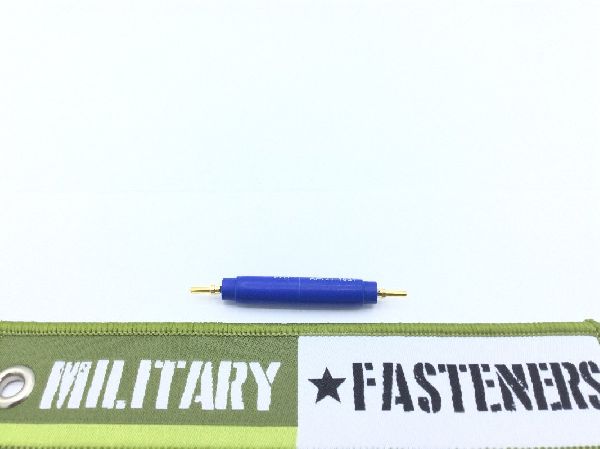

Product Image Gallery
Product code M81714/11-22D
