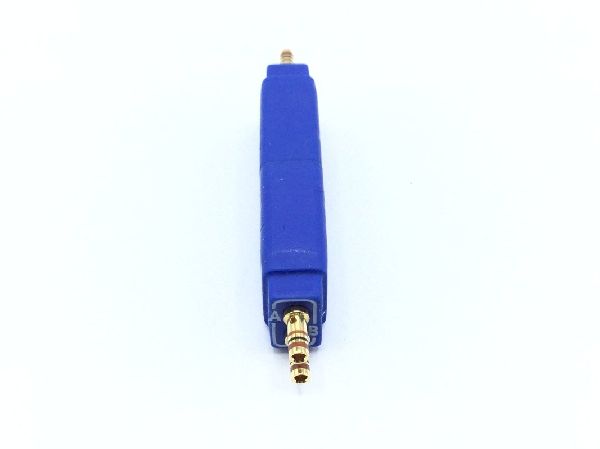

M81714/12-20D-1

Quick Disconnect Splice Set

email this to someone
Description:

Sectional, wire in-line junctions, double, series i, contact part number: m39029/1-101, installation / removal tool: m81969/14-02

* Manufacturer certifications are shipped with your order FREE of charge
M81714/12-20D-1
M81714/12-20D-1
M81714/12-20D-1
M81714/12-20D-1
M81714/12-20D-1
M81714/12-20D-1
M81714/12-20D-1
Add to Quote We are currently out of stock of this item. Click the button below to add this item to a quote and receive up to date pricing and availability by email.

Add to Quote

M81714/12-20D-1 Datasheet Features and Specification

Basic Shape Style:
Three piece
Conductor Accommodation Type:
Straight barrel all ends
Criticality Code Justification:
Feat
Electrical Insulation Feature:
Insulating sleeve
Identification Code Color:
Blue
Major Plug Diameter Accommodated:
0.062 inches
Material:
Copper alloy except insulation
Material:
Plastic insulation and silicon insulation
Maximum Conductor Size Accommodated:
20 awg
Overall Length:
1.552 inches
Precious Material:
Gold
Precious Material And Location:
Contacts ext surf. gold
Precious Material And Weight:
Troy 0.040 gold grains
Quick Disconnect Style:
Plug coupler
Special Features:
Bussed double set
Surface Treatment:
Gold except insulation single layer
Quick Specs
Material Copper

Additional Information

Alternate Part Numbers

  • M81714-12-20D-1
SKU / Model: M817141220D1
NSN: 5940-01-243-9865
FSC: Lugs, Terminals, and Terminal Strips / 5940
Product Series: M81714/12
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 1
ECCN: EAR99
National Motor Freight: 063330, Electrical Terminal / Terminal Blocks
Download PDF Version
M81714/12-20D-1_Military-Fasteners-com.pdf
