M45913/1-10FG5C

Locking Hexagon Nut Self

email this to someone

Description:

dry film lubricant, 250 degree temperature, steel

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 975 ships same day if ordered before 4pm EST

M45913/1-10FG5C Price:	buy now $1.46 Each
Quantity: Pre-packaged bag qty: 25 ea
* Sold in increments of 25

Add item to quote

M45913/1-10FG5C Datasheet Features and Specification

Tempurature Rating:

250 degrees fahrenheit

Surface Type:

Chamfered or washer faced

Surface Treatment Specification:

Class 2 or 3 federal specification single treatment response except insert type 2 qq-p-416

Surface Treatment:

Cadmium except insert and chromate

Surface Finish:

125 microinches

Nut Style:

Hexagon

Nut Height:

Between 0.735 inches and 0.765 inches

Material:

Steel

Material Specification:

Gr 5 assn standard single material response nut sae j995

Material:

Plastic polyamide locking insert

Lubrication:

Dry film lubricant

Locking Feature:

Prevailing torque with nonmetallic insert

Thread Class:

Thread Direction:

Right-hand

Thread Qty Per Inch (tpi):

Thread Series:

Unf (fine thread)

Thread Size:

0.625 inches

Width Across Flats:

Between 0.922 inches and 0.940 inches

Quick Specs

Thread Series	UNF
Thread Class	2B
Material	Plastic

Additional Information

SKU / Model:	M45913110FG5C
NSN:	5310-00-225-6408
FSC:	Nuts and Washers / 5310
Product Series:	M45913/1-10FG
Pack Weight (Approx.)	0.000 lb
Minimum Qty (MOQ):	25
ECCN:	EAR99
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version M45913/1-10FG5C_Military-Fasteners-com.pdf

* report an issue on this page

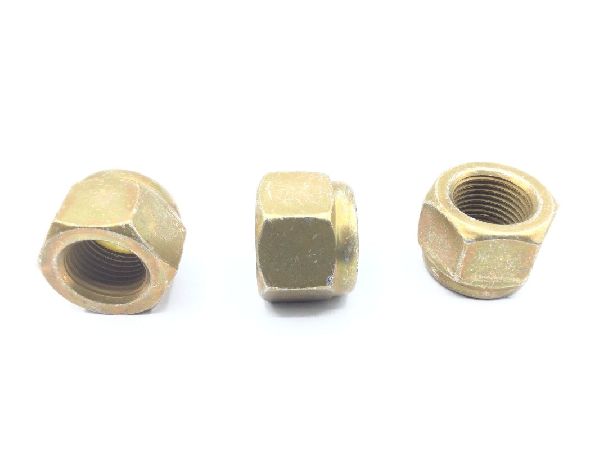

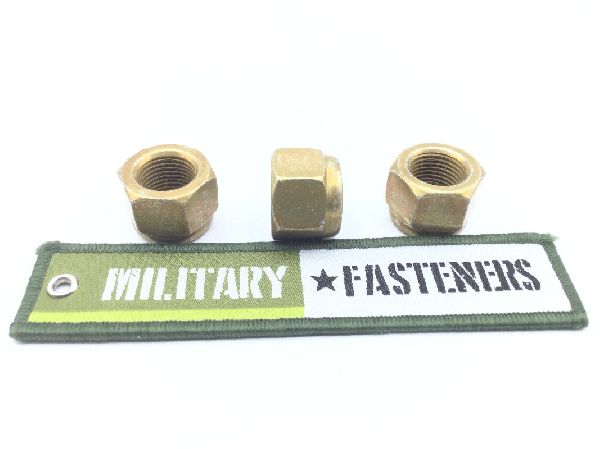

Product Image Gallery
