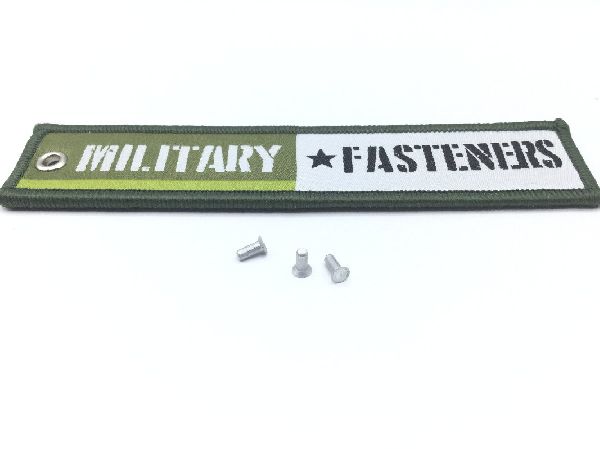

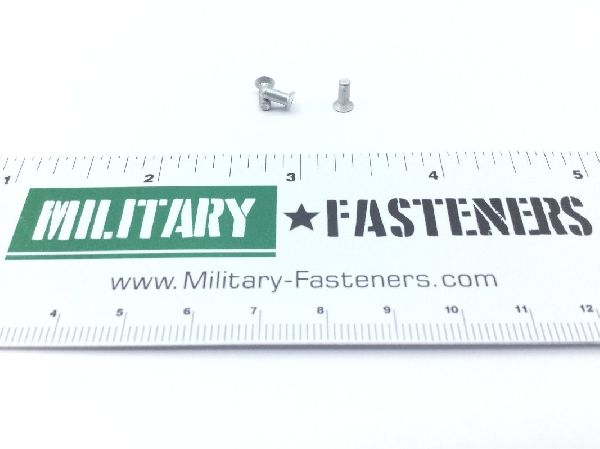

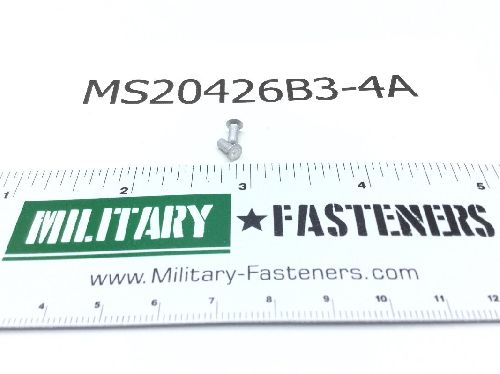

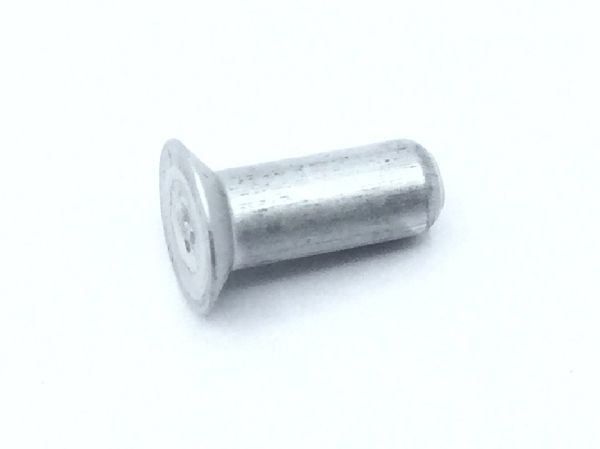

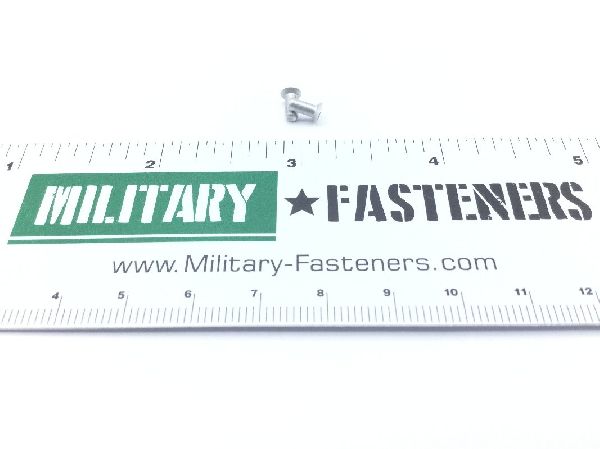

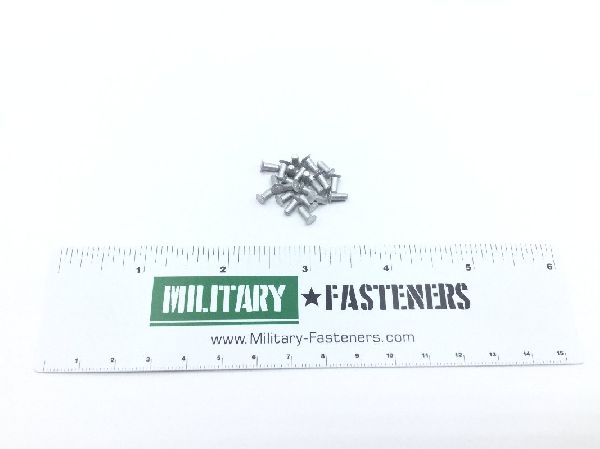

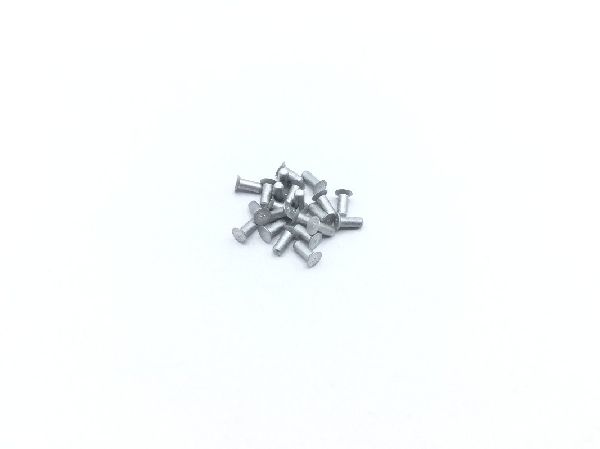

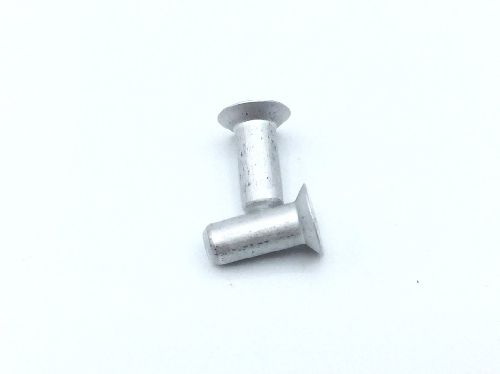

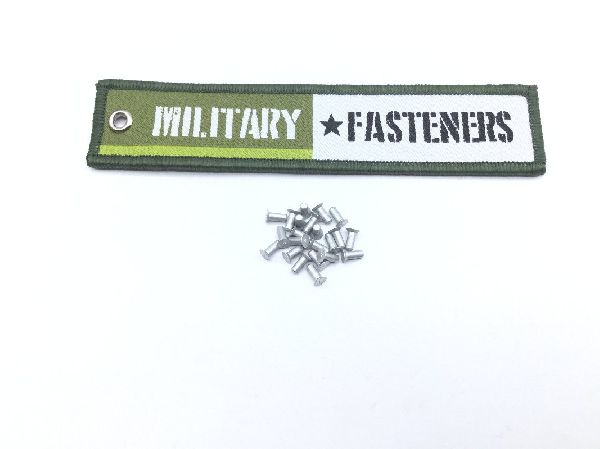

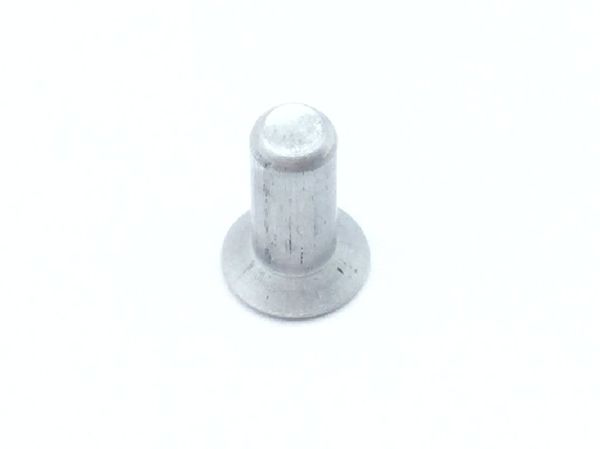

MS20426B3-4A

Military Standard Solid Rivet

email this to someone
Description:

Fastener Length: 1/4", roughly 5000 pieces per pound

* Manufacturer certifications are shipped with your order FREE of charge
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
MS20426B3-4A
Add to Cart Up to qty 5000 ships same day if ordered before 4pm EST
MS20426B3-4A Price:
buy now
$0.02 Each
Quantity:
Pre-packaged bag qty: 2500 ea
* Sold in increments of 2500
Add item to quote

MS20426B3-4A Datasheet Features and Specification

Fastener Length:
0.240 inches minimum and 0.260 inches maximum
Head Style:
Flush (flat) countersunk (included angle - less than 135 deg w or w/o chamfer)
Shank Diameter:
0.093 inches minimum and 0.097 inches maximum
Shank Style:
Straight w/radius chamfered tip
Head Major Diameter:
0.175 inches minimum and 0.183 inches maximum
Grip Length:
0.099 inches minimum and 0.119 inches maximum
Shear Strength:
24000 single pounds per square inch
Countersink Angle:
99.5 degrees minimum and 100.5 degrees maximum
Material:
Aluminum alloy 5056 overall
Material Specification:
Qq-a-430 fed spec single material response overall
Surface Treatment:
Anodize overall

Additional Information

SKU / Model: MS20426B34A
NSN: 5320-01-542-3355
FSC: Rivets / 5320
Product Series: MS20426B3
Pack Weight (Approx.) 0.424 lb
Minimum Qty (MOQ): 2500
Schedule B: 7616.10.3000
ECCN: 9A991
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
MS20426B3-4A_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!
