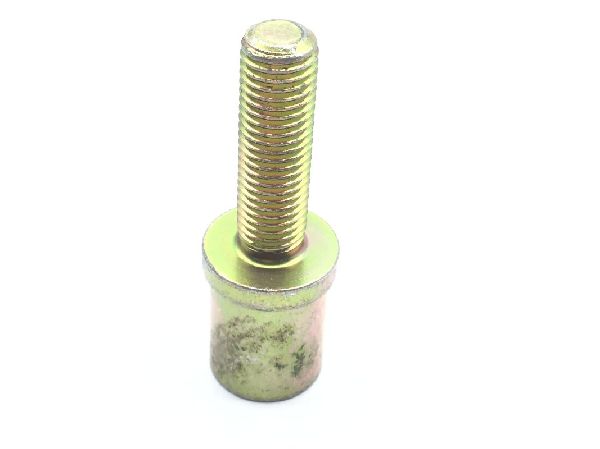

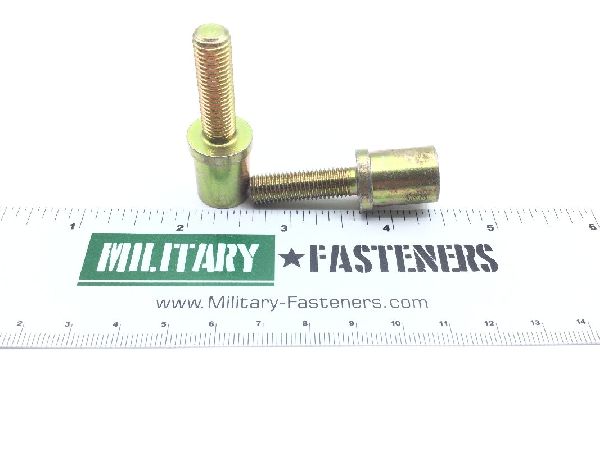

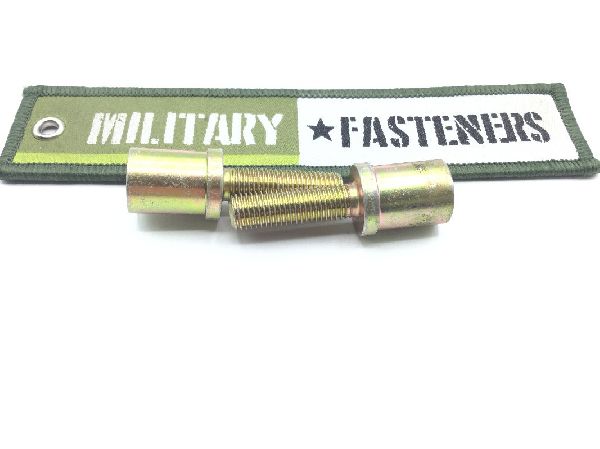

AN490HT10P

Aeronautical Standard Threaded Rod End

email this to someone
Description:

Thread Size: 3/8", Length: 1-3/4", Thread Length: 1

* Manufacturer certifications are shipped with your order FREE of charge
AN490HT10P
AN490HT10P
AN490HT10P
AN490HT10P
Add to Cart Up to qty 20 ships same day if ordered before 4pm EST
AN490HT10P Price:
buy now
$35.96 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

AN490HT10P Datasheet Features and Specification

Thread Class:
3a overall
Thread Direction:
Right-hand overall
Thread Length:
1.000 inches nominal rod connection
Overall Length:
1.802 inches minimum and 1.822 inches maximum
Flange Diameter:
0.625 inches nominal
Unthreaded End Length:
0.624 inches nominal
Metallic Hardness Rating:
25.0 minimum rockwell c and 30.0 maximum rockwell c
Flange Width:
0.126 inches nominal
Unthreaded End Outside Diameter:
0.553 inches minimum and 0.555 inches maximum
Unthreaded End Inside Diameter:
0.359 inches minimum and 0.391 inches maximum
Thread Size:
0.3125 inches rod connection
Material:
Steel comp 4130 overall
Material Specification:
Mil-s-6758 mil spec single material response overall
Surface Treatment:
Cadmium overall
Surface Treatment Specification:
Qq-p-416,type 2,class 2 fed spec single treatment response overall
Style Designator:
External thread, flanged, tubular end
Thread Series Designator:
Unf rod connection

Additional Information

SKU / Model: AN490HT10P
NSN: 5340-00-093-8828
FSC: Hardware, Commercial / 5340
Product Series: AN490HT
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
Schedule B: 7228.40.0000
ECCN: 9A991
National Motor Freight: 095190, Hardware, Noi
Download PDF Version
AN490HT10P_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!
