MS51959-18

Military Standard Machine Screw

email this to someone

Description:

Fastener Length: 5/8", Thread: 4-40, Thread Length: 5/8

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 3700 ships same day if ordered before 4pm EST

MS51959-18 Price:	buy now $0.29 Each
Quantity: Pre-packaged bag qty: 100 ea
* Sold in increments of 100

Add item to quote

MS51959-18 Datasheet Features and Specification

Thread Class:

Thread Direction:

Right-hand

Thread Length:

0.575 inches minimum and 0.625 inches maximum

Fastener Length:

0.625 inches nominal

Head Style:

Flat countersunk

Head Diameter:

0.195 inches minimum and 0.225 inches maximum

Internal Drive Style:

Cross recess type 1

Thread Diameter:

0.112 inches

Thready Qty Per Inch (tpi):

Min. Tensile Strength (psi):

80000 pounds per square inch

Countersink Angle:

80.0 degrees minimum and 82.0 degrees maximum

Screw Material:

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Screw Material Specification:

66 fed std all material responses

Screw Surface Treatment:

Passivate

Screw Surface Treatment Specification:

Qq-p-35 fed spec single treatment response

Thread Series Designator:

Unc

Quick Specs

Thread Size	4
Thread Qty	40
Material	Steel
Length	5/8

Additional Information

SKU / Model:	MS5195918
NSN:	5305-00-763-7827
FSC:	Screws / 5305
Product Series:	MS51959
Pack Weight (Approx.)	0.144 lb
Minimum Qty (MOQ):	100
Schedule B:	7318.15.6080
ECCN:	EAR99
National Motor Freight:	093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version MS51959-18_Military-Fasteners-com.pdf

* report an issue on this page

Frequently bought together

Other customers frequently bought these along with MS51959-18

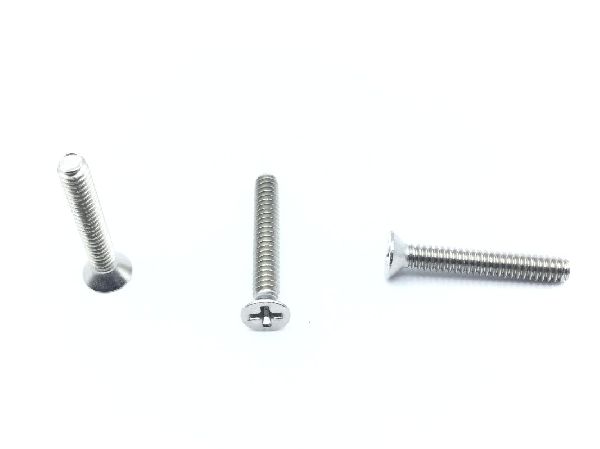

MS51959-19
